| Model: | iPF825 |
|---|---|
| Brand: | Canon |
| Origin: | Made In Japan |
| Category: | Computers & AV Digital / Computer Accessories / Printer |
| Label: | Large format printer , iPF825 , Inkjet Printer |
| Price: |
US $10500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:11 Jan, 2024 |

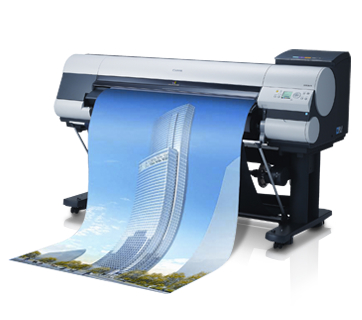

imagePROGRAF iPF815 / 825
Brilliant…enhanced CAD features for large-scale design
Print smart with the imagePROGRAF iPF815 / 825, which delivers 2400 x 1200dpi resolution. Auto paper switching, a high-capacity media basket and ink/paper detection features bring optimal results.
| Print Head | PF-03 | |
| Technology | FINE (Photolithography Inkjet Nozzle Engineering) | |
| Print Resolution (Max.) | 2400 x 1200dpi | |
| Line Accuracy | ±0.1% or Less | |
| Minimum line Weight | 0.02mm | |
| Number of Nozzles | Matte Black: | 5,120 Nozzles |
| Other Colours: | 2,560 Nozzles per Colour | |
| Droplet Size | 4 Picoliter | |
| Nozzle Pitch (Head Resolution) | 1200dpi x Two Rows | |
| Print Head Swath | 1.07in. | |
| Ink Tank | ||
| Ink Type | Dye: | Cyan (C), Magenta (M), Yellow (Y), Black (K) |
| Pigment: | Matte Black (MBK) | |
| Model | PFI-303 / PFI-703 | |
| Ink Capacity | 330ml / 700ml | |
| Number of Colours | 5 | |
| Ink Supply Method | Tubing system (independent ink tanks) | |
| Nozzle Recovery System | Non-firing Nozzle Detection and Compensation | |
| Printer Controller | L-COA Controller | |
| Hard Disk | 2.5-inch, 160GB, 5400rpm, S-ATA interface | |
| Memory | 32GB (Physical DRAM: 384MB) | |
| Media feed | Front-loading, Front-Output (1 roll – iPF815, 2 rolls – iPF825) | |
| Media Width | ||
| Roll Feed | 254mm - 1118mm | |
| Cutsheet | 203mm - 1118mm | |
| Media size | ||
| Cutsheet | ISO - A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0, DIN - C4, C3, C2, C1, C0, JIS - B4, B3, B2, B1, B0, ANSI - 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 ｘ 40", 34 ｘ 44", ARCH - 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 ｘ 38", 27 x 39", 30 x 42", 36 x 48", Photo - 20 x 24", 18 x 22", 14 x 17", 12 x 16", 10 x 12", 10 x 15", 8 x 10", 16 x 20"(US Photo size), Poster - 20 x 30", 30 x 40", 42 x 60", 44 x 62", 300 x 900mm, Others - 13 x 22" | |
| Roll paper (width) | ISO - A3, A2, A1, A0, JIS - B2, B1, B0, ARCH - 24", 30", 36", Others - 10", 14", 16", 17", 42", 44" | |
| Printable Margins | ||
| Roll Feed | All Sides: | 3mm or 0mm for Borderless |
| Manual Feed | Left, Right, Top: | 3mm |
| Bottom: | 23mm | |
| Minimum Printable Media length | 8.0" (203mm) | |
| Maximum Print length | ||
| Roll Feed | 59" (18m) | |
| Manual Feed (Front) | 5.2" (1.6m) | |
| Media Cutter | Automatic horizontal cutting (Rotary cutter), independent unit | |
| Media Thickness | ||
| Front-loading Manual Feed | 0.07 - 0.8mm | |
| Roll Feed | 0.07 - 0.8mm | |
| Media Core Sizes | Internal diameter of roll core: | 2" / 3" |
| Maximum Roll Outer Diameter | 150mm | |
| Software | ||
| Printing Software | imagePROGRAF Printer Driver 2008, HDI Driver for AutoCAD / AutoCAD,
LT 2000 - 2008, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function) |
|
| Utilities | Media Configuration Tool | |
| Applications | GARO Device Setup Utility, Poster Artist 2008 (optional) | |
| Device Status | GARO Status Monitor, Remote UI | |
| Printer language | GARO (Graphic Arts language with Raster Operations), HP- GL/2, HP RTL | |
| Operating Systems | Windows 2000 / XP / Windows Vista Macintosh OS 9 / 10 (PowerPC or Intel) | |
| Interface | ||
| Standard (Built-in) | USB 2.0 Hi-Speed, 10 / 100Base-T / TX | |
| Optional | IEEE1394 (FireWire) | |
| Acoustic noise | ||
| Operation | 52dB (A) or Less | |
| Standby | 35dB (A) or Less | |
| Acoustic Power | 6.8 Bels or Less | |
| Power Supply | AC 100 - 240V (50 - 60Hz) | |
| Power Consumption | ||
| Maximum | 190W or Less | |
| Standby (100 - 120V) | 5W or Less (10W or less when IEEE1394 is mounted) | |
| Standby (220 - 240V) | 6W or Less (11W or less when IEEE1394 is mounted) | |
| Power Off | 1W or Less (Executive Order Compliant) | |
| Certifications | ENERGY STAR (WW), RoHS Directive, IT ECO Declaration (Europe), WEEE, Executive Order of the President of the United States of America, China RoHS directive | |
| Operational Environment | ||
| Temperature | 15 - 30°C | |
| Relative Humidity | 10 - 80% (No Condensation) | |
| Dimensions (H x W x D) | iPF815 - 1,893 x 975 x 1,144mm (with Printer Stand)
iPF825 – 1,893 x 1,291 x 1,144mm (with Printer Stand) |
|
| Weight (with Stand) | iPF815 - Approx. 138kg
iPF825 – Approx. 189kg |
|
| Options | IEEE1394 Expansion Board (EB-05)
Roll Holder Set (RH2-44) Media Take-up Unit (TU-06) Portable Media Basket (BU-03) PosterArtist 2009 |
|
| User Replaceable Items | Print Head (PF-03)
Ink Tanks (PFI-303 / PFI-703) Maintenance Cartridge (MC -09) |
|
| *1 | For the information of purchasable media, contact your local sales representative. |
| *2 | Maximum printable length varies according to the OS and application. |
Fine lines, vivid colours and high-speed printing; High productivity
For demanding CAD workflows,Economical and efficient;
Easy to use with built in 160Gb HDD
| Payment Terms: | TT/Paypal/West union/LC |
|---|---|
