TES-593 EMF Meter Triaxial Data Logger

Model:TES-593
Brand:TES
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:EMF Meter , TES-593
Price: US $350 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz Member  3rd-Party BizVerifyGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:15 Apr, 2019

Product Description

TES-593 EMF Meter Triaxial Data Logger

Features:

  • 10 MHz to 8.0 GHz frequency range.
  • For isotropic measurements of electromagnetic fields.
  • Non-directional (isotropic ) measurement with three-channel measurement probe.
  • High dynamic range due to three-channel digital results processing.
  • Configurable alarm threshold and memory function.
  • Easy to use
  • High frequency (RF) electromagnetic wave field strength measurement.
  • Mobil phone base station antenna radiation power density measurement.
  • Wireless communication applications (CW , TDMA , GSM , DECT).
  • Wireless LAN (Wi-Fi) detection, installation.
  • Spy camera, wireless bug finder.
  • Cellular/Cordless phone radiation safety level.
  • Microwave oven leakage detection.
  • Personal living environment EMF safety.
  • RF power measurement for transmitters.

    Specification:

    Sensor type

    Electric field (E)

    Frequency range

    10MHz to 8.0 GHz

    Directional characteristic

    Isotropic, 3-dimensional

    Measurement range (CW signal>50MHz)

    38mV/m to 11V/m

    Absolute error(1V/m and 50MHz)

    +/-1.0dB

    Frequency response (taking into account typ. CAL factor)

    +/-1.0dB (50MHz to 1.9 GHz) , +/-2.4dB(1.9GHz to 35GHz)

    Isotropy deviation

    Type. +/-1.0dB f>50 MHz

    Overload limit

    4.2W/m2 (40 V/m)

    Temperature response(0 to 50 )

    +/-1.5dB

    Note

    Unless otherwise stated, all specifications hold under the following assumptions:

    Sinusoidal signals; device in far-field of a source; probe head pointing toward source; ambient temperature +23 +/-3 ;
    relative air humidity 25% to 75%.



    Measurement method

    Digital , triaxial measurement

    Directional characteristic

    Isotropic, triaxial

    Measurement range selection

    One continuous range

    Display resolution

    0.1mV/m, 0.1 A/m, 0.1 W/m2;, 0.001 W/cm2;

    Setting time

    Typically 1s ( 0 to 90% of meas. value)

    Display refresh rate

    Typically 400mS

    Display type

    LCD 4 digit

    Audible alarm

    Buzzer

    Measurement units

    mV/m , V/m , A/m , mA/m , W/m2; , mW/m2; , W/cm2;

    Measurement display value

    Instantaneous measured value, maximum value or average value since power-on.

    Measurement average time (in per-set steps)

    4s to 15 minutes

    Measurement alarm function

    Adjustable threshold with ON/OFF

    Measurement calibration factor CAL

    Adjustable

    Manual data memory and read storage

    99 sets ( only recall by meter )

    Battery

    9V

    Battery life

    >15 hours

    Accessory

    9V battery, carrying case & manual

Edited by Johnny


Product Image

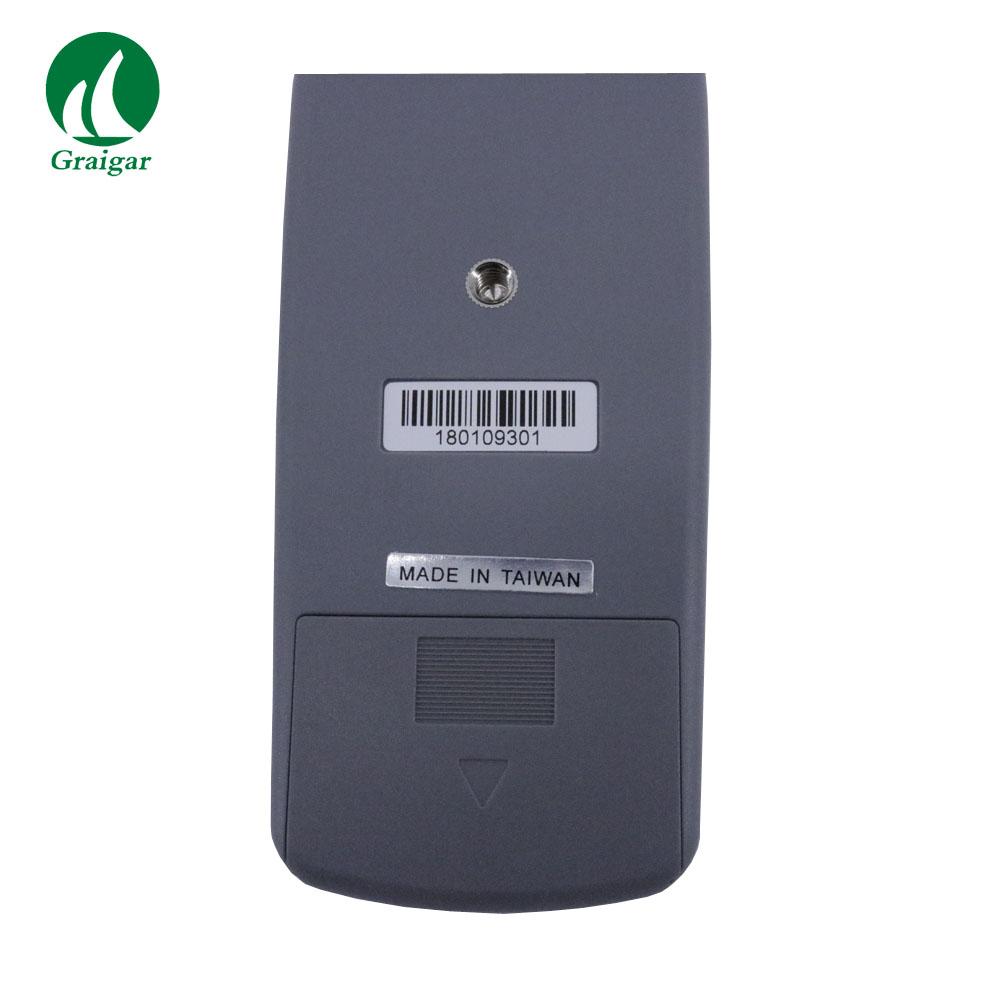

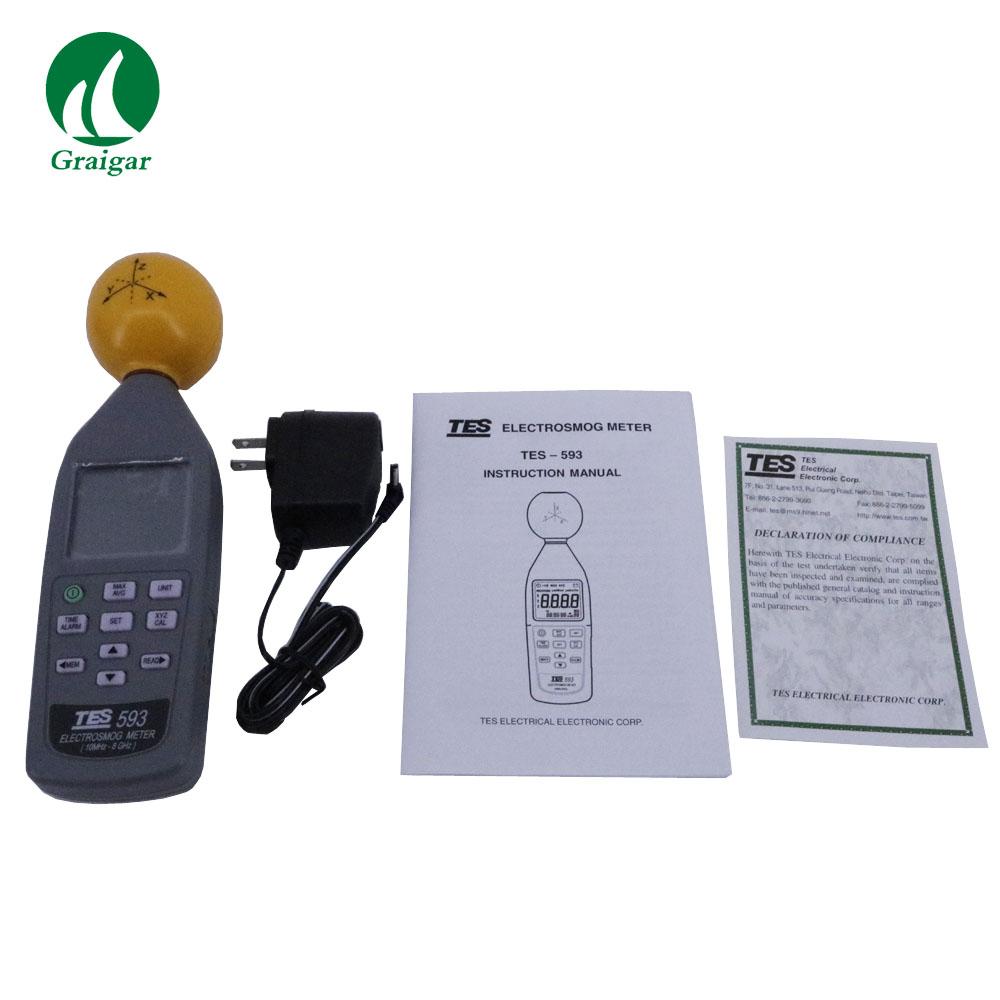

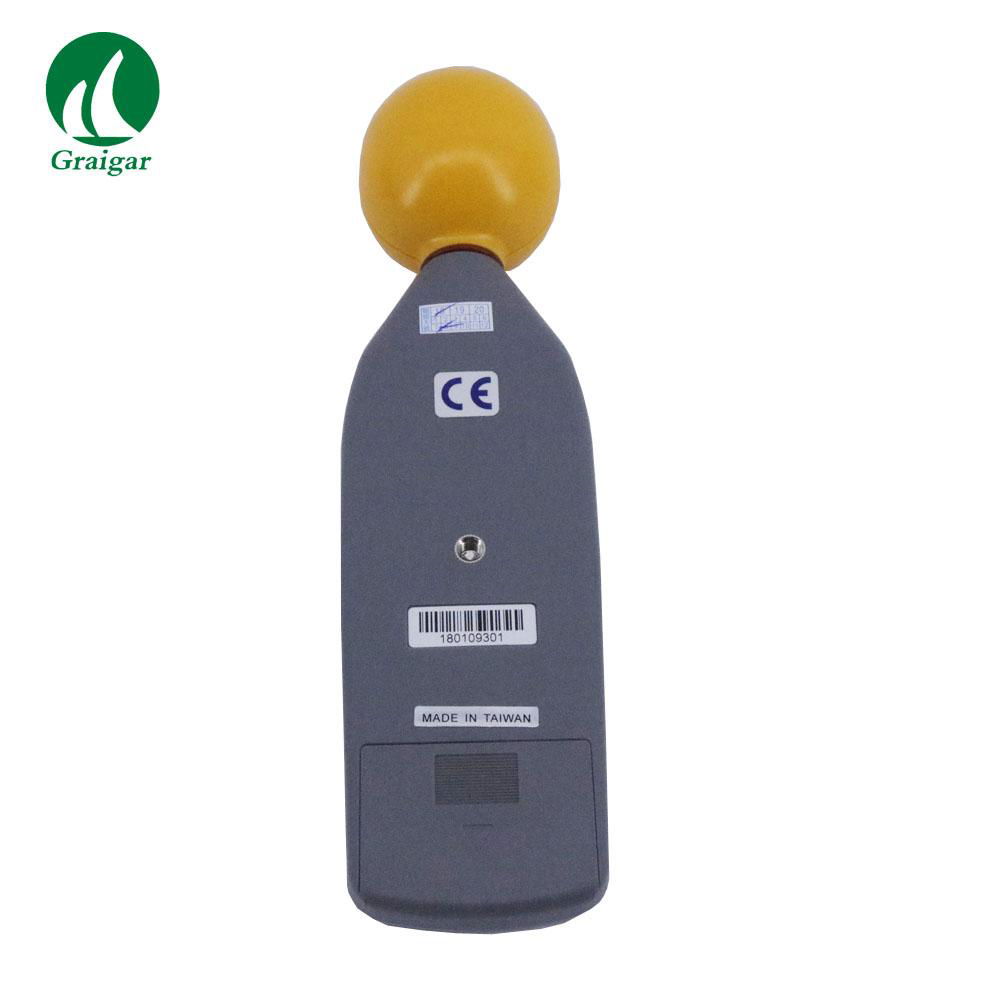

TES-593 EMF Meter Triaxial Data Logger 1
