| Model: | E-AP300-A1 |
|---|---|
| Brand: | n-link |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | AR9341 outdoor ap , high power ap , atheros series ap |
| Price: |
US $50
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:18 Nov, 2014 |
Description
Specially designed a high-power AP/CPE for outdoor wireless coverage project, based on standard IEEE802.11 n, wireless rate of up to 300Mbps; High power, high sensitivity, designed for remote wireless transmission or wireless coverage, industrial design, suitable for high temperature, low temperature, damp outside bad environment; Support POE power supply technology, through the implementation of data transmission and the AP power supply, more convenient for user to networking; Applicable to the residential area, comprehensive office, school, factory wireless coverage and point-to-point transmission over a long distance between, is the ideal choice for wireless project.
Integrating the AP/CPE function: not only can be used as a wireless AP, also can be used as a CPE, more powerful, economical and practical.
Derrick design: the outdoor harsh environment is easy to install, easy to maintain.
The structure design of safe and reliable, windproof, rainproof, dustproof, shockproof multilevel security design, guarantee products and stable operation.
500 mw power: the external power PA and LNA design, transmission distance farther and wider coverage.
PoE power supply: support the local power supply and PoE line power supply mode based on 15V/1.5A
Multiple network mode: gateway, WISP, wireless distribution system (WDS), Bridges.
Complete wireless encryption: WEP, WPA wpa2-psk, connected wpa2-psk, WPA, connected, MAC address authentication and so on a variety of encryption/security Settings.
Features
3) Support data transmission rate is as high as 300 megabits per second, at the same time with the rest of the IEEE802.11 b/g/n compatible wireless devices
4) Good receiving sensitivity and high transmission power, greatly extend the wireless coverage
5) Provide the MAC access control (ACL)
6) Provide a hidden SSID function
7) Provide more SSID functions
8) Through the firmware upgrade of your Web browser
9) Provide a WAN interface, a LAN interface, and support automatic MDI/MDIX
10) Supports automatic adjustment of wireless transmission rate
11) Support 64/128 bit WEP encryption, WPA, connected, WPA - mixed encryption and security mechanism, can ensure the safety of data transmission in wireless network
12) Support the SSID broadcasting control, effectively prevent leakage SSID broadcasting
13) Support web-based configuration
14) Support WMM, let your speech video more fluent
Specification
|
Hardware Specifications |
|
|
Protocol Standard |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; IEEE802.3af/802.3at IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|
Interface Port |
2 10/100Mbps RJ45 port, a DC Power Supply port |
|
Button |
Reset Back to factory default |
|
LED(Green) |
Power / LAN / WLAN/WAN |
|
Antenna |

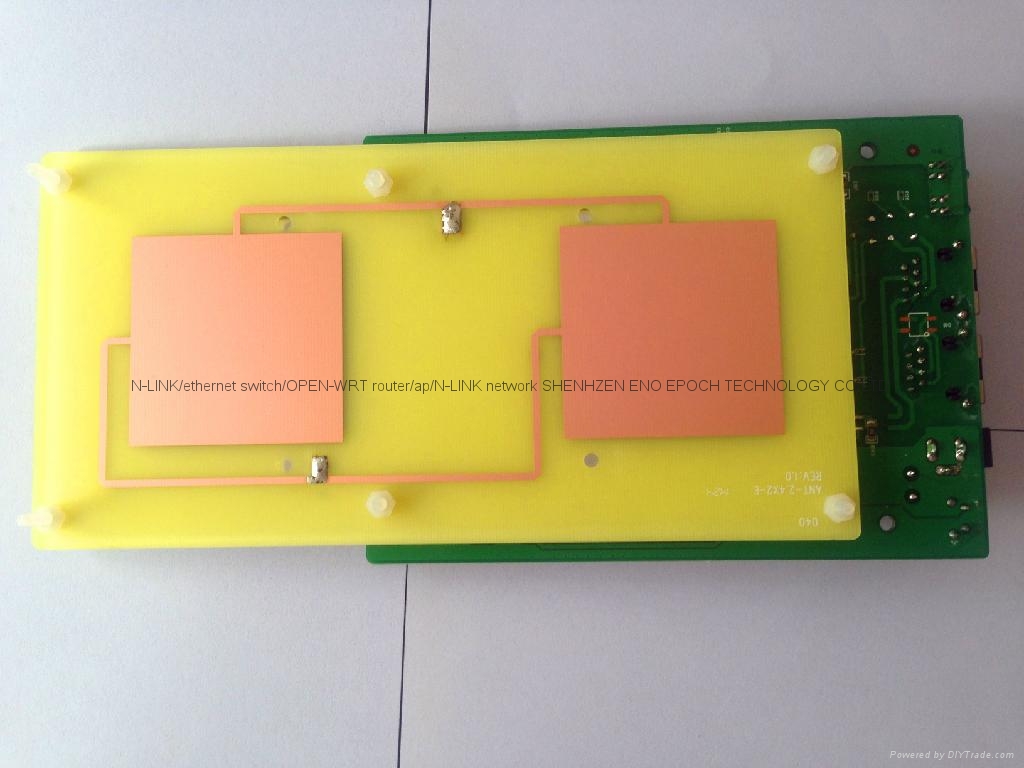

Built-in 8 db directional antenna |
|
Power Supply |
Input : DC 12V/1A PoE, 15V/1.5A |
|
Wireless specifications |
|
|
Basic Function |
Wireless ON/OFF SSID broadcast ON/OFF Support 11b only,11g only, 11n only, 11b/g mixed only, 11b/g/n mixed only mode Working channel: 1-13 Band width: 20MHz、40MHz multi SSID configuration multi SSID isolation Hide SSID |
|
Frequency |
2.412----2.4835GHz |
|
Wireless transmission speed |
IEEE 802.11b: 1, 2, 5.5, Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150 Mbps (Typical values) |
|
Transmission Power |
27 dBm (Max.) |
|
Receiving sensitivity (Typical values) |
11n(150M) : -72±2dBm@10% PER 11g (54M): -75 ±2dBm@10% PER 11b (11M): -92 ±2dBm@8% PER |
|
Wireless security |
The wireless MAC access control (ACL) 64/128 WEP encryption WPA-PSK/WPA2-PSK、WPA/WPA2 Mixed WPS(PBC,PIN) 802.1x |
|
Software Specifications |
|
|
WLAN-WiFi |
Can be achieved with WLAN hotspot network connection, the connection is successful, WiFi terminal by WLAN access to the Internet |
|
WAN-WiFi |
With ordinary household router, by connecting cables with WiFi sharing after cable bandwidth |
|
WLAN AP |
1) support the IEEE 802.11 b/g/n agreement; 2) support the 802.11 b/g/n work separately and mixed mode;3) support 13 working channel; 4) WiFi power adjustable; 5) support WDS; 6) support wireless bridge; 7) support multiple SSID. |
|
WLAN access security |
1) supporting configuration SSID; 2) support the SSID hidden; 3) support WEP encryption/WPA/connected; 4) can support the wireless MAC address binding; |
|
Firewall |
1) support the DMZ; 2) support the MAC/IP/Port filter; 3) support URL filtering; |
|
System |
1) support multi-language interface ( English and Chinese) 2) the administrator user name and password; 3) the network time Settings; 4) equipment software upgrade; 5) to restore factory Settings; 6) to restart the router, 7) system logs; |
|
Information management system |
1) the hardware and software version information; 2) network information; (IP address, subnet mask, gateway, DNS address, and the current networking state) 3) the gateway status information; (device's MAC address, IP address, subnet mask over electricity run since the beginning of time) 4) in the network device status information; (WiFi connection terminal, the name of the MAC address of the LAN IP address, the connection time) |
|
System Tools |
Traffic statistics Client list AP software control LED turned on and off work instructions Time zone is set Local WEB management control The configuration file to import and export Web software upgrade |
|
Operating system support |
1) Windows XP/ Vista/ Windows 7 2) Mac OS 3) Android 4) Redhat |
|
Others |
|
|
Dimension |
Product size:26*11*7CM product packaging：18*9*7.5CM |
|
Working Environment |
Working temperature: - 10 ℃ ~ + 55 ℃ Storage temperature: - 20 ℃ to 70 ℃ (4 ° F to 158 ° F) Working humidity: 10% to 90% RH without condensation No condensation storage humidity: 5% to 95% RH |
