DESCRIPTION & APPLICATION

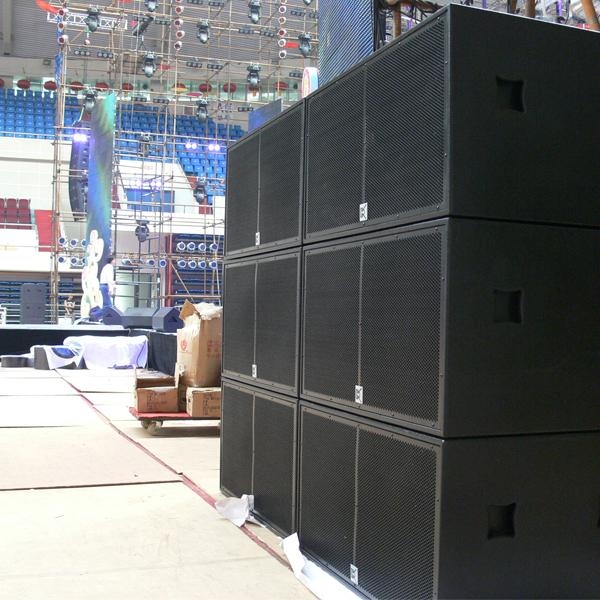

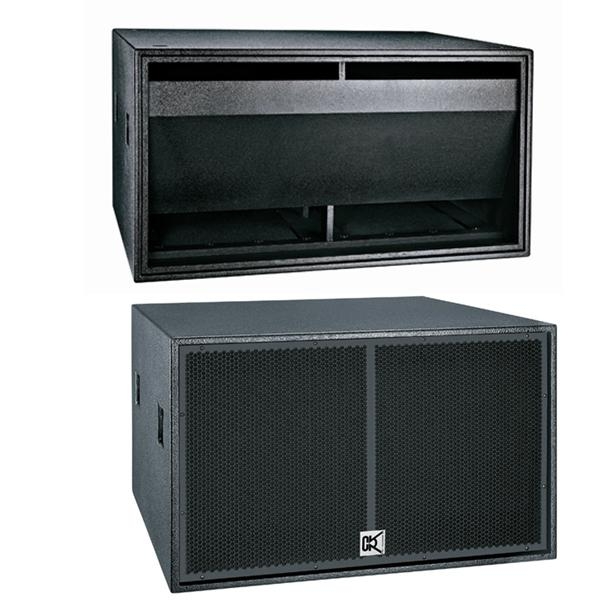

The subwoofer CV-218B is a high performance sub-bass system designed for large scale venues including touring and fixed installations. It features with twin 800 watt 18" (460mm) driver units with magnet structure and suspension engineered for maximum linear excursion. Its twin woofers are housed in bandpass box with bass horn loading to deliver ultra powerful bass energy. The CV-218B  extends low-bass response and high efficiency, which make it an ideal partner for W-series line array systems wherever high power, extended bass is required. It can be ground stacked with W-8/W-6/W-312A line array systems and possesses high output capability with low frequency extension. In addition, CV-218B is ideal for fixed sound installations such as discos, nightclubs, halls, conference centers and commercial events.

TECHNICAL SPECIFICATIONS

Model        CV-218B
Type        Dual-drivers sub-bass system
Frequency Response        30Hz -150Hz 3dB
Power handling        1600W(RMS)3200W(PEAK)
Sensitivity        115dB(1W/1M)
Max/S.P.L        147dB(PEAK/1M)
Components        2X18"(460mm) woofers 125mm(5in)coil
Nominal impedance        4 ohm
Finish        black paint
Speaker cables        1(+)1(-)
Input connectors        2XNL4MP speakon
Dimensions        1138X600X790mm(WXHXD)
Package dimensions        1210X670X860mm/0.7cbm
Enclosure        plywood
Net weight        104kg
Gross weight        110kg
