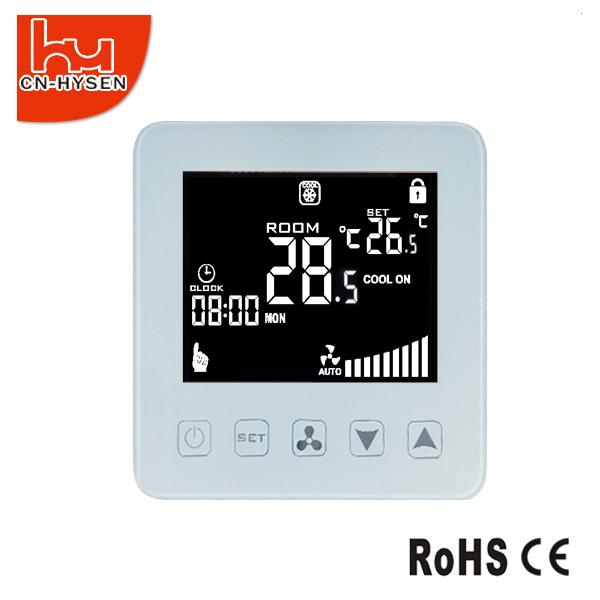

The HL2018 series touchscreen thermostats are luxurious appearance with large LCD display screen. Simple and easy-to-read installation menu on LCD provides interactive interface when user sets up, programs  and  operates.  The thermostats are designed to on/off control the fans, valves or dampers in fan coil units, air-conditioners applications.Models are available for heating/cooling/ventilating control of 2-pipe or 4-pipe fan coil units.
The fan speed can be manually controlled by the fan speed control pushbutton. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously, or cycling it with the thermostat.

• Features

  ● Bright back-lit display with interactive touch screen
  ● Beautiful ergonomic design is smart and sophisticated to match your customers
     lifestyle
  ● Large, clear display with backlight shows the current and set temperature and
     time.even in the dark.
  ● Adjustable heating/cooling/ventilating mode control
  ● Adjustable manual 3-speed or automatic fan speed control and on/off control
     output for valve
  ● Model available for cycling fan control
  ● Infrared remote control available
  ● Reliable output by relays
  ● Timer On/Off or 7-Day 4 periods Programmable For Customization
  ● Menu-driven programming make setup easily
  ● Lock function to avoid any mistake operations
  ● Model available for24Vac, 85-260VAC power input
  ● Easy installation
  ● Selectable indicator

• Functions

  ● Room Temperature Setting
  ● Detect and Display Room Temp
  ● Manual/Auto Fan Speed
  ● Infrared Remote Control
  ● Green Backlight

  ● Clock
  ● Timer On/Off or 7 days-Programmable(optional)
  ● Temperature calibrating
  ● Low-temperature protection function when turned off(optional)
  ● Lock/Unlock keypad to avoid any mistake operations(optional)
  ● Sleep function
  ● Sensor trouble indicator
