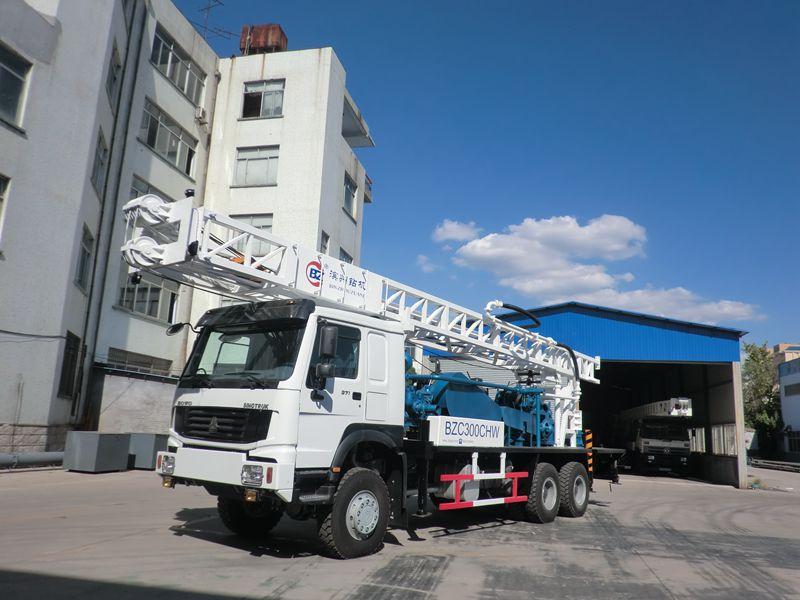

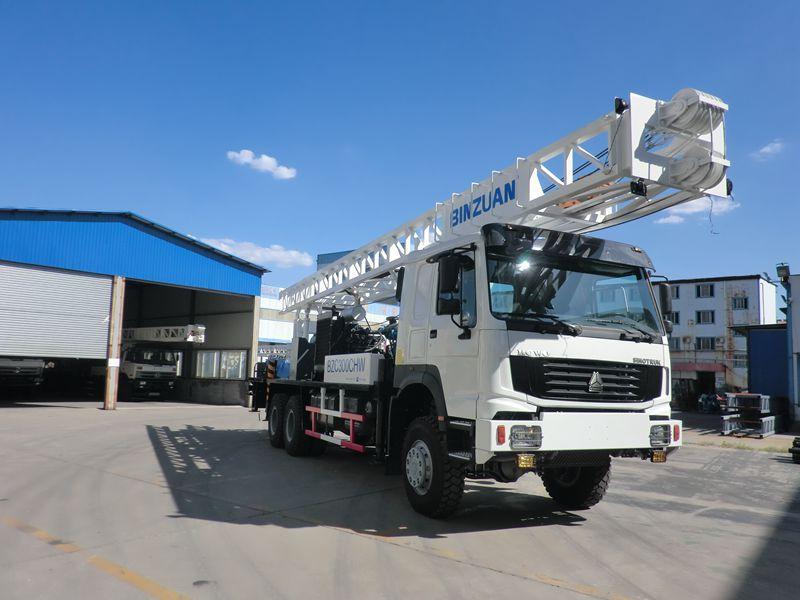

| Model: | BZC300CJHW |
|---|---|
| Brand: | BINZUAN brand |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | DRILLING RIG 300 , drilling machine , water drilling rig |
| Price: |
US $108286
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:07 Sep, 2015 |
1. BZT600 drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with lock nut. After leveling the rig, it can lock the cylinder use lock nut. So, even if the cylinder leaks, the chassis is not instability.
2. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction,
national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
|
Technical parameters of BZT600 |
||
|
Drilling depth (M) |
600 |
|
|
Drilling diameter (mm) |
500 |
|
|
Capacity of main hoist （KN） |
240 |
|
|
Main hoist single cable tension (KN) |
40 |
|
|
Capacity of assistant hoist (KN) |
120 |
|
|
Height of tower( mm) |
12000/15000 |
|
|
Rotation speeds of rotary table( rpm) |
Clockwise: 37,58,85 Anti-clockwise: 37,58,85 |
|
|
Bearing (KN) |
300 |
|
|
Drill pipe (mm) |
Ф89×10 |
|
|
Diesel generator |
Model |
Commins brand, SGCG-200 |
|
Rated power (KW) |
200 |
|
|
Frequency (Hz) |
50 |
|
|
3NB-130 mud pump |
Rated flow (L/m) |
1000 |
|
Work pressure (MPa) |
5 |
|
|
Power (KW) |
90 |
|
|
Working size(L*W*H)(mm) |
15100×2480×14170(17170) |
|
|
Transport size(L*W*H)(mm) |
15100(16630)×2480×4100 |
|
| Payment Terms: | T/T |
|---|---|
