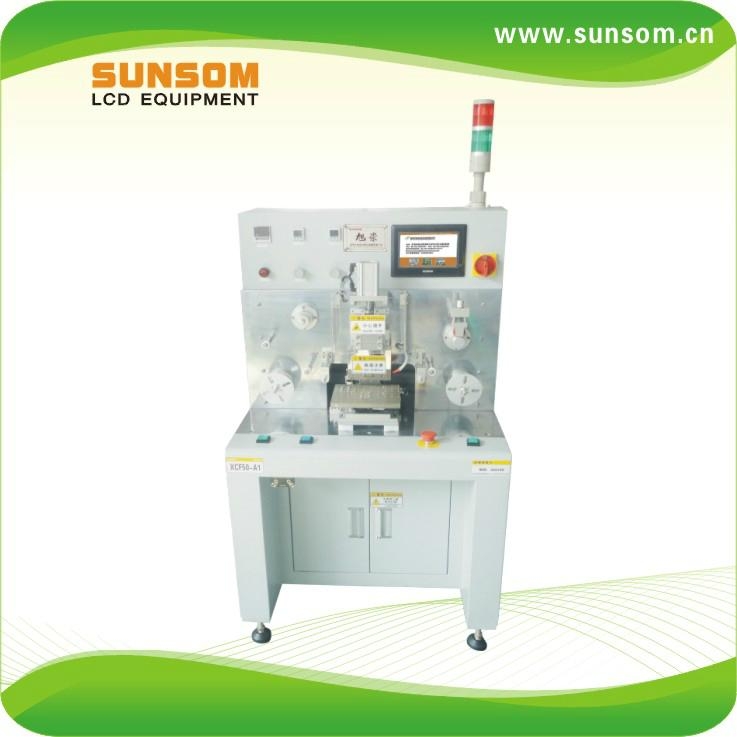

1.The definition of ACF attach machine XCF50-A1：
ACF attach machine, also known as "ACF attached machine", "ACF pre-press", "ACF bonding machine" using heat pipe heating,cylinder to promote semi-blade cutting ACF protective release film ,the cylinder pull-off from adhesive gel and pull-off glue.according to different models to select the corresponding ACF attaching time,corresponding to output value of a pressing head cylinder, a stepping motor according to the length of the feed patch, adhesive tape attached to the LCD glass ACF (LCD), touch screen glass (TP), FILM SENSOR on. Mainly applied in LCD modules, touch screen FOG, COG production and maintenance processes FPC, COF, TAB, IC and LCD and PCB bonding and other combinations.
2.The alternative name of ACF attach machine XCF50-A1：
According to the application and promotional of ACF attached (pre-paste) machine XCF50-A1,there are many different keywords: Attached machine, pre-paste, bonding machines, ACF bonding machine, ACF attached machine, ACF pre-paste, FOG attached machine, FOG pre-paste, FOG bonding machines, COG attached machine, COG pre-paste machines, TAB attached machine, TAB pre-paste, ACF machine, ACF machine, ACF equipment, ACF attached machine, ACF attachment device, ACF attached to the machine, ACF pre-paste, ACF pre-paste machines, ACF pre-paste equipment , ACF single station equipment,ACF single station machines , ACF single station machine, ACF multi-position equipment, ACF multi-station machines, ACF multi-station machines, ACF semi-automatic machine , ACF semiautomatic machines, ACF semi-automatic equipment, semi-automatic ACF attached machine,ACF semi-attached devices , ACF tacking semiautomatic machines, semi-automatic ACF pre-paste, semi-automatic ACF pre-paste machine , ACF pre-affixed equipment, automatic ACF machines, automatic ACF machines , ACF automatic equipment, ACF attached automatic machines, automatic ACF tacking equipment, automatic ACF attached machine ACF, ACF pre-automatic paste machine, automatic machine ACF pre-paste, automatic ACF pre-affixed equipment , ACF fixed machine,ACF tacking machine，movable platform ACF pre-paste, movable platforms ACF pre-paste machines,movable platforms ACF pre-paste equipment, ACF machine capacitive screen, capacitive screen machines ACF, ACF equipment capacitive screen, capacitive screen ACF pre-paste, capacitive screen ACF pre-paste equipment, capacitive screen ACF attached machine, capacitive screen ACF attachment device, touch screen ACF, touch screen ACF equipment, touch screen ACF pre-paste, touch screen ACF pre-paste machines, touch screen ACF pre-paste equipment , touch screen ACF attached machine, touch screen ACF attachment device, go back and forth ACF machine, after the machine into ACF, ACF-type device into the front and rear, front and rear into the ACF attached machine, go back and forth ACF attachment device attached to the machine back and forth go ACF, ACF pre-paste into the front and rear, front and rear pre-ACF paste into the machine, go back and forth ACF pre-paste equipment and so on.
3.About the classification of ACF attach machine XCF50-A1:1, classfied according to specifications:
1, Classified according to function (Application Size)
1.1 Within 7 inches of ACF attached with a product
1.2 ACF attached with 7 inches products
2, Classified according to degree of automation
2.1 Semi-ACF
2.2 Automatic ACF
3, Classified according to the way of stage work:
3.1 Single-head, fixed stage work
3.2 Single-head, moving around the stage
3.3 Single-head, multi-stage X-Y-station work
4, Classified according to the way of waste receipt:
4.1 Hanging receive trays
4.2 Receipt vacuum blower
5.Classified according to head size:
5.1 within 70mm
5.2 within 120mm
5.3 within 250mm
4. About the application field of ACF attach machine XCF50-A1:
ACF attach machine XCF50-A1 is widely used in capacitive touch screen (CTP), resistive touch screen (TP), electronic paper (E-PAPE), OLED, LCD / LCM production and assembly companies. Such as: phone (MB), laptop computers (NOTEBOOK), liquid crystal display (MONITOR), Tablet PC (PAD) and other production companies.
5.About the working principle of ACF attach machine XCF50-A1：
ACF attach machine XCF50-A1 works by using head pressure, pressure head temperature, bonding time, optical alignment system to make FPC, COF, TAB, IC and the ACF glue between LCD and PCB bonding,so it can conduct . Using heat pipe heating,cylinder to promote semi-blade cutting ACF protective release film ,the cylinder pull-off from adhesive gel and pull-off glue.according to different models to select the corresponding ACF attaching time,corresponding to output value of a pressing head cylinder, a stepping motor according to the length of the feed patch, adhesive tape attached to the LCD glass ACF (LCD), touch screen glass (TP), FILM SENSOR on. Mainly applied in LCD modules, touch screen FOG, COG production and maintenance processes FPC, COF, TAB, IC and LCD and PCB bonding and other combinations. All use imported components, machine stability, high accuracy,lower failure rate . Can choose a variety of ACF, has prompted alarm function, can effectively prevent malfunction. Pressing temperature, pressure, position paste, paste and bonding length of time can be set and adjusted according to the requirements.
6、About the ACF attach machine XCF50-A1 's competitive advantage：
6.1 SUNSOM patent (No. L2011 2 0120232.2): SUNSOM pressure system cylinder head structure can eliminate dead weight, pressure, minimum accuracy up to 0.1KG
6.2 Pressure head downstream structural part with three circuit control, according to quantify the production, manual production, commissioning needs to choose a different control methods, to solve the different operating modes due to downward pressure head inconvenience control problems.
7.About the basic parameters of ACF attach machine XCF50-A1：
7.1 Input Power: AC220V 50-60HZ
7.2 Rated Power: 1.0KW
7.3 Working pressure :0.4-0 .8 Mpa
7.4 Indenter size: 70mm-230 mm (customized)
7.5 ACF width: 1mm-5mm
7.6 Cut material way: automatic cutting
7.7 Operating modes: 7-inch HMI
7.8 Tooling digits: single station, platforms and out, moving back and forth to work
7.9 Heating: constant heating
7.10 Thermocouple: K type
7.11 Program control: PLC controller
8.About the functions and characteristics of ACF attach machine XCF50-A1：
8.1 Precision stepper feeding device and automatic cutter with 45 degree angle, effectively guarantee the accuracy of ACF attached.
8.2 All material bodies are made of retractable concentric adjustable trays and feed width micrometer adjustment mechanism to precisely adjust the width of ACF attached.
8.3 SUNSOM aluminum suspension and cooling devices connected, completely avoiding the damage to the pneumatic component caused by sheat transfer.
8.4 Operating system, built-compensation function parameters to further optimize device function accuracy.
8.5 Configuration Japan thermostat module with high precision temperature control, event output, PID contour integration.
