8kw Shuttle Tray High Frequency Welding Machine

Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:high frequency , welding machine , plastic
Price: US $8500 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information


Suzhou Rijin Machinery Equipment CO.,Ltd.China

Free MemberJiang Su - China
Live Chat:Last Online:05 Oct, 2015

Product Description

8kw shuttle tray high frequency welding machine

Video link


Main features:


1.It adopts PLC control system,touch screen HMI,precise and easy operation.


2.Automatic sliding table makes lower reject ratio and reduces labor intensity.


 3. It has big pressure, so it can cut off the wasted/excess edge in a short time after welding. So it makes the edge   and pattern smooth and perfect.


4. Left & right slide table design, sometimes 1 mold can be shared. So it saves the expensive mold cost.


 5. Safe & rational design to make sure the slide table will not hurt hands.


 6. Special & strong head: Special design makes the pressure equably to make the products perfectly.


 7. It adopts sensitive spark protection device. When it sparks, it will cut off the high frequency oscillation power, to protect mold and material.


 8.Without high frequency leakage because it adopts good shield device.


 9. The mold can be changed easily and quickly because it adopts hanging mold device.


 10. Heating device: It adopts heating device to increase the welding area for special material PET, PU, etc.


 11.Output power tuner: It can be adjusted according to different material to make sure the products can be made perfectly.


12.The surface is perfect without seam, and the welding is strong, stiff and smooth.


 13.It adopts high quality components, stable and low failure rate.Long service time.


14.It requires low skill for operators. The operator can use it after short training


1.Medical area:blood bag,urine bag,IV infusion bag,colostomy bag,drainage bag,ID wristbands,etc

2.Automotive:pneumatic lumbar support system,sunvisor,fuel and air assembly parts,seat cushion

3.Packaging: PVC PETG APET PET clamshell and blister,Making square transparent box

4.Stationary: Covers,albums,business card holders,notebooks,file folder,document pouch.

5.Advertising,embossed logo,label,traffic sign

6.Shoes:shoe upper/cover,insole/pad,

7. Universal usage for PVC PU TPU reinforced technical textiles

Main parameters:


Power Output 5000W 8000W 10000 15000
Power Supply 50/60HZ AC380V  3P
Power Input 9KVA 15KVA 18KVA 25
Oscillation 7T85RB/E 7T69RB E3069 8T85
Anti-spark Tube NL5557
Pressure Way Hydraulic
Gap of electrode 150mm
Upper Board 450×350 520×400 520×400 600X400
Working Plate 600×400 700×450 700×450 750X450
Dimension L1200XW850XH1850 L1500XW1050XH1850 L1800XW1250XH2150 L1900XW1250XH2150
 Weight 1000KG 1500KG 2000KG 2400KG


Payment Terms:TT LC

Product Image

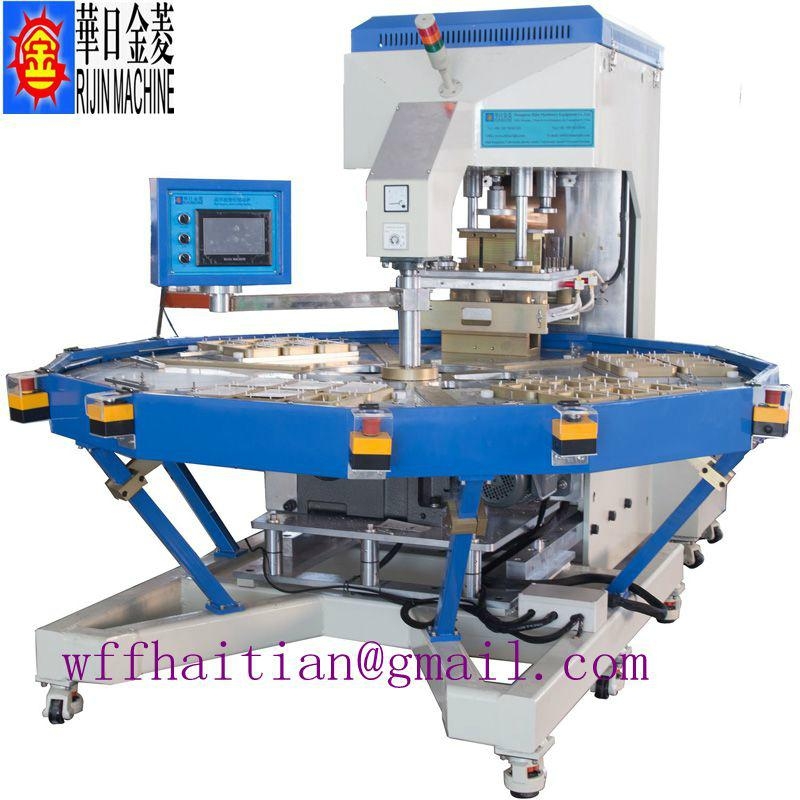

8kw Shuttle Tray High Frequency Welding Machine 1
Img 1
8kw Shuttle Tray High Frequency Welding Machine 2
Img 2
8kw Shuttle Tray High Frequency Welding Machine 3
Img 3
