| Model: | FTM series |
|---|---|
| Brand: | Henan Fote |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | Mobile Crusher Plant , Stone Mobile , mining mobilecrusher |
| Price: |
US $50000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:23 Sep, 2015 |

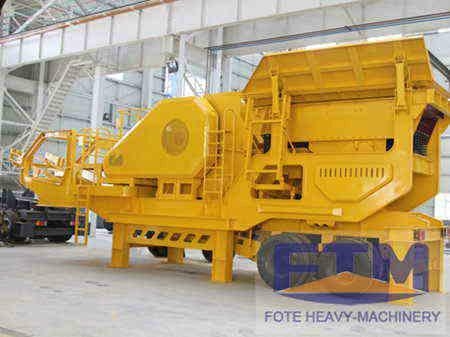

Portable Mining Stone Mobile Crusher Plant Specification:
1.Model: FTM938E69,FTM1142E710,FTM1349E912
2.Feeding size: 0-850(mm)
3.Production capacity: 45 -500 t/h
4.Weight: 39-83 t
5.Material: Iron ore,copper ore,gold ore, manganese ore, limestone, granite, basalt, quartz, silica, gypsum, marble, river stone, gravel, coal,etc.
6.Application area: mining,coal,garbage and construction waste recycling,earthwork,urban infrastructure, roads or construction sites and other venues operations.
Portable Mining Stone Mobile Crusher Plant Overview:
1.Portable mining stone mobile crusher plant is a new designed rock crushing & screening plant, which is flexible, convenient and strong in mobility, so it can save a large construction capital and relocation.
2.Raw Materials can be crushed at the local place without being transported again, and also can be moved with the further exploitation of the raw material, which saves a large number of transportation cost.
3.Fote Machinery specializes in producing crusher, screen and other mineral processing equipments.On the basis of professional technology, we optimize and introduce two large and three small series of crushing and screening equipment.
4.Each large series is divided into three series: coarse, medium and fine crushing and screening mobile plant.Therefore, it can fully adapt to the various mobile crushing and screening requirements, and creates more new business opportunities for customers while reducing cost of production.
Portable Mining Stone Mobile Crusher Plant Advantages:
1.Integrative full-set machine frame.
2.More flexible space and reasonable arrangement.
3.Low material transportation fee.
4.Direct and effective operation.
5.Strong suitability and flexible configuration.
6.Reliable performance and easy repair.
Portable Mining Stone Mobile Crusher Plantcharacteristics:
1.Mobility:short distance between shafts, small radius of turning circle, and the ability of moving flexibly on the ordinary roads and inside operation area.
2.Reducing the cost of material transportation:the mobile crushing plant can do field processing without moving materials away from the operation site, which greatly reduces the transportation cost of materials.
3.Direct operation effect:the integrative series of the mobile crushing plant can be used independently and flexible process configuration is also provided to customers according to different materials and product requirement.
4.Flexible combination and good adaptability:various combinations can realize independent operation and great flexibility.
5.The integrative set of equipment:the integrative set installation pattern avoids the installing steps of the infrastructure of the divided parts of the whole set in complex field, thus reducing both materials and working hours. The rational and compact spatial arrangement of the whole set increases the flexibility of the site residence.
Portable Mining Stone Mobile Crusher Planttechnical datas:
| Items | FTM938E69 | FTM1142E710 | FTM1349E912 |
| Transportation(without and with length(mm) diesel generator | 12000 | 13500 | 14600 |
| Transportation width(mm) | 2550 | 2550 | 2950 |
| Transportation height(mm) | 3750 | 4500 | 4500 |
| Max. length(mm) | 12500 | 1400 | 14600 |
| Max. width(mm) | 2900 | 2950 | 3300 |
| Max. height(mm) | 4100 | 4900 | 5300 |
| Weight(t) | 39 | 57 | 83 |
| Tyre configuration | Dual axial | Tri-axial | Tri-axial |
| Jaw crusher | PE600×900 | PE750×1060 | PE900×1200 |
| The Maximum feeding size(mm) | 480 | 630 | 750 |
| Discharge opening size (mm) | 65-160 | 80-140 | 100-200 |
| Capacity(t/h) | 90-180 | 110-320 | 220-450 |
| Vibrating feeder | ZSW380×95 | ZSW490×110 | ZSW490×130 |
| Main belt conveyor | B800×8.5M | B1000×9M | B1200×9.5M |
| Side-opening belt conveyor(optional) | B450×3M | B500×3.5M | B650×4M |
| Genset (optional)(kw) | 160 | 200 | 220 |
| Iron separator (optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
Delivery
We have developed long and good relationship with many shipping agents. Ocean freight partners are:APL, COSCO, OOCL, CSCL, MSC, etc.and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
Our Service Philosophy
1.Pre-sale services: enthusiasm
Provide you the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
