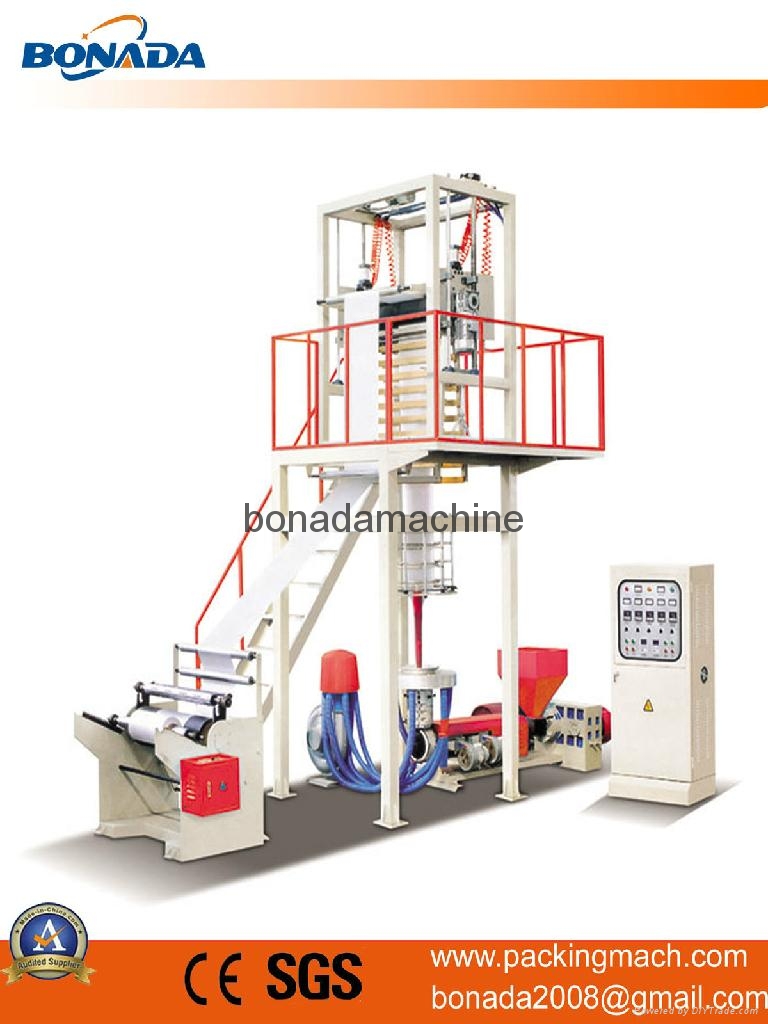

| Model: | SJ-50/55/60/65 |
|---|---|
| Brand: | BONADA |
| Origin: | Made In China |
| Category: | Packaging , Printing & Paper / Label & Tag |
| Label: | Film blowing machine , Blown film machine , Plastic film extrude |
| Price: |
-
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:06 Oct, 2014 |
Use:
It applies to blow various LDPE, HDPE and LLDPE plasticfilms, widely applying to food, fruit, clothing, textile, vesttype bag and etc. Packingof civil industrial products.
Feature:
Mode SJ-50-85 squeezing machine is adopted rotatory die head,machine tube is adopted 38CrMoAl,having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.
FM-600 auxiliary machine can adjust and operate freely within the range of 700mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.
Rolling up device with double-drawing in and do-uble cutting ope, its power is adopted moment motor, with friction plate,it can keepsuitable tension, drawing in and rolling up in good order, easy to change roll.
|
Model |
SJ50-700 |
SJ55-900 |
SJ65-1100 |
SJ65-1350 |
|
Dia. Of screw(mm) |
￠50 |
￠55 |
￠65 |
￠65 |
|
Max. Layflat width of film |
600mm |
800mm |
1000mm |
1200mm |
|
Film thickness(mm) |
0.008-0.12 |
0.008-0.12 |
0.008-0.12 |
0.008-0.12 |
|
Max. Output(kg/h) |
≈35 |
≈50 |
≈60 |
≈70 |
|
Screw L/D Ratio |
28:1 |
28:1 |
28:1 |
28:1 |
|
Main motor power |
11KW |
15KW |
18.5KW |
22KW |
|
Take-up motor power |
0.75KW |
0.75KW |
1.5KW |
1.5KW |
|
Overall Dimension(L*W*H)mm |
4500×2200×3800 |
4800×3000×4300 |
5200×3500×5800 |
5200×3500×5800 |
|
Main motor and Take-up motor: Controlled by inverter. |
|
Gear box: water cooling system, hard teeth surface. |
|
Barrel and screw material: alloyed steel 38CrMoAla(Alloy-Steel of High Quality SACM645), high Polished and high Nitrided treatment |
|
Rotary die Device: Continuous 360 degree rotation |
|
Heating ring: cast aluminum |
|
With up-and-down take-up unit |
|
Double winder: (with banana roller, cold slitting knives for cutting edge of the film and middle of film 3peces) |
|
Equip with counter |
|
Rewinding motor: torque motor |
|
With air compressor |
| Payment Terms: | TT/LC |
|---|---|
