| Model: | ASC-110 |
|---|---|
| Brand: | AISECU |
| Origin: | Made In China |
| Category: | Security & Protection / Alarm |
| Label: | Infrared PIR , microwave detector , dual alarm sensor |
| Price: |
US $9.9
/ pcs
|
| Min. Order: | 5 pcs |
| Last Online:24 Nov, 2015 |

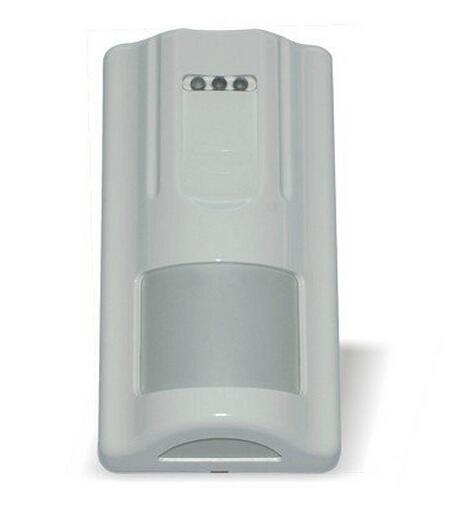

New Intelligence & Smart Wired Infrared & Microvave
Motion Sensor PIR ASC-110
Brief introduction:
AISECU has been devoted into intrusion alarm markets for several years,the products that we export including photoelectric beam detector,infrared barrier,infrared fence,passive infrared detector,wireless home system,industrial alarm control panel,door contacts,sound and light siren,and other alarm accessories.our target is to assist the customer like you make profits in your market.
Function:
1.Infrared & Microwave dual detect technology
2.With Microprocessor control
3.Digital temperature compensation technology
4.The range of Microwave is adjustable
5. Under Windows can eliminate blind spots
Technology Parameter:
|
Model |
ASC-110 |
|
Detecting Distance |
8-12M |
|
Working Voltage |
9-16VDC |
|
Working Current |
25mA(12V) |
|
Alarm Contact |
NC,12VDC,50mA,Max |
|
Tamper Contact |
NC,12VDC,100mA,Max |
|
Alarm Time |
2.2s min |
|
Preheating Time |
2 minutes |
|
RFI Future |
30V/m at 10Mhz to 1Ghz |
|
Working Temperature |
-5~55°C |
|
Dimension |
128*94*40mm |
|
Installation |
Wall-Mounted |
