| Model: | POM plastic she |
|---|---|
| Brand: | Newlytrend |
| Origin: | Made In China |
| Category: | Chemicals / Plastic Materials |
| Label: | POM sheet , POM plastic sheet , Delrin POM sheet |
| Price: |
US $2.6
/ kg
|
| Min. Order: | 500 kg |
| Live Chat: | Last Online:23 Mar, 2016 |

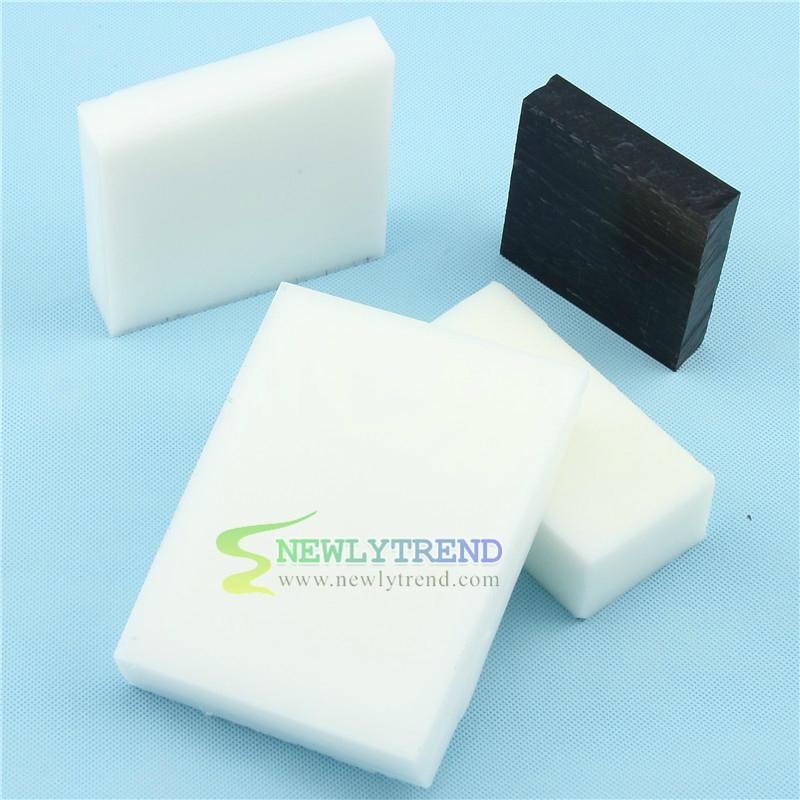

POM sheet formal name is Polyacetal sheet or delrin sheet
Properties:
POM sheet has excellent physical performances: high hardness, good wear resistance and fatigue resistance, good chemical stability and electricity insulation, dimensional stability, especially excellent solvent rigidity (elastic modules) and mechanical strength. It can act as lubricated parts, decorated parts, precision instruments, bearings gears, pumps, and insulated shells replacing of bronze, copper alloy, zinc, aluminum, steel and other metals.
Characteristics:
|
Density(g/cm3) |
1.43g/cm3 |
Shear strength(Mpa) |
80-95Mpa |
|
Impact strength(nick) |
8kg/m2 |
Hardness(HB) |
270-280n/mm2 |
|
Tensile strength(Mpa) |
70Mpa |
The highest continuous temperature(℃) |
110℃ |
|
Bend strength(Mpa) |
130-150Mpa |
Break down resistance(KV/mm) |
18.6KV/mm |
|
Compression strength(Mpa) |
126Mpa |
Elastic modulus in tension(Gpa) |
26.4-31Gpa |
|
Elongation |
6.0% |
|
|
Application:
POM sheet is widely used in various sliding and rotating machinery, precise parts, gear and so on. It has been Used throughout the automotive industry, electronics, clothing, medical, machinery, sports equipment industry and other fields.
Specification:
|
POM sheet |
||||
|
Thickness(mm) |
Length X width(mm) |
Color |
Minimum order |
Density(g/cm3) |
|
5-150mm |
600x1200mm 1000x1000mm 1000x2000mm |
White, black or as required |
500KG |
1.43 |
|
POM rod |
||||
|
Diameter(mm) |
Length(mm) |
Color |
Minimum order |
Density(g/cm3) |
|
4-300mm |
1000mm
|
White, black, or as required |
500KG |
1.43 |
