| Model: | Depend |
|---|---|
| Brand: | Fote |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | rotary kiln , cement kiln , limestone kiln |
| Price: |
US $10000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:23 Mar, 2015 |
Rotary kiln belongs to building materials equipment, which can grind raw materials into clinker with the help of high temperature. Rotary kiln is the main equipment of cement production process, so it is also known as cement rotary kiln or rotary cement kiln. At the same time, it can be used in metallurgy and chemical industries, which is suitable for non-ferrous metals, ore, ore, intermediate, lime and dolomite calcination, calcination etc.
Types of Fote Rotary Kiln
Rotary kiln can be divided into cement rotary kiln, metallurgy chemical kiln, clinker rotary kiln, limestone rotary kiln and lime kiln according to different processing of materials.

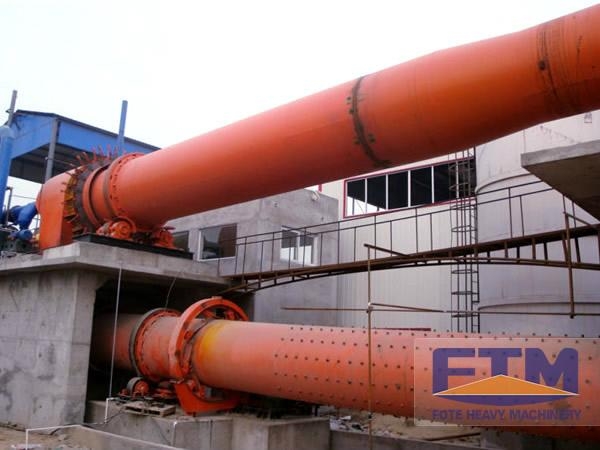

The Structure of Rotary Kiln
The rotary kiln produced by our company is mainly composed of thrust wheel, tire and shell. The kiln shell is the main part of rotary kiln, which directly influenced the service life, operation efficiency and heat efficiency of rotary kiln. Our company has taken the leading position in service life, energy consumption and production efficiency produces of rotary kiln when compared with the same specifications.
(1).jpg)
The Features of Rotary Kiln
1．It has firm structure, stable operation and high production efficiency.
2. It has convenient usage and easy operation. Its energy consumption is reduced by 15% when compared with the same type of products.
3. The duration of new materials adopted by rotary kiln is far more than the same kinds of products.
4. It has stable performance and advanced structure, which has greatly improved its preheating effects.
5. It is equipped with advanced processing technology and high cost performance ratio.
6. It can be used for roasting cement and metal ore with controllable temperature, stable performance and wide application ranges.
Technical Data
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
| Payment Terms: | T/T; L/C |
|---|---|
