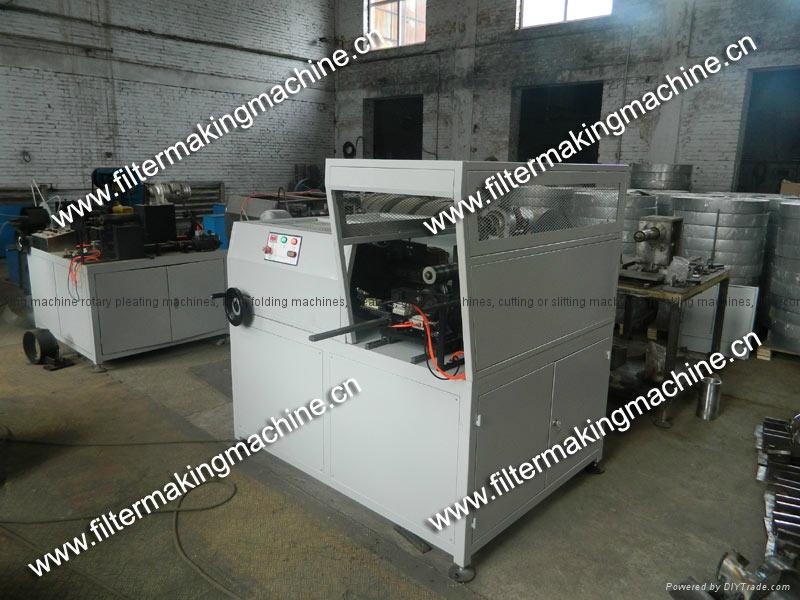

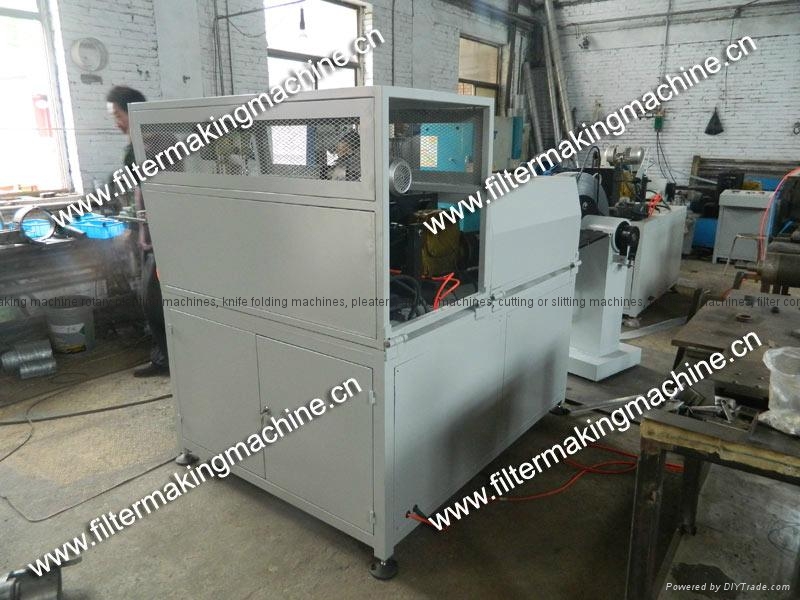

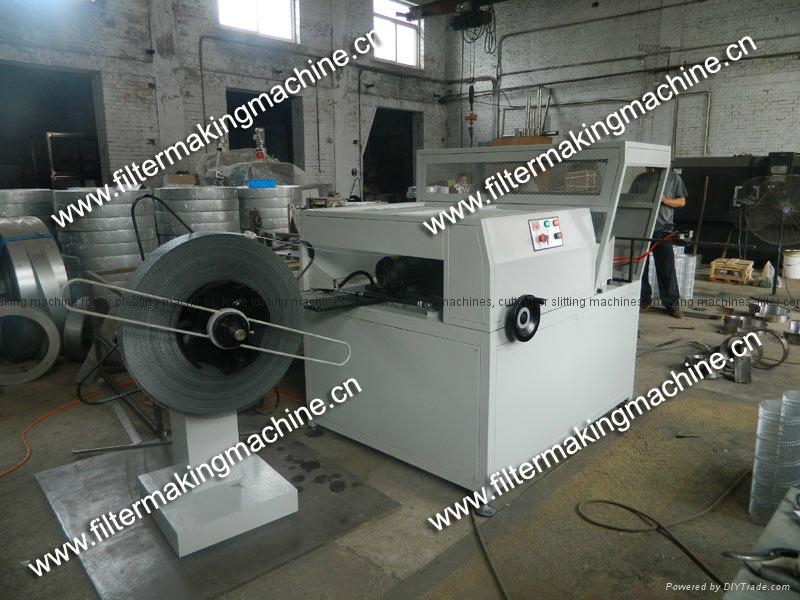

Big spiral core machine D171 has been designed for production of metal mesh spiral tube, the spiral tube for air/dust filter’s inner/outer support.

This machine have below advantages.

<a1> The mesh is standard,it is 88 mm wide,no matter what diameter or what length tube will be made.so only one size raw material for all tubes.

<a2> The produce speed is high. The linear speed of mesh could be reach 20 meter/min,if the tube diameter is 100mm,the tube output speed is 4.445meter/min,if the tube diameter is 300mm,the tube output speed is 1.515meter/min.

<a3> The tube length is adjustable from 150mm to 3000mm,even longer.

<a4> The tube machine only need one person to operate. save manpower.

There is also other three type of spiral tube machine for different purpose

<b1> Full auto spiral center tube forming machine (NXJGJ-2A) for oil/fuel filter center tube

<b2> Spiral core welding machine (SCW-8) for hydraulic filters

<b3> Stainless steel spiral tube welding machine (SCW-8V2) for ventilate pipe

Specification:

<c1> Mesh width: 88mm +0/-0.02

<c2> Mesh thickness: 0.5mm – 0.7mm, generally use 0.5mm or 0.7mm.

<c3> Mesh core tube diameter: 60-500mm

<c4> Tube length: 150mm-3000mm (could be longer if required)

<c5> Mesh linear speed: 20meter/min

<c6> Mesh type: Expanded mesh

<c7> Unwinding stand suited for: 310-350 mm

<c8> overall machine dimensions:

   Length: 2868mm

   Width: 1160mm

   Height: 1416mm

   Net weight: 836kg

<c9> Electricals suited for:

Voltage: 380V

Phase: Three

Frequency: 50Hz

Motor 1: 1.5KW 3.7A

Motor 2: 0.25KW 1.35A

Motor 3: 0.75KW 2A
