UL approved 12v 2a Switching AC Adapter

Model:JYH32-1202000
Brand:-
Origin:Made In China
Category:Electronics & Electricity / Power Supply & Distribution / Power Adaptor
Label:Power adapter , AC adapter , AC DC Adapter
Price: US $3.05 / pcS
Min. Order:500 pcS
Inquire Now Add to Basket

Member Information

Detail

Shenzhen JIpu Electronic Co.Ltd.

Free MemberGuang Dong - China
Live Chat:
Last Online:07 Nov, 2018

Product Description

China supplier UL approved power switching 12v 2a power adapter

Feature

1.Input:100-240V  safty approved ac dc adapter

2.No load power consumption< 0.25W

3.  Plug could be customised,

4. Protections:Short circuit/Over current/Over voltage/ Over temp and recover automatically after faulty removed

5. Fully enclosed plastic case

6. Efficiency lever: 12V

7. 2 years warranty

8. Capacity: 360,000pcs/month

9. Lead time: 3-15 working days led driver/power supply

10. Payment: TT,L/C,Paypal ect,.

11. Free sample is available

12. Provide customizing service



Input specification

Input voltage

AC85-264V

Input frequency

50-60Hz

Input impulse current

30A/115V  60A/230V



Input current

P<=100W: 2A/115V 1A/230V



101W - 200W: 3A/115V  1.5A/230V



201W - 400W: 5A/115   2.5A/230V

Output specification

Output Voltage

12VDC

Voltage regulation

(Full load) 5%

Output voltage can be adjusted

±10%

Wave and noise

120mVp-p

Efficiency

85%

Output current

2A

Output power

24W

Protection function

Over-voltage protection

105% - 150% of the rated voltage

Over-current protection

105% - 150%

Under-voltage protection

Under80%

Protection level(Waterproof level)

20

Rainproof level

60

Insulation intensity

Input---output

2000VAC/min

Input---ground

1500VAC/min

Output---ground

500VAC/min

Isolation resistance

Input---output

500VDC-100mΩ

Environmental

Temperature coefficient

0.01%(0-50°C)

Humidity coefficient

0.01% / (20% ~ 90% RH)

Working temperature and humidity

–20°C~60°C/20%~90%RH

Storage temperature and humidity

–40°C~85°C/10%~95%RH

Height above sea level

leq2000M

Fan

Fan

Without fan

Natural cooling air convection

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Safty standards

According with GB4943, UL60950-1,EN60950-1 standards

EMC standards

According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards

Size(mm)

160(L)*100(W)*42(H)

Weight

370g/PCS

Package

100pcs/A box

Packaging & Delivery

Packaging Detail: PE Bag+Clapboard+Outer Carton or according to customer's requirements
Delivery Detail: 3-15 days

Specifications

12v 2a power adapter:
1.INPUT:AC 100V-240V
2.OUTPUT:5W DC 4.5-9.0V
3. KC CCC GS CE BS ROHS
4.TWO-YEARS WARRANTY



Why choose us

  • More than 80 sets of advanced connectors & assembly cables machines and testing equipments.
  • Large production capacity, short delivery.
  • Strict QC checking before delivery.
  • OEM/ODM service available, help you on designing.
  • 7*24 hours online services and after sale service.
  • Prompt quotation for your inquiry.
  • More than 9 years experiences in usb cable and connector field.
  • Professional connector and cable manufacturer, with good quality and competitive price

Our service:

1. Can print your logo on products!

2. Can manufacture these products on any pantone color that you requested!

3. Can supply these products with spray painting!

4. Can manufacture your customized package!

5. Can exchange good freely if damage in 12 months!

6. FREE SAMPLE will be sent to you!


Payment Terms:T/T

Product Image

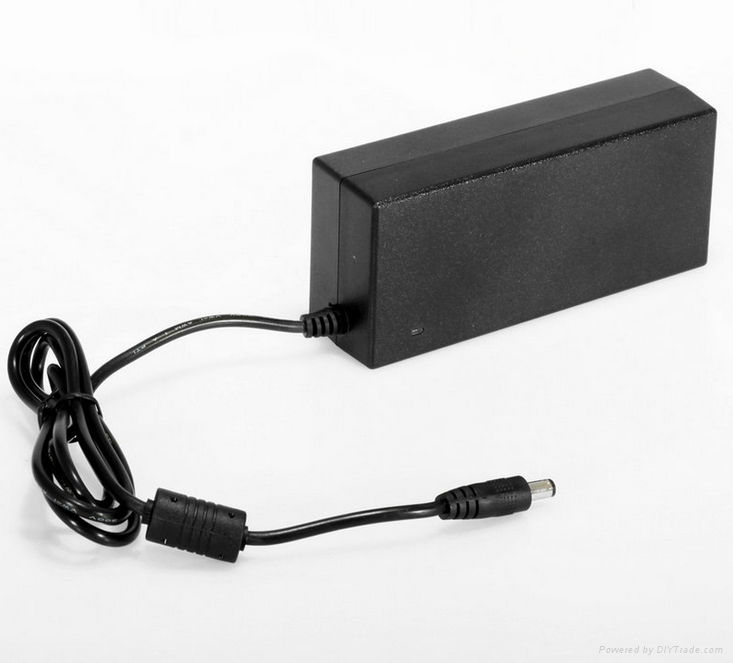

UL approved 12v 2a Switching AC Adapter  1
