WIFI+Bluetooth Module USB 2.4G 150M RTL8723AS

Model:FN-8727U1T-13
Brand:FN-LINK
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:wifi+BT module , bluetooth , wireless
Price: US $2.5 / pc
Min. Order:500 pc
Inquire Now Add to Basket

Member Information

Detail

ShenZhen Ofeixin Technology Co., Ltd.

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:24 Aug, 2018

Product Description

 FN-8727U1T-13 is a highly integrated single-chip IEEE 802.11b/g/n 1T1R WLAN with integrated Bluetooth 2.1/3.0/4.0 controller, USB2.0 interface, and HS-UART mixed interface. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and WLAN/BT RF in a single chip. The RTL8723AS provides a complete solution for a high throughput performance integrated wireless LAN and Bluetooth device.

    The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8723AS. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11b/g/n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to prov02.11b/g/nllent performance with low power Consumption and enhance the advantages of robust system and cost-effective.

Features

Descriptions

Main Chipset

Realtek RTL8723AS-VAU



Operating Frequency

2.4G: 2.4000GHz~2.4835GHz

Host Interface

USB

WIFI Standard

iEEE802.11b/g/n



Modulation

802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)

802.11 g/n: OFDM





PHY Data rates

802.11b: 11,5.5,2,1 Mbps

802.11g: 54,48,36,24,18,12,9,6 Mbps

802.11n: up to 150Mbps







Transmit Output Power

802.11b@11Mbps 16±2dBm 802.11g@6Mbps 15±2dBm802.11g@54Mbps 15±2dBm

802.11n@65Mbps 14±2dBm (MCS 0_HT20)

14±2dBm (MCS 7_HT20)

13±2dBm (MCS 0_HT40)

13±2dBm (MCS 7_HT40)



EVM

802.11g /54Mbps : EVM≦-25dB

802.11n /65Mbps : EVM≦-28dB

Operation Range

Up to 150meters in open space

RF Antenna

External Antenna

OS Support

Android / Win CE /iOS /Linux/Windows 2000/XP/WIN7 /MAC OS

Security

WEP,TKIP,AES,WPA,WPA2





Power Consumption 3.3VPower supply

LINK

170mA

TX 2.4G

20M:220mA; 40M:200mA

RX

170mA

Features

Descriptions

Main Chipset

Realtek RTL8723AS-VAU

Operating Frequency

2.402~2.480GHz         (0-78 channel)

BT Standard

BT4.0

Modulation

GFSK、DPSK

PHY Data rates

4,3,2,1 Mbps

RF Power

8±2dBm Max

Receiver Sensitivity

≤-86±1dBm

Host Interface

USB

Operation Range

Up to 10meters in open space

RF Antenna

External Antenna

OS Support

Android / Win CE /iOS /Linux/Windows 2000/XP/WIN7



Power Consumption 3.3VPower supply

LINK

180mA

TX

240mA

RX

180mA

Dimension

Typical: L19.3*W12.4*T2.0mm




Payment Terms:TT advance

Product Image

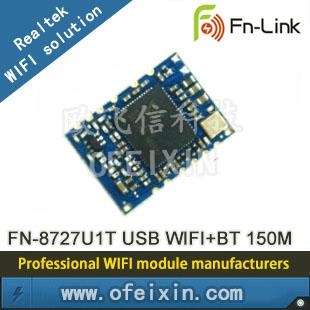

 WIFI+Bluetooth Module USB 2.4G 150M RTL8723AS 1
