Actuator ADC 225-24

Model:225-24
Brand:-
Origin:-
Category:Industrial Supplies / Machinery / Internal-Combustion Engine
Label:Actuator , Engine Parts , Marine electrical ac
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Chong Qing Shu Yang Trading Company

Free MemberChong Qin - China
Live Chat:Last Online:09 Sep, 2014

Product Description


Quick Details

    Place of Origin: China (Mainland)
    Model Number: ADC225-24
    Gross Weight: 3.8kg
    Package Size: 195mm*180mm*175mm
    Operating Voltage: 12/24 V
    Normal Operating Current: 2 A at 12V DC; 1A at 24V DC
    Available Torque: Max1.0Lb-ft(1.4Nm)
    Maximum Operating Shaft Angular Travel: 25+1° CW/CCW
    MOQ: 1
    Standard: ISO9001 Quality System Certification


Specifications
BOCE Actuator ADC225-24
Same function as GAC ADC225 series.
ISO9001 Quality System Certification

We provide speed controllers as follows:



1) ESD5111, ESD5220, ESD5221A

2) ESD5500E, ESD5520E, ESD5521, ESD5522E

3) ESD5550E, ESD5570E, ESD5330

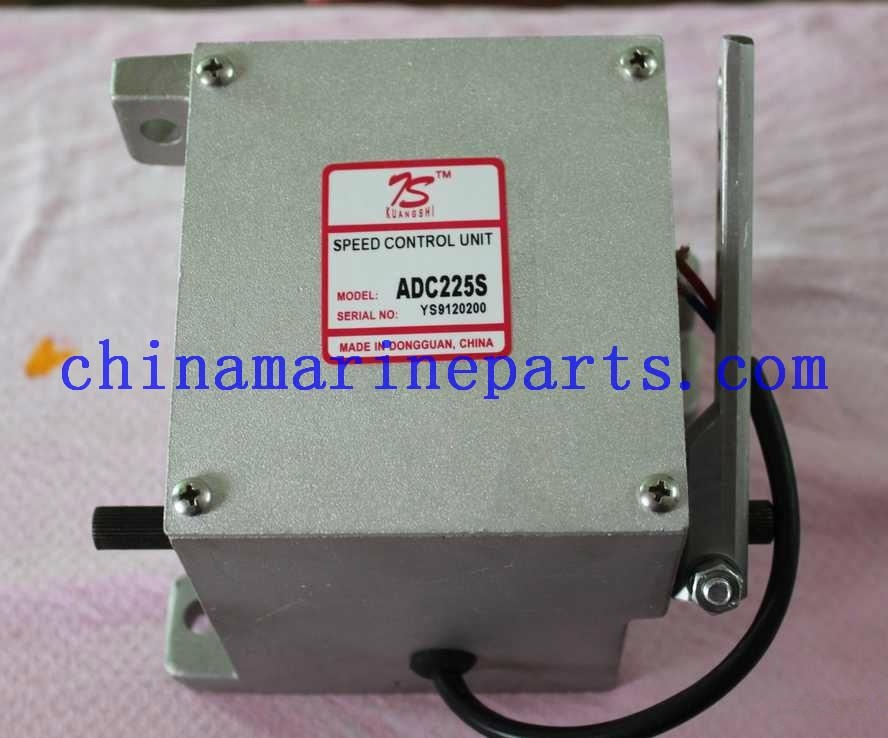

Product Image

Actuator ADC 225-24  1
Img 1
