| Model: | ND200-1&ND200-2 |
|---|---|
| Brand: | Ruicheng |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | sample concentration , sample concentrator , lab instrument |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:06 May, 2024 |
Description:

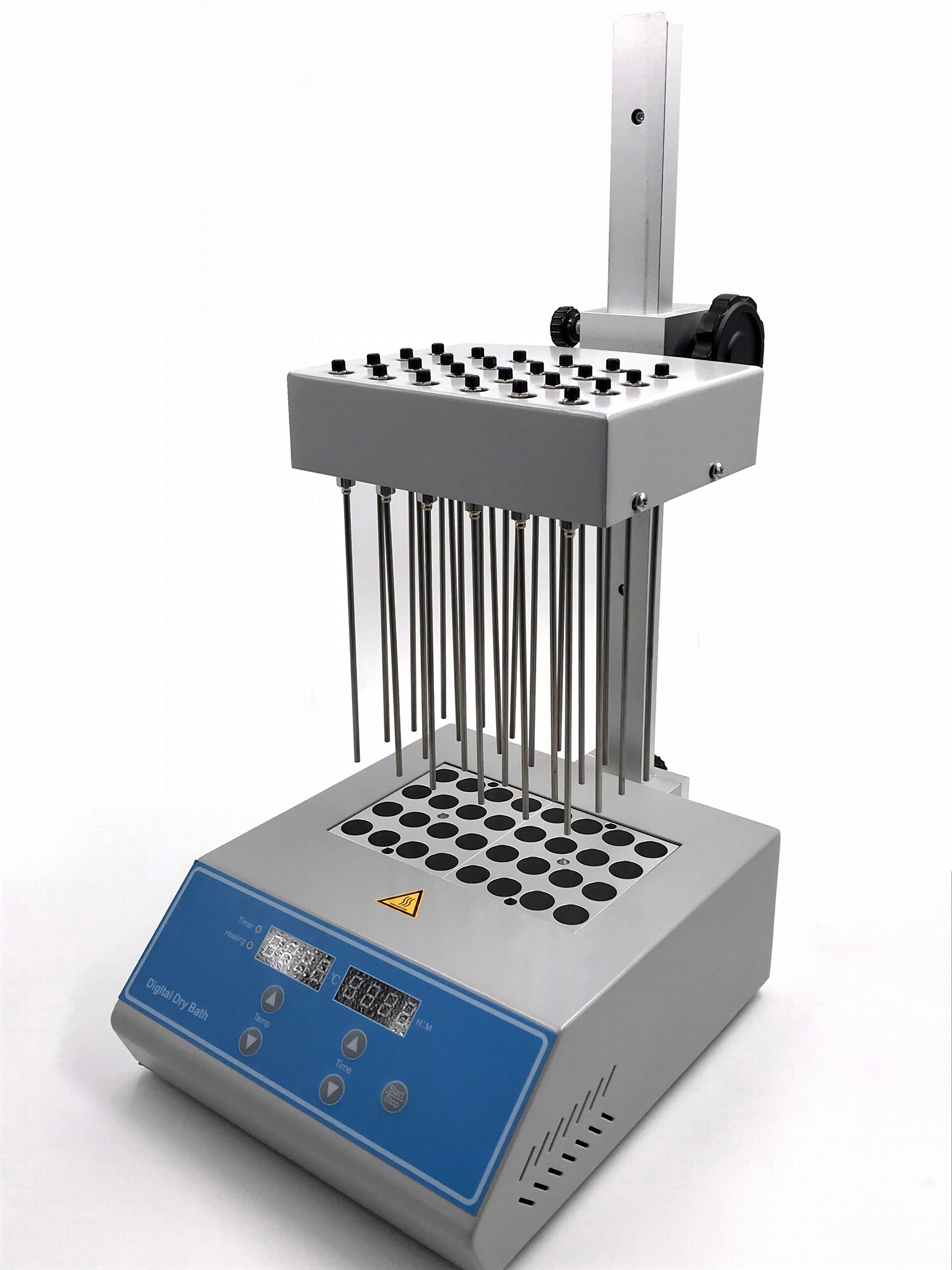

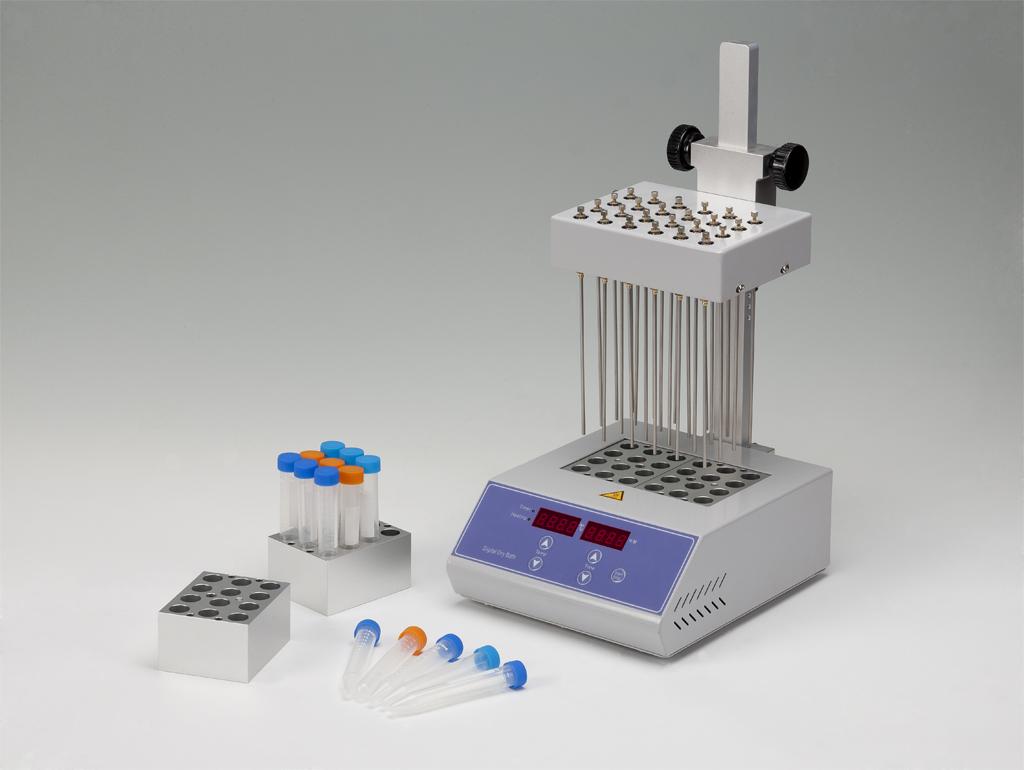

ND200-1/ND200-2 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
◆ High precision and wide range of tamp control.
◆ Blowing a large number of samples at one time.
◆Blowing each sample independently.
◆Amount of airflow can be adjusted.
◆Easy operation; safe and reliable to use.
Parameters:
|
Model |
ND200-1 |
ND200-2 |
|
Temp range |
RT.+5℃-160℃ |
RT.+5℃-160℃ |
|
Temp accuracy |
±0.5℃(@40℃) |
±0.5℃(@40℃) |
|
Temp accuracy |
±1℃(@120℃) |
±1℃(@120℃) |
|
Temp uniformity |
±0.5℃ |
≤±0.5℃ |
|
Display accuracy |
0.1℃ |
0.1℃ |
|
Timing range |
1min-99h59min/∞ |
1min-99h59min/∞ |
|
Heating time |
≤15min(from 25℃ to 160℃) |
≤15min(from 25℃ to 160℃) |
|
Needle length |
150mm |
150mm |
|
Nitrogen flow rate |
15L/min |
15L/min |
|
Nitrogen pressure |
0.1Mpa |
0.1Mpa |
|
Block quantity |
1 |
2 |
|
Power |
300W |
500W |
|
Voltage |
AC220V or AC110V, 50/60Hz |
AC220V or AC110V, 50/60Hz |
|
Dimension(mm) |
260X220X475 |
260X220X475 |
|
Weight |
6.0kg |
7.5kg |

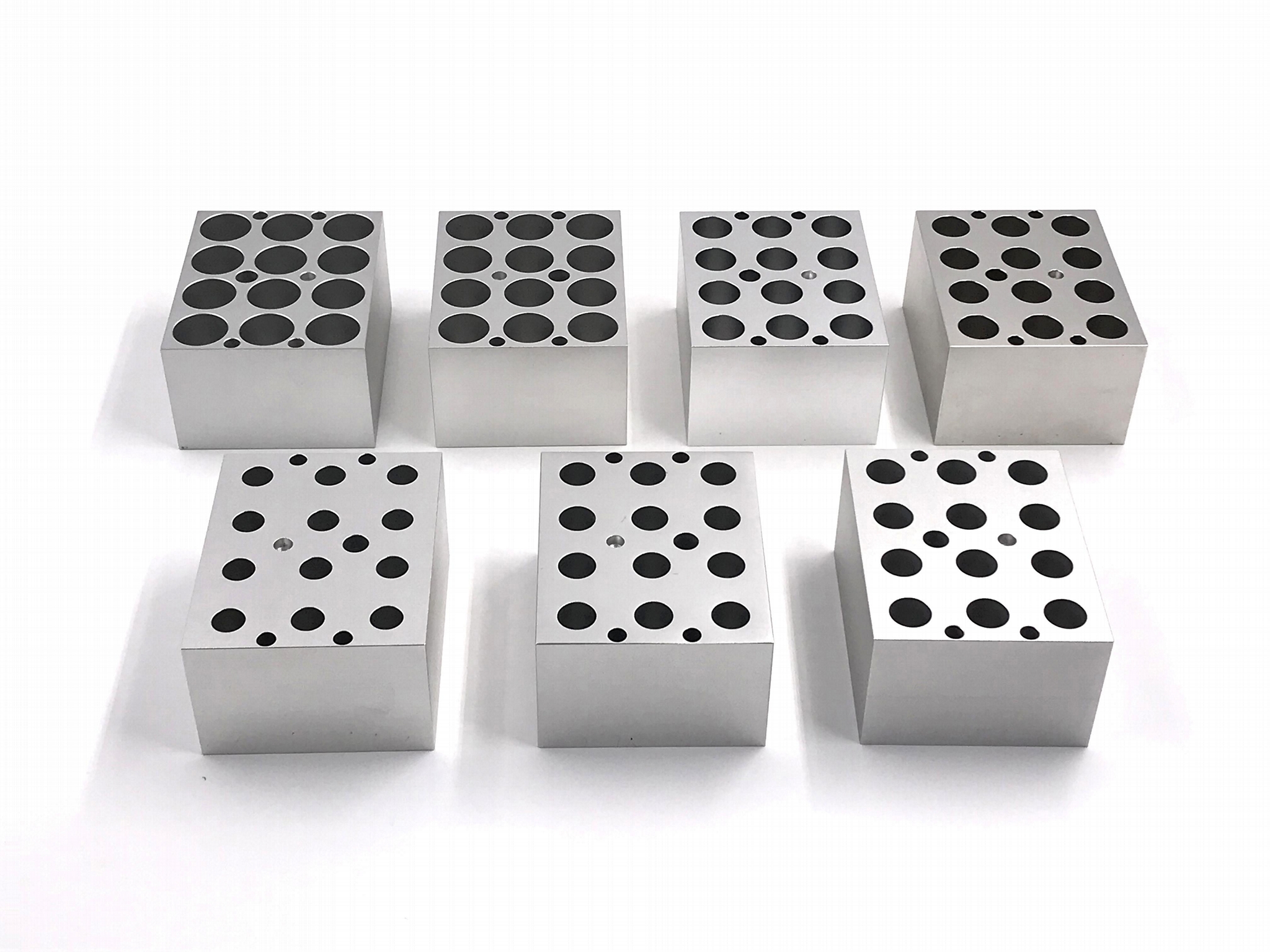

Optional Blocks:
|
Type |
Description |
Type |
Description |
|
MD50 |
12x10mm |
MD54 |
12x16mm |
|
MD51 |
12x12mm |
MD55 |
12x19mm |
|
MD52 |
12x13mm |
MD56 |
12x20mm |
|
MD53 |
12x15mm |
--- |
--- |
