| Model: | IPC-801PT |
|---|---|
| Brand: | joneytech |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | IP Camera wifi , cctv ip camera , ip camera |
| Price: |
US $35
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:11 Apr, 2020 |
Security Camera:

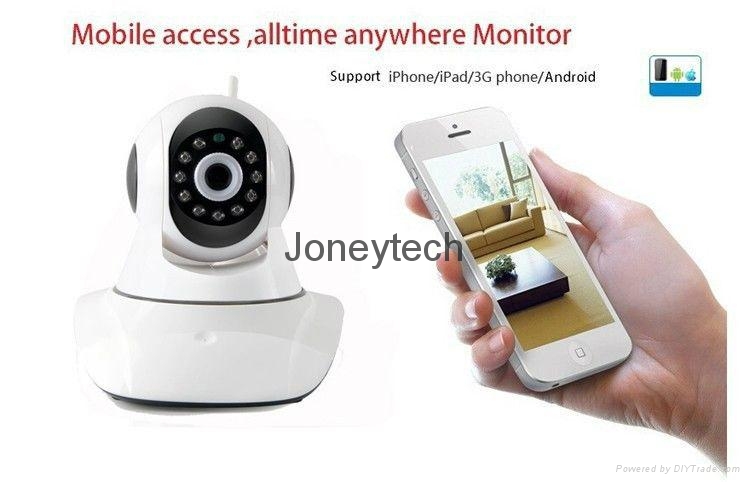

ROBOT P/T Wifi IP Camera
Frame Rate:NTSC:30fps PAL:25fps
Lens:Board Lens,f=4mm
R Led:12pieces x F5
IR Range:10m
With micphone,speaker and sd card slot
Support more than 20 languages& Mobile Phone View&Free CMS & DDNS&Motion Detection
Support Wifi and P2P
Specification
|
|
IPC-801PT-1.0MP | |||
| Camera | ||||
| Image Sensor | 1/4" OV CMOS sensor with IR Cut filter, | |||
| Effective Pixels | 1280(H)×720(V) | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s | |||
| Min. Illumination | Color: 0. 1Lux, B/W: 0.005Lux | |||
| S/N Ratio | >50dB | |||
| Camera Features | ||||
| Max. IR LEDs Length | 12pieces x F5 : IR Range: 10 Meters | |||
| Day/Night | Auto / Color / B/W | |||
| Backlight Compensation | BLC | |||
| White Balance | Auto | |||
| Gain Control | Auto/Manual | |||
| Noise Reduction | 2D | |||
| Lens | ||||
| Focal Length | Board Lens 4mm | |||
| Max Aperture | F1.6 | |||
| Angle of View | 78° | |||
| Mount Type | MTV mount (Interchangeable Lens) | |||
| Video | ||||
| Compression | H.264 / MJPEG | |||
| Frame Rate | Main Stream | 1.0MP(1280*720@30/25fps) | ||
| Sub Stream | VGA 640*360 25FPS | |||
| Bit Rate | 128Kbps~8Mbps,Supports CBR/VBR | |||
| Audio optional | ||||
| Compression | G.711 | |||
| Interface | 1/1 channel In/Out | |||
| Network | ||||
| Ethernet | RJ-45 (10/100Base-T) | |||
| Protocol | TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP | |||
| ONVIF | ONVIF Ver. 2.0 | |||
| Max. User Access | 10 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Wireless protocols | 802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2 | |||
| General | ||||
| SD Card slot | Max 32GB | |||
| Power Supply | DC12V | |||
| Power Consumption | <6W | |||
| Working Environment | -10°C~+60°C, 10%~90% | |||
| Ingress Protection | N/A | |||
| Approvals | CE FCC RoHS | |||
|
|
| Price Terms: | FOB Shenzhen |
|---|---|
| Payment Terms: | T/T,Western Union,Paypal |
| custom_attr1: | wifi ip camera |
