| Model: | - |
|---|---|
| Brand: | GOLD HAWK |
| Origin: | Made In China |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | Tyre cure press , hydraulic press , Rubber machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Sep, 2018 |

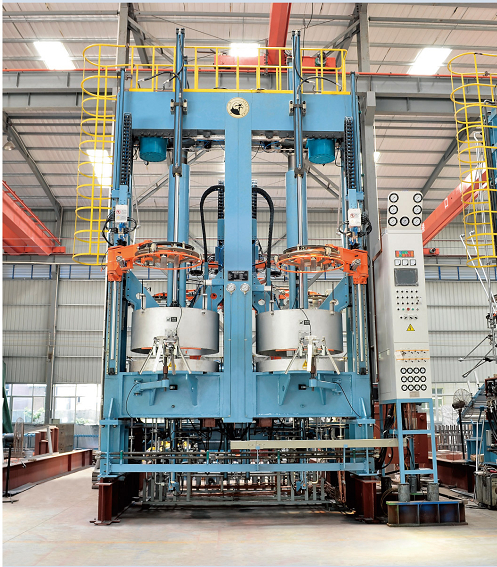

It is use for Tyre curing press.
Its feature are as below:
1.Repeated movements, linear guaides and inducer orientation Working with high precision, Assure the molds' repeatability and life.
2.Heating plate's struture is Labyrinth fan-shaped, the temperature difference is small. High membrane insulation board with good insulation,durability.
3.Up and down hot plate has high concentricity and parallelism.
4.The Tyre installs by two-way magnetic cylinders.Light and flexible, accurate position.
5.Electronic control and timing lubrication,reduce the working load.
Main technical parameters:
| DIMENSION | 48” |
| MOULD TYPE | 2-PIECE MOULD AND SGM |
| CURING TYPE | FRAME TYPE |
| MOULD HEIGHT | 250~550mm |
| MOULDS | 2 |
| TYRE BEAD DIAMETERS | 13"~20" |
| MOST SQUEEZING FORCE PER MOULD | 1960KN |
| MAX DIAMETER OF RAW TYRE | 850mm |
| CENTER MECHANISM | BOM |
| MAX GREEN TYRE HEIGHT | 550mm |
| HEATING TYPE | HEATING PLATE |
| WIDTH OF TYRE SECTION | 400mm |
| DIAMETER OF HEATING PLATE | 1220mm |
| MAX. O.D. OF CURED TYRE | SGM 850mm/2 PIECE MOULD 900mm |
|
PARAMETERS COULD BE ADJUSTED BY REQUIREMENT FROM CUSTOMERS |
|
| Payment Terms: | TT/LC at sight |
|---|---|
