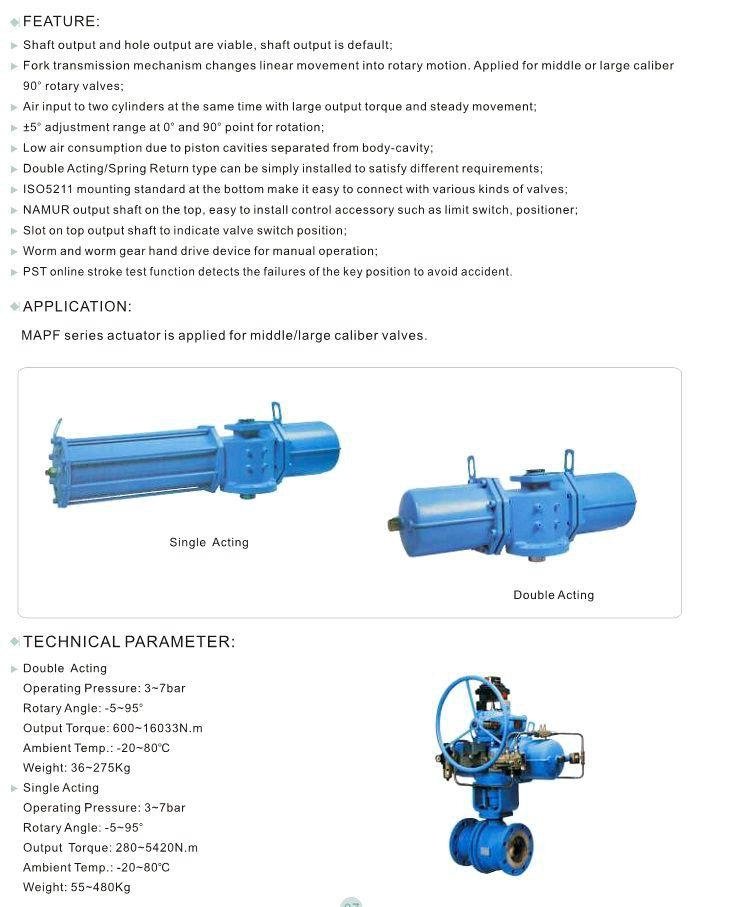

MAPF SERIES PNEUMATIC ACTUATOR OF FORK TYPE

Shaft output and hole output are viable, shaft output is default;

Fork transmission mechanism changes linear movement into rotary motion. Applied for middle or large caliber 90° rotary valves;

Air input to two cylinders at the same time with large output torque and steady movement;

±5° adjustment range at 0° and 90° point for rotation;

Low air consumption due to piston cavities separated from body-cavity;

Double Acting/Spring Return type can be simply installed to satisfy different requirements;

ISO5211 mounting standard at the bottom make it easy to connect with various kinds of valves;

NAMUR output shaft on the top, easy to install control accessory such as limit switch, positioner;

Slot on top output shaft to indicate valve switch position;

Worm and worm gear hand drive device for manual operation;

PST online stroke test function detects the failures of the key position to avoid accident.
