| Model: | API Tubing Pump |
|---|---|
| Brand: | ZHONGSHI |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | Sucker Rod Pump , Tubing Pump , sucker rod pumping |
| Price: |
US $650
/ PCS
|
| Min. Order: | 1 PCS |
| Live Chat: | Last Online:15 Jun, 2017 |

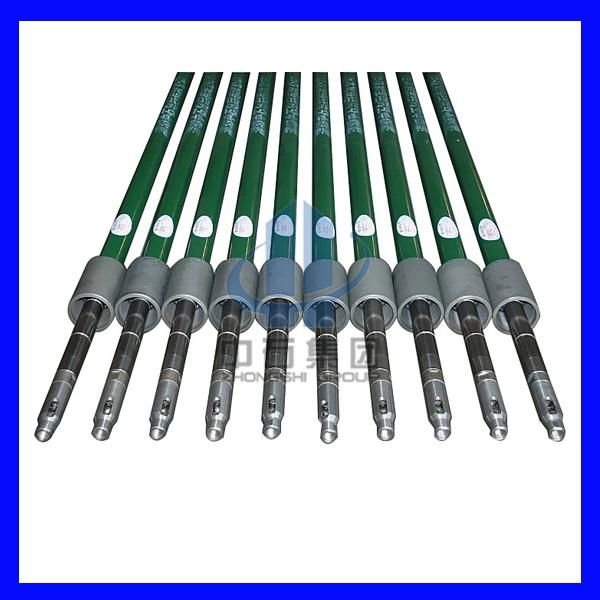

API Subsurface Sucker Rod Pump/Tubing Pump
The subsurface sucker rod pump(API Insert Pump)/tubing pump is for oil extraction,including tubing size,pump bore,pump type,barrel type,Location of seating assembly,Type seating assembly,Barrel length in feet,Nominal plunger length in feet,Length of upper extension in whole feet,Length of lower extension in whole feet and then confirming complete pump model.
Tubing Size:1.9in-4-1/2in
Pump Bore:1-1/16in -3-3/4in
Pump Type:Rod Pump/Tubing Pump
Barrel Type:Heavy Wall/Thin Wall,Material:Chrome Plated
Plunger Material:Spray Metal Coated
Valve Ball&Valve Seat:Stainless Steel
Thread Connection:NUE/EUE
Sucker Rod Pump Specification
|
Code |
Pump Diameter (mm) |
Plunger Length (m) |
Length of Pump Cylinder (m) |
Outer Diameter of Connection Oil Pipe (mm) |
Diameter of Connection Sucker Rod (mm) |
Length of Extension Joint (mm) |
| 20-125RH/RW | 31.8 | 0.6~2.1 | 3.3~9.5 | 60.3 | 19.1 | 0.6~0.9 |
| 20/25-150RH/RW | 38.1 | 0.6~2.1 | 3.3~9.5 | 60.3~73.0 | 19.1 | 0.6~0.9 |
| 25-175RH/RW | 44.5 | 0.6~2.1 | 3.3~9.5 | 73.0 | 19.1 | 0.6~0.9 |
| 25-200RW | 50.8 | 0.6~2.1 | 3.3~9.5 | 73.0 | 19.1 | 0.6~0.9 |
| 30-225RH/RW | 57.2 | 0.6~2.1 | 3.3~9.5 | 88.9 | 19.1 | 0.6~0.9 |
API Tubing Pump Specification
|
Code |
Pump Diameter (mm) |
Plunger Length (m) |
Length of Pump Cylinder (m) |
Outer Diameter of Connection Oil Pipe (mm) |
Diameter of Connection Sucker Rod (mm) |
Length of Extension Joint (mm) |
| 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~9.5 | 63.0~73.0 | 15.9~19.1 | 0.6~0.9 |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~9.5 | 63.0~73.0 | 15.9~19.1 | 0.6~0.9 |
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~9.5 | 63.0~73.0 | 19.1 | 0.6~0.9 |
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~9.5 | 63.0~73.0 | 19.1 | 0.6~0.9 |
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~9.5 | 73.0 | 19.1 | 0.6~0.9 |
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~9.5 | 73.0 | 19.1 | 0.6~0.9 |
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~9.5 | 88.9 | 22.2 | 0.6~0.9 |
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~9.5 | 114.3 | 25.4 | 0.6~0.9 |
Notes: 1. Type of barrel: chrome plated or carbonitrided surface
2. Type of plunger: metal spray or chrome plated surface
3. Valve ball and seat materials: stainless steel and tungsten carbide
4. Pump designation:
1) RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
2) RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3) RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
4) RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
5) RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
6) RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump
7) RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
8) RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
9) RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump
10) RSB: Stationary Thin Wall Barrel, Bottom Anchor, Soft-packed Plunger, Rod Pump
11) THM: Heavy Wall Barrel, Mechanic Seating, Tubing Pump
12) THC: Heavy Wall Barrel, Cup Seating, Tubing Pump
How to select one Sucker Rod Pump or Tubing Pump
1.Casing,Tubing and Downhole Pump Size
2.Sucker Rod Model and Length
3.Sucker rod pump reciprocating speed
4.Applying for new,low volume stripper well

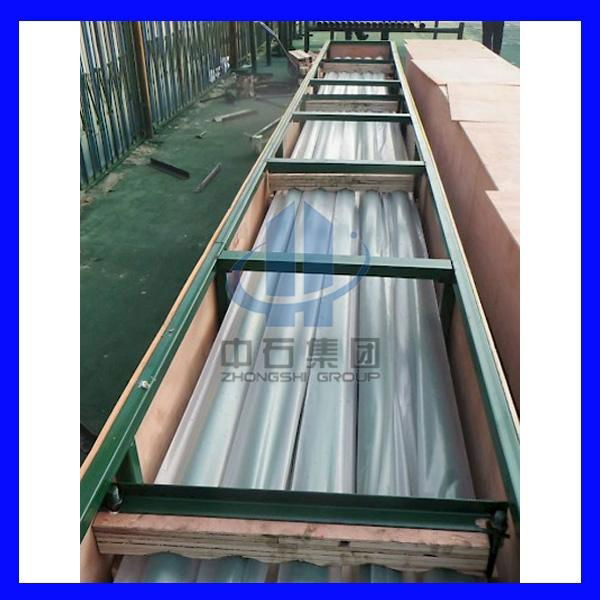

Packing by Wooden Case/Iron Case outside/Wooden Frame inside
Trade Term:
Payment by T/T,30% Prepayment and then 70% Balance before Delivery
FOB Qingdao/Tianjin or CFR or CIF
Delivery time and shipment time according to product quantity
Seller provides technological guidance service and after sale service.

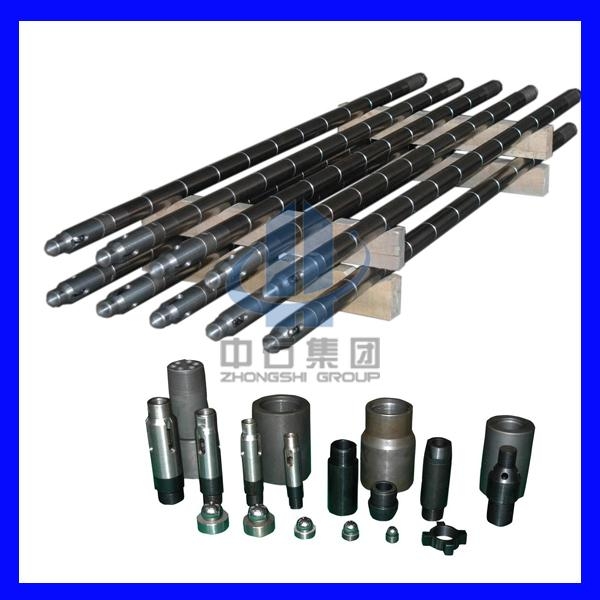

We can provide you different kinds of size and materil sucker rod pump/API Tubing Pump/API Insert Pump Parts as follows:
1.Sucker Rod Pump Barrels
2.Sucker Rod Pump Plungers
3.Sucker Rod Pump Valve Cages
4.Sucker Rod Pump Valve Ball&Seats
5.Sucker Rod Pump Hold-Down Seal Assemblies
*******************************************************************************************************************************************
Puyang Zhongshi Group Co.,Ltd
Add:2-1-507 International
Trade Center,Zhengzhou
Henan,China 450000
Cell:0086-15903658152/15515578906
Tel:0086-371-87096211
Fax:0086-371-87096212
E-mail:sale02@chinajixie.com
SKYPE ID:allenwangzs
QQ:15515578906
http://vastler.diytrade.com
http://www.chinazsoilfieldequip.com
| Price Terms: | FOB/CFR |
|---|---|
| Payment Terms: | T/T,30% Prepayment and then 70%Balance before Delivery |
| Packing: | Wooden Case/Iron Case |
| Standards Certificate: | API 11AX Certificate |
