API Type C Pumping Jack

Model:	Pumping Unit
Brand:	ZHONGSHI
Origin:	Made In China
Category:	Industrial Supplies / Mining Machine
Label:	Pumping Jack , Pumping Unit , oil pump unit
Price:	¥3300 / PCS
Min. Order:	1 PCS

Inquire Now Add to Basket

Member Information

Puyang Zhongshi Group Co.,Ltd

Free MemberHe Nan - China

Live Chat:

Last Online:15 Jun, 2017

Product Description

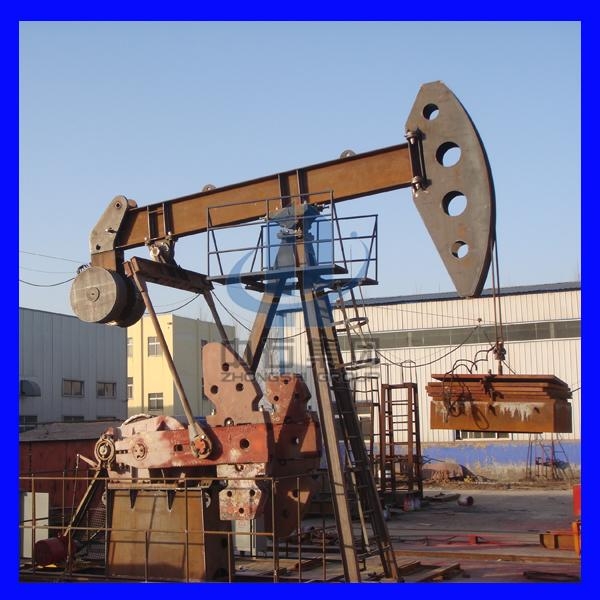

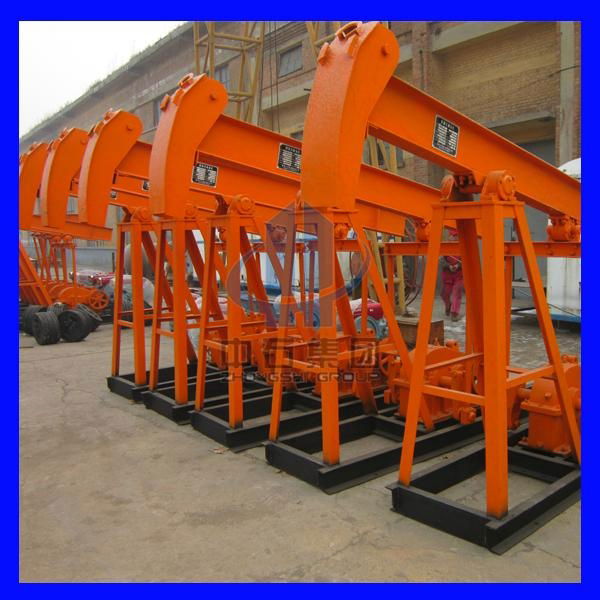

API Type C Pumping Jack

Brief Introduction

Conventional API C pumping jack(beam pumping unit) with walking beams, balanced by cranks, is used for oil extraction on oil fields.Products in accordance with API 11E,Our type C oil pump jack model including 57D,80D,114D,160D,228D,320D,456D,640D,912D,1280D,1824D or OEM service by pump jack drawing from customers

Technical Specifications and Features
1.Rated Polished Rod Load
2.Stroke Length
3.Stroke Frequency
4.Blance Model
5.Local Voltage/Ambient Temperature/Oil Well Depth
6.Simple to operate by adjusting counterweights position and easy and safe to maintain(14years life)

Main Pump Jack Model

Model	Rated Polished Rod load (lbs)	Stroke (in)	Rated Torque of Reducers (in.lbs)
C-1824D-427-240	42,700	240、212、196、160	1824,000
C-1280D-365-240	36,500	240、212、196、160	1280,000
C-1280D-305-240	30,500	240、212、196、160	1280,000
C-912D-470-240	47,000	240、212、196、160	912,000
C-912D-427-216	42,700	216、185、155	912,000
C-912D-427-192	42,700	192、165、138	912,000
C-912D-305-192	30,500	192、165、138	912,000
C-912D-365-168	36,500	168、144、121	912,000
C-912D-305-168	30,500	168、144、121	912,000
C-912D-427-144	42,700	144、123、102	912,000
C-640D-305-192	30,500	192、165、138	640,000
C-640D-305-168	30,500	168、144、121	640,000
C-640D-365-144	36,500	144、123、102	640,000
C-640D-305-144	30,500	144、123、102	640,000
C-640D-256-144	25,600	144、123、102	640,000
C-640D-305-120	30,500	120、102、84	640,000
C-456D-305-168	30,500	168、144、121	57,000
C-456D-305-144	30,500	144、123、102	40,000
C-456D-256-144	25,600	144、123、102	57,000
C-456D-365-120	36,500	120、102、84	40,000
C-456D-305-120	30,500	120、102、84	25,000
C-456D-256-120	25,600	120、102、84	25,000
C-320D-256-144	25,600	144、123、102	320,000
C-320D-256-120	25,600	120、102、84	320,000
C-320D-213-120	21,300	120、102、84	320,000
C-320D-305-100	30,500	100、85、70	320,000
C-320D-256-100	25,600	100、85、70	320,000
C-320D-213-86	21,300	86、71、56	320,000
C-228D-213-120	21,300	120、102、84	228,000
C-228D-173-100	17,300	100、86、72	228,000
C-228D-246-86	24,600	86、71、56	228,000
C-228D-213-86	21,300	86、71、56	228,000
C-228D-200-74	20,000	74、64、54	228,000
C-228D-173-74	17,300	74、64、54	228,000
C-160D-173-86	17,300	86、74、62	160,000
C-160D-200-74	20,000	74、64、54	160,000
C-160D-173-74	17,300	74、64、54	160,000
C-160D-143-74	14,300	74、64、54	160,000
C-160D-173-64	17,300	64、54、44	160,000
C-114D-119-86	11,900	86、72、59	114,000
C-114D-143-74	14,300	74、62、51	114,000
C-114D-173-64	17,300	64、54、44	114,000
C-114D-143-64	14,300	64、52、40	114,000
C-114D-133-54	13,300	54、45、36	114,000
C-80D-119-64	11,900	64、53、42	80,000
C-80D-133-54	13,300	54、45、36	80,000
C-80D-119-54	11,900	54、45、36	80,000
C-80D-133-48	13,300	48、40、32	80,000
C-80D-109-48	10,900	48、37、25	80,000
C-57D-76-54	7,600	54、41、28	57,000
C-57D-109-48	10,900	48、37、25	57,000
C-57D-95-48	9,500	48、37、25	57,000
C-57D-89-42	8,900	42、33、23	57,000
C-57D-76-42	7,600	42、33、23	57,000
C-40D-76-48	7,600	48、37、27	40,000
C-40D-89-42	8,900	42、33、23	40,000
C-40D-76-42	7,600	42、33、23	40,000
C-40D-89-36	8,900	36、28、20	40,000
C-25D-67-36	6,700	36、28、20	25,000
C-25D-56-36	5,600	36、28、20	25,000
C-25D-53-30	5,300	30、20	25,000

Pump Jack and Parts:Gear Box/Motor/Control Panel/Structure/Counter/Belt Guard/Other parts
Nude Packing/Spare Parts Packing by 20foot Container/40foot Container
Trade Term:
Payment :T/T,30% Prepayment and then 70% Balance before Delivery
FOB Qingdao/Tianjin or CFR or CIF by train or sea
Delivey time and shipment time according to product quantity
Seller can provide technological guidance and after sale service.

*******************************************************************************************************************************************
Puyang Zhongshi Group Co.,Ltd
Add:2-1-507 International
Trade Center,Zhengzhou
Henan,China 450000
Cell:0086-15903658152/15515578906
Tel:0086-371-87096211
Fax:0086-371-87096212
E-mail:sale02@chinajixie.com
SKYPE ID:allenwangzs
QQ:15515578906
http://vastler.diytrade.com
http://www.chinazsoilfieldequip.com

Price Terms:	FOB/CFR
Payment Terms:	T/T
Packing:	Nude Packing
Standards Certificate:	API 11E Certificate
