| Model: | FD3H |
|---|---|
| Brand: | FARADAY |
| Origin: | - |
| Category: | Industrial Supplies / Machinery / Power & Generating Sets |
| Label: | 250KVA Alternator , Brushless Alternator , Chinese Alternator |
| Price: |
US $2511
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:02 Sep, 2015 |

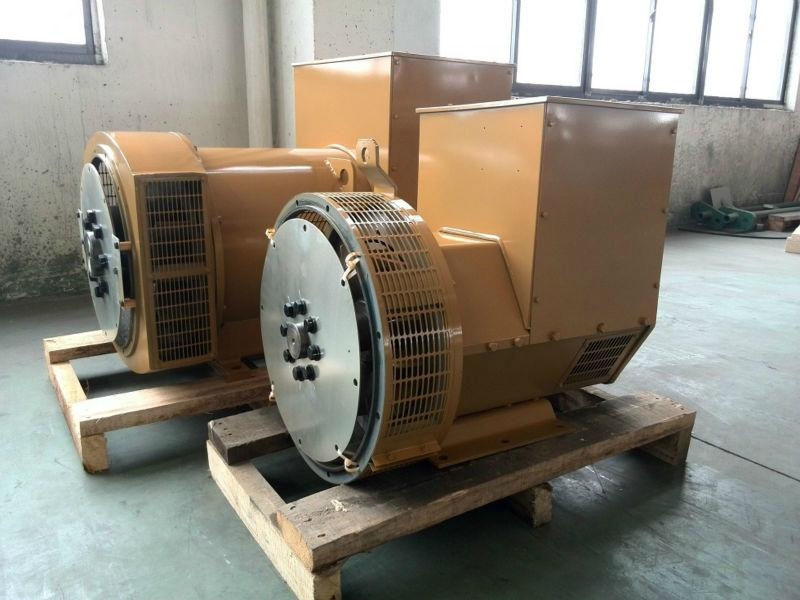

250kva Stamford Exporter AC Brushless Generator Alternator
Product Description
Alternator Specification:
3-PH, 50HZ 1500RPM, 400/230V(Also can be made according to customers’ special requirements)
|
Alternator Model |
FD3H |
|
Power |
250kva / 200kw |
|
Exciter type |
Brushless, Self excitation system |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥3% |
|
Voltage regulation NL-FL |
≤±0.3% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
FARADAY 100% Copper Wire Three Phase AC Alternator
1. Directly Manufacturer
2. 100% Copper wire AC Alternator
3. OEM Service
4. CE/ISO Approved
5. 7-10days lead time
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP23, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town,
Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 °C~ 40 °C)
Relative air damping: not exceed 90%
FARADAY FD3 Series Alternator data for your reference:
|
Model |
Output |
Voltage (V) |
Power Factor |
Speed (rpm) |
Freq. (Hz) |
Pole No. |
|
|
KVA |
KW |
||||||
|
FD3A |
100 |
80 |
380-415V |
0.8 |
1500/1800 |
50/60 |
4 |
|
FD3B |
114 |
91.2 |
|||||
|
FD3C |
125 |
100 |
|||||
|
FD3DS |
140 |
112 |
|||||
|
FD3D |
150 |
120 |
|||||
|
FD3ES |
160 |
128 |
|||||
|
FD3EM |
182 |
145.6 |
|||||
|
FD3E |
188 |
150.4 |
|||||
|
FD3F |
200 |
160 |
|||||
|
FD3G |
230 |
184 |
|||||
|
FD3H |
250 |
200 |
|||||
Our Services
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible
problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Company Information
1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
3) R & D Ability with more than 10 professional engineers
² High voltage generator
² 6 pole and 8 pole ac generator
6 pole and 8 pole ac generator is coming soon.
² Marine generator
4) Main Partner
FAQ
