|Origin:||Made In China|
|Category:||Industrial Supplies / Machinery / Welding Machinery|
|Label:||Sink Welding Machine , Stainless Steel Weld , Spot Welding Machine|
|Min. Order:||1 pc|
Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

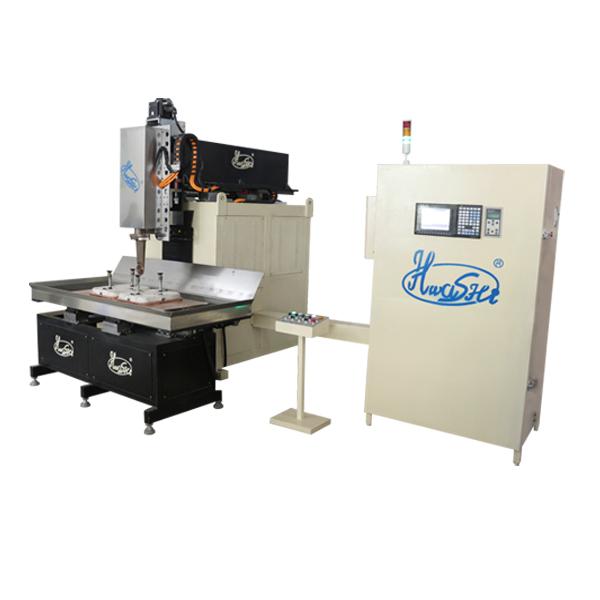

---- Utilize the principle of seam welding with circle welding wheel.
---- Memorize 16 sets of welding models(welding position and welding current of product)
---- Be located inside the designed mould and moves horizontally along the X direction and the moving
area should be no more than 1600mm.
---- The welding electrode will be designed to move vertically along the Y direction and the moving area
should be no more than 600mm.
---- The welding electrode moves from top to bottom within 350mm along the axle Z direction and be able
to conduct 360° of rotation under the control of servo motor.
---- Suitable for welding different angles of products.
Suitable for welding the sink within the range of 1600mmx600mm (adjustable according to your need)
|Input Power||Three-phase 380 V ±10 % 50HZ|
|Rated Capacity||160 KVA|
|Rated Duty Cycle||25 %|
|Max. Secondary Floating Voltage||9.5 V AC|
|Max. Secondary Circuit Current||38000 A|
|Insulation Grade of Program Segment||Grade F|
Time Adjustment Range
of Program Segment
|Heat Adjustment Range||15 % - 99 %|
Power Grid Voltage
When the voltage fluctuates
between ± 10%, the secondary
voltage dluctuates between ≤ ± 3 %
|Water Pressure||0.2 MPa|
|Diameter of Welding Wheel||100 - 120 mm|
|Width of Welding Wheel||3 - 5 mm|
|Speed of Welding Wheel||1800 - 4000 mm/min adjustable|
|Range of X-axis Moving||≥1600 mm|
|Range of Y-axis Moving||≥1600 mm|
|Range of Z-axis Moving||≥350 mm|
|Range of A-axis Moving||360 °|
|Rated Air Pressure||0.8 MPa|
|Air Consumption||1 m3/h|
|Water Temperature||10-20 °C|
|Cooling Water Consumption||1000 L/H|
1) Silicon controlled (Nanche SCR)
2) ABB rectifier diode
3) Japan SIEMENS servo motor
4) Integrated circuit (Motorola of U.S.) and PLC ( Japan SIEMENS)
5) Japan SIEMENS intelligent touch screen control
6) SANWO pneumatic parts from South Korea
7) All digital control system
8) Strictly comply with security standard of CCC and CE.
We have professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years.
The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
