| Model: | GDS1500G |
|---|---|
| Brand: | Gaodetec |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | carousel pump , concrete pump , shotcrete pump |
| Price: |
US $7000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:13 Oct, 2023 |
Customized GDS1500G wet cellular light concrete
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Wet Cellular Light Concrete Pump Description:
The GDS1500G is a gasoline-powered light weight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
Wet Cellular Light Concrete Pump Feature:
· Highreliable direct drive planetary gearbox
· Infinite speed variation
· Easily operating on site work
· Standard spare part supply
Wet Cellular Light Concrete Pump Technical Specification:
|
Model |
GDS1500G |
GDS1500E |
GDS1500D |
|
Pressure |
1.5Mpa/ 3.5 Mpa |
||
|
Output |
1.5-3m3/h |
||
|
Max.Aggregate |
10mm |
||
|
The squeeze hose |
ID 50mm |
||
|
Conveying hose |
ID 38mm |
||
|
Squeeze pump |
GH50-455 |
||
|
Power |
Honda GX390 Gasoline engine |
5.5kw, electric motor |
CFZ12 Diesel Engine, 10hp |
|
Overall dimension(mm) |
1900x850x1250 |
1900x850x1250 |
2150x1100x1150 |
|
Hopper volume |
200 Liter |
200 Liter |
130 Liter |
|
Oil tank |
120 Liter |
120 Liter |
* |
|
Weight |
610kg |
610kg |
660kg |
|
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
||
|
|

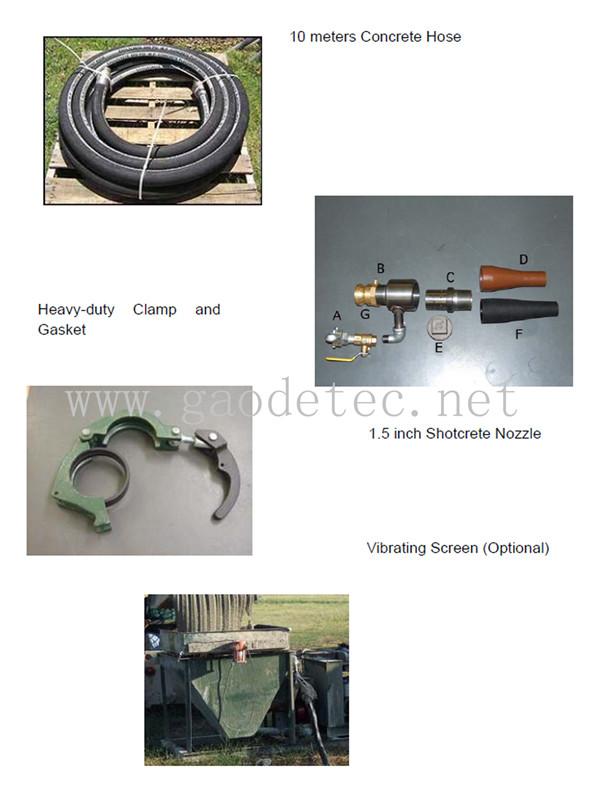

No. |
Description |
Qty. |
Unit |
Remarks |
|
1 |
GDS1500 main machine |
1 |
set |
Chinese squeeze hose or Trelleborg squeeze hose |
|
2 |
conveying hose, L10m |
2 |
pcs |
one2’’, one 1.5’’ |
|
3 |
reducer 2'/1.5' |
1 |
pcs |
|
|
4 |
1.5’’ shotcrete nozzle assy. |
1 |
set |
|
|
5 |
1.5’’nozzle tip |
1 |
pcs |
|
|
6 |
clamp |
2 |
sets |
one 2’’, one 1.5’’ |
|
7 |
clean ball |
2 |
pcs |
one 2’’ , one 1.5’' |
|
8 |
accessories |
1 |
Set |
|
Contact Supplier:
Many thanks for visiting our web, we can supply concrete pump for you. Before we send quotation, please let me know the following question:
1.What output do you want?
2.Do you want electric or diesel? If electric, what voltage it is on your local? It is 3 phase 380V 50Hz in China.
3.What’s your max aggregate size?
4.What project do you do?
We have many standard models for your option, and we also could customize as per your requirement, it can be used for grouting, shotcrete, its output can be adjusted. We also could add Setting accelerator pump for the concrete pump, etc.
| Payment Terms: | TT/LC |
|---|---|
| Packing: | plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised. |
| Lead Time: | in stock. common type 7 working days after confirm |
| Standards Certificate: | CE ISO |
