| Model: | GM-026 |
|---|---|
| Brand: | Graigar Or OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | GM-026 , Cleaning Gloss Meter , Digital Gloss Meter |
| Price: |
US $260
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
| Display | 4 Digits Backlit LCD |
| Measuring Angle | 20/60º |
| Range | 0.1~200 Gloss Units |
| Gloss Units | GU |
| Accuracy | ±1.0GU |
| Resoltuion | 0.1 |
| Repeatability | ±0.5GU |
| Measuring Area | 7x14mm（Ellipse） |
| Data Memorized | 254 Groups |
| Operating Conditions | Temp:0~40ºC Humidity:<85%RH |
| Power Supply | 4x1.5V AAA Size(UM-4) Battery |
| Dimensions | Main Unit:156x67x28mm Probe:58x28x108mm |
| Weight | 190g(Not Including Batteries) |

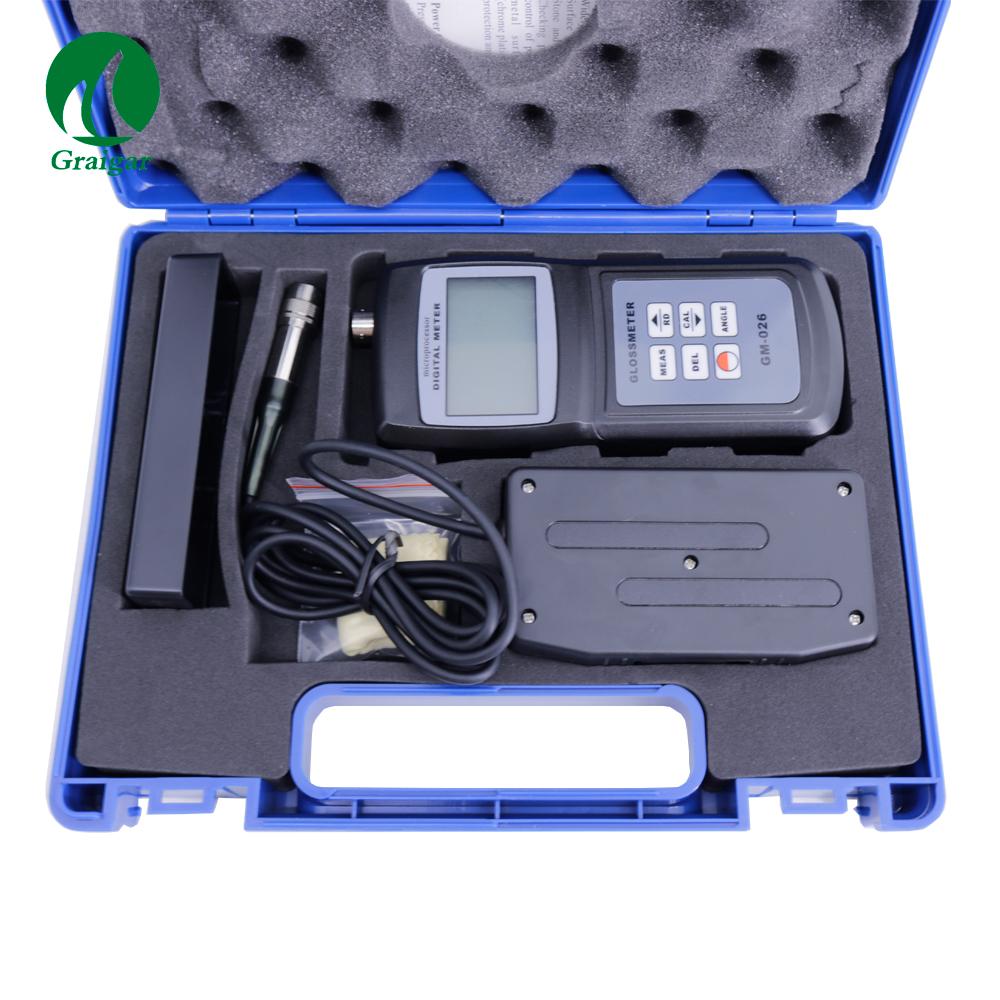

| Stabdard Accessories | Main Unit |
| Holder with Calibration Standard | |
| AC Adapter | |
| Optical Cleaning Cloth | |

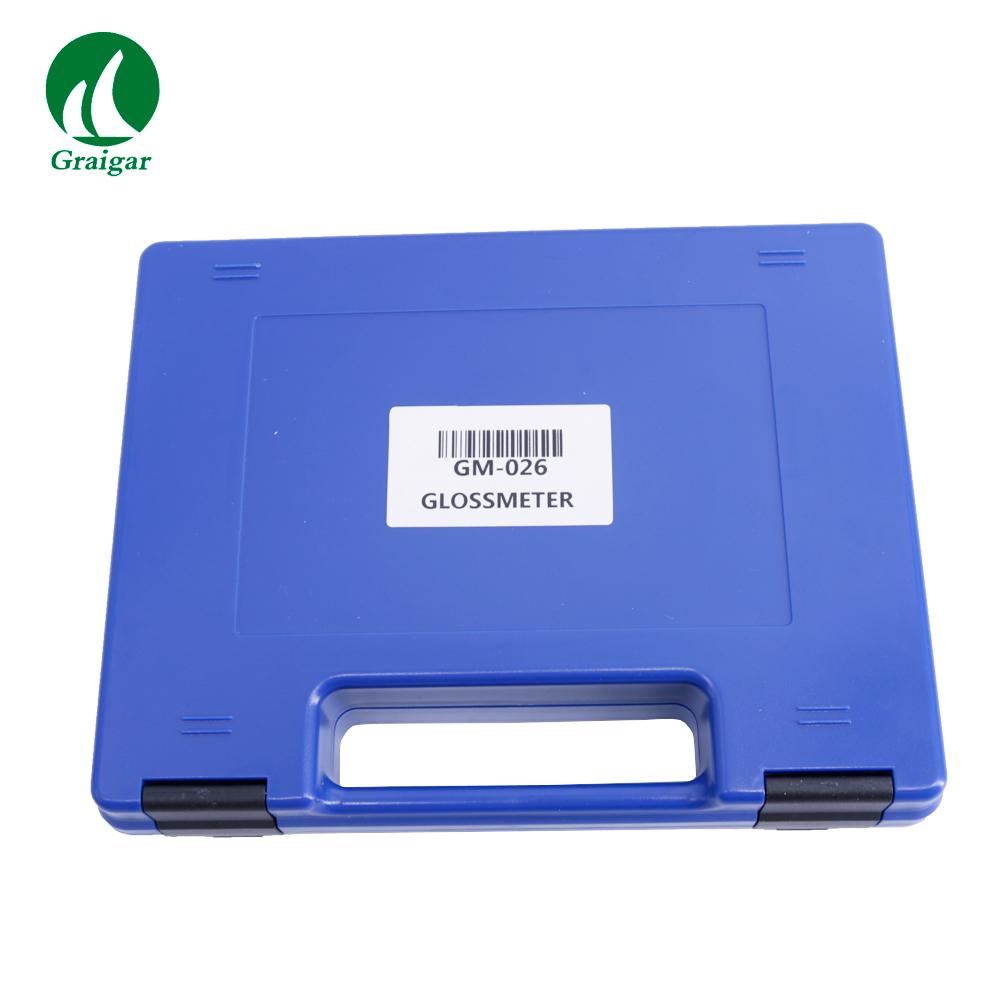

| Carrying Case(B04) | |
| Operation Manual |
