LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315

Model:VTMS00315
Brand:VITECH, UNIQUE
Origin:Made In China
Category:Electronics & Electricity / Switch / Other Switches
Label:membrane switch , membrane keypad , FPC membrane switch
Price: US $5 / pc
Min. Order:50 pc
Inquire Now Add to Basket

Member Information

Detail

DONGGUAN LUPHI ELECTRONICS TECHNOLOGY CO., LTD.

Free MemberGuang Dong - China
Live Chat:Last Online:04 Aug, 2020

View all products. (20)

Product Description

Key Specifications/Special Features

  • Specifications:
    • Size: 5.0 x 1.88"
    • Structure: Overlay: PET Autotex F200 + Spacer: 0.015" closed cell foam + dome Retainer: PET0.075mm + spacer: 0.2mm adhesive + circuit: 0.005" single side FPC + back Adhesive: 3M468
    • S/S printing: 3-color printing on the overlay
    • Keys: 12pcs embossed keys with 12pcs gold plated metal domes/12.2-SDL (AU)-340g
    • LEDs: 3pcs single color LEDs
    • Tail length: 14.17"
    • Connector: 12-pin female connector with latching housing/Memcon MHL-12
    • RoHS compliance

Price Terms:Ex China Factory
Payment Terms:T/T
Lead Time:10-11 working days

Product Image

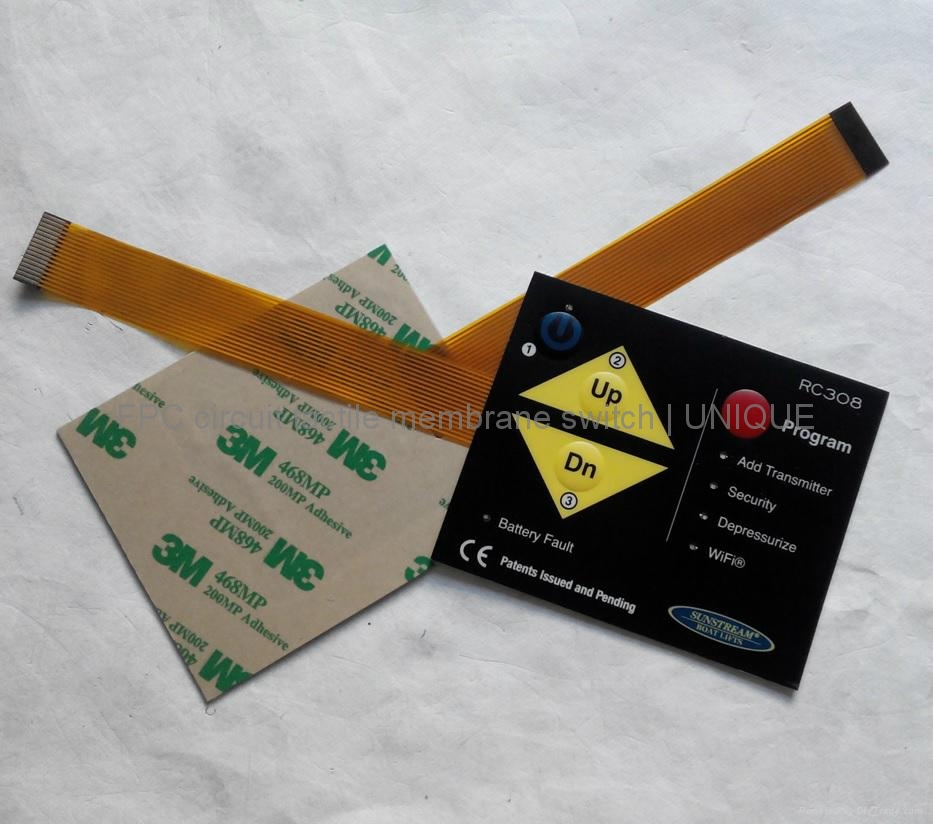

LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 1
Img 1

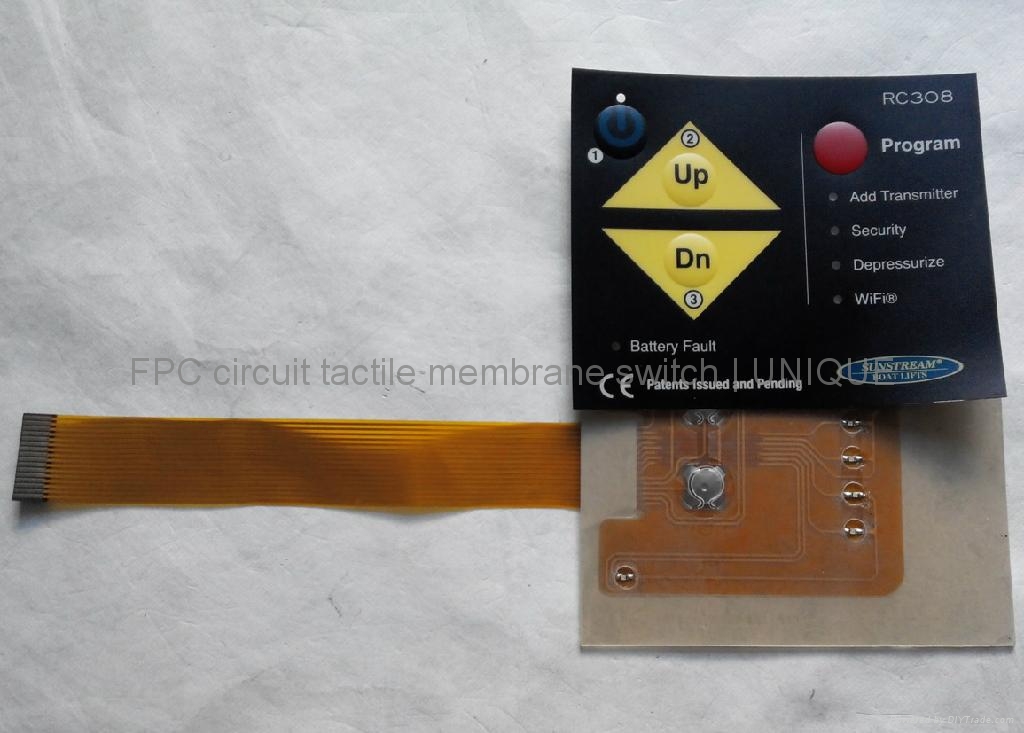

LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 2
Img 2
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 3
Img 3
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 4
Img 4
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 5
Img 5
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 6
Img 6
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 7
Img 7
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 8
Img 8
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 9
Img 9
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 10
Img 10
LED Backlight Tactile Membrane Switch with FPC Circuit, VTMS00315 11
Img 11
