| Model: | AT-140A |
|---|---|
| Brand: | Graigar |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | AT-140A , Plastic Ultrasonic , Thickness Measuring |
| Price: |
US $238
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |

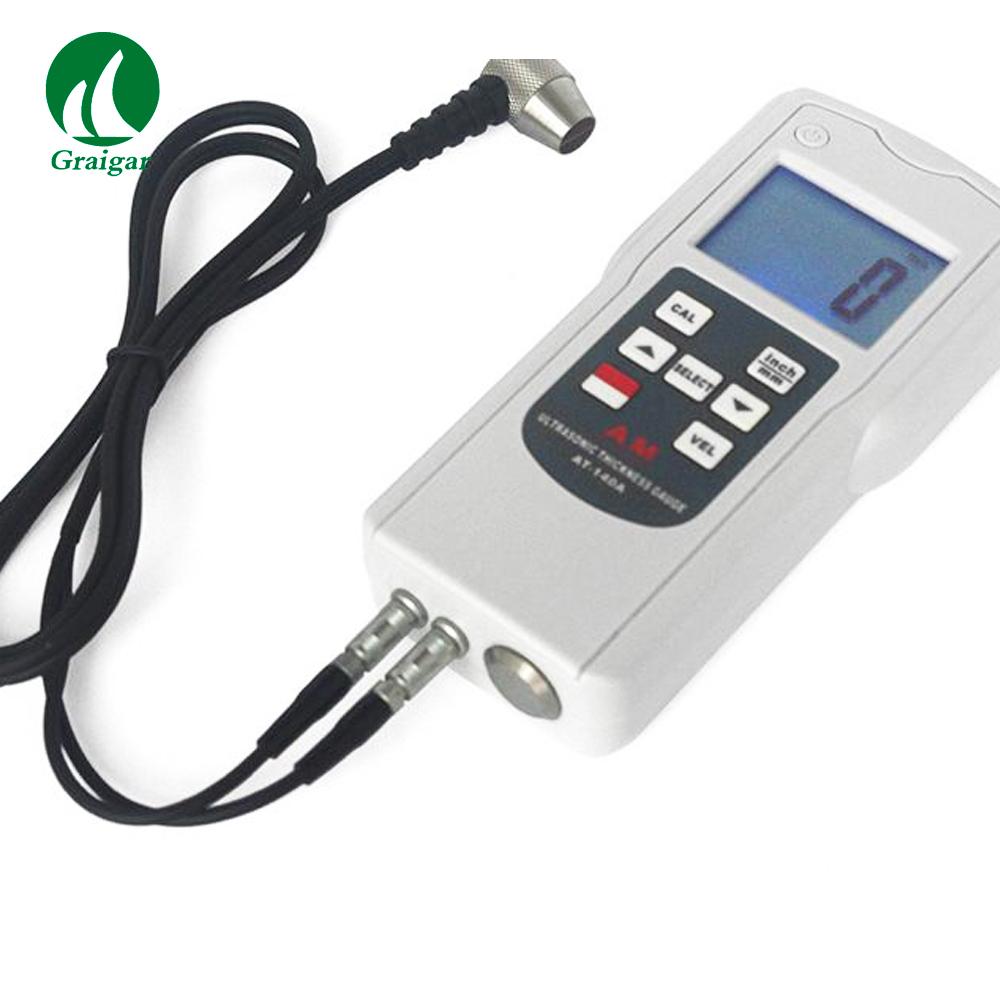

AT-140A Ultrasonic Thickness Gauge Meter Tester 0.1 mm Resolution 1.2~200mm
The package has no battery and Liquid.
Product Description
The Ultrasonic Thickness Gauge AT-140 series include two model; Using the latest high performance and low power consumption micro processing technology,applicable to measure the thickness of metal and other materials base on the ultrasonic operating principle.
Product Feature
* Coupling state prompt functions.
* Automatic shutdown and manual shutdown function.
* Automatic memory material code and sound velocity value, convenient use.
* Use USB data output with connection PC
* Provide Bluetooth data output choice.
Product Parameters
| Resolution |
AT-140A: 0.1 mm |
| AT-140B: 0.01 mm | |
| Range | AT-140A: 1.2~200mm (45# steel ) |
| AT-140B: 1.2~300mm (45# steel ) | |
| Accuracy | ±(0.5%n+0.1) |
| Sound velocity | 1000~9000m/s |
| Operating condition | Temp. 0~50 |
| Humidity: <80%) | |
| Display unit | millimeters and inches |
| Size | 140x70x30 mm |
| Power Supply | 4x1.5vAAA (UM-4)Battery |
| Weight | 130 g (Not including batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
| 5MФ8 Standard Sensor | |
| Coupling Agent(Empty Box) | |
| Carrying Case | |
| Operation Manual |
