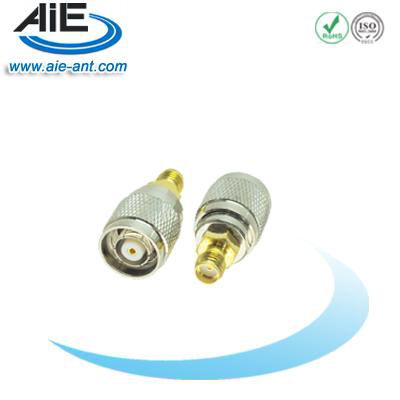

| Model: | AIE-TNC M-SMA F |
|---|---|
| Brand: | AIE |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | RP TNC adapter , SMA Female adapter , SMA to TNC male |
| Price: |
US $1
/ pcs
|
| Min. Order: | 10 pcs |
| Live Chat: |  | Last Online:27 Oct, 2023 |
|
Model |
AIE-adapter-RP/TNC M-SMA F |
|
|
Major Technical Characteristics |
||
|
Type |
AIE-RP/TNC M-SMA F |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC~6GHz |
|
|
Center conductor retention force |
≥0.57 N |
|
|
Insertion Loss |
≤0.20dB |
|
|
Voltage Standing Wave Ratio |
Straight ≤1.22/3GHz |
|
|
Right angle ≤1.30/3GHz |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Material & Plating |
||
|
Body |
Brass |
Nickel plated |
|
Pin contact |
Brass |
Gold or silver plated |
|
Socket contact |
Beryllium-copper Customized) |
Gold or silver plated |
|
Resilient contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel plated |
|
O-ring sealing |
6146 silicone rubber |
|
| Price Terms: | EX-WORK |
|---|---|
| Payment Terms: | TT/WU/PAYPAL |
| Packing: | 100PCS/BOX |
| Lead Time: | 5-7 DAYS AFTER PAYMENT |
