PIPE FITTING HOSE ADAPTER HYDRAULIC FITTING SAE FLANGE 3000PSI
Product Description
Material: Carbon Steel, Stainless Steel
Standard: ST'S Standard Or As customers' drawings
Product Type: Straight, 45Degree, 90Degree
Size: From 1/2" to 2"
Surface plating: Yellow or White
Product Explain:
| |
|
HOSE BORE |
DIMENSIONS |
| PART NO. |
FLANGE SIZE |
DN |
DASH |
F |
B |
L |
| 87311-08-08 |
1/2" |
12 |
08 |
30.2 |
23.9 |
7 |
| 87311-12-08 |
3/4" |
12 |
08 |
38.1 |
31.7 |
7 |
| 87311-12-12 |
3/4" |
20 |
12 |
38.1 |
31.7 |
7 |
| 87311-12-16 |
3/4" |
25 |
16 |
38.1 |
31.7 |
7 |
| 87311-16-12 |
1" |
20 |
12 |
44.4 |
38 |
8.2 |
| 87311-16-16 |
1" |
25 |
16 |
44.4 |
38 |
8.2 |
| 87311-16-20 |
1" |
32 |
20 |
44.4 |
38 |
8.2 |
| 87311-20-16 |
1.1/4" |
25 |
16 |
50.8 |
43.2 |
8.2 |
| 87311-20-20 |
1.1/4" |
32 |
20 |
50.8 |
43.2 |
8.2 |
| 87311-24-20 |
1.1/2" |
32 |
20 |
60.3 |
50.3 |
8.2 |
| 87311-24-24 |
1.1/2" |
38 |
24 |
60.3 |
50.3 |
8.2 |
| 87311-32-24 |
2" |
38 |
24 |
71.4 |
62.2 |
9.8 |
| 87311-32-32 |
2" |
51 |
32 |
71.4 |
62.2 |
9.8 |
| 87311-32-40 |
2" |
64 |
40 |
71.7 |
62.2 |
9.8 |
| 87311-40-40 |
2.1/2" |
64 |
40 |
84.1 |
74.4 |
9.8 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87312 -xx-xx

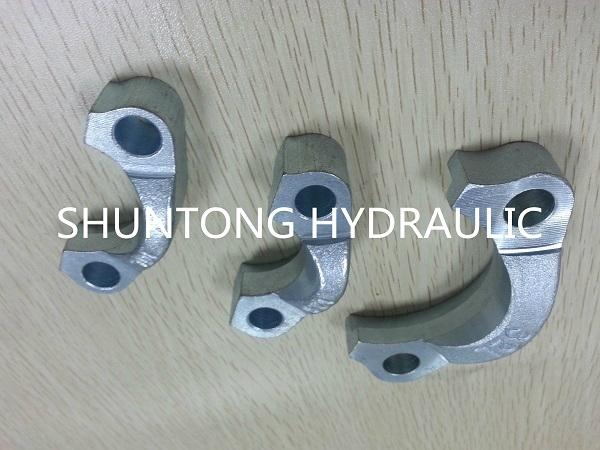

Product Image
