| Model: | SD-SKD190M |
|---|---|
| Brand: | Soda |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 19 LCD , 19 LCD Kit , LCD driver board |
| Price: |
US $135
/ pc
|
| Min. Order: | 3 pc |
| Live Chat: |  | Last Online:07 Feb, 2021 |
Product overview:SD-SKD190M is a special civil display and LCD screen for integrated drive suite, suite with 19 inch LCD screen and civil civilian driver board (optional wide temperature driven motherboard), normal display suite supports 0-50 working environment, installation is simple and cost-effective suite occupied the civil market, products widely used queuing machine indoor display, terminal equipment, a variety of requirements is not high equipment display field.
Product features: 1 SD-SKD190M supports 0 degrees to +50 degrees work environment under normal display image.
2 suite is convenient and simple flexible mounting.
3 suite double signal interface, standard DC2.0 input 12V voltage 4A current.
4 suite, select the original factory new type new LCD screen, package with ultra high performance to price ratio.
5 suite to connect the 12V power is displayed, ultra low power consumption, no requirement for technology, convenient installation.
The detailed product specifications:

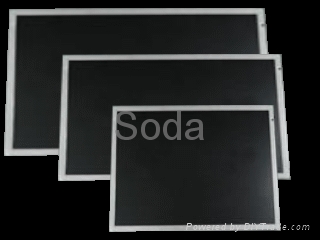

LCD screen size: 19 inches
The liquid crystal type: CCFL tube and LED backlight (optional)
Resolution: 1280*1024
Display area size: 376.32mm (H) *301.06mm (V)
Luminance: 250nits
Contrast: 1000:1
Angle of view: 80/80/85/85
Backlight life: 50000Hrs
Input signal: DSUB (VGA) 15pin/DVI (24+5) pin
Five key board (KEY): NO/OFF (switch), VOL- (volume), VOL+ (volume plus), NENU (menu), AUTO (automatic adjustment), LED (light)
The LVDS signal line: tinned copper wire material, LVDS signal line of high anti jamming
Inverter: high energy and low energy consumption, open lamp protection
Connection wire: good insulation, strong interference resistance
he power supply input: 12V/4A (DC) ≤ 36W, power consumption
The power supply operation: normal / low power mode
Working environment: temperature 0 degrees to +50 degrees, humidity 5 ~ 95%RH (not frozen)
Storage conditions: temperature of -10 degrees to +60 degrees, humidity 5 ~ 95%RH (not frozen)
Configuration list: 19 inch LCD screen, ordinary commercial driver board, board, inverter, LVDS cable, inverter and the key board connecting line, external power supply (optional), VGA analog signal lines (optional), DVI digital signal (optional)
