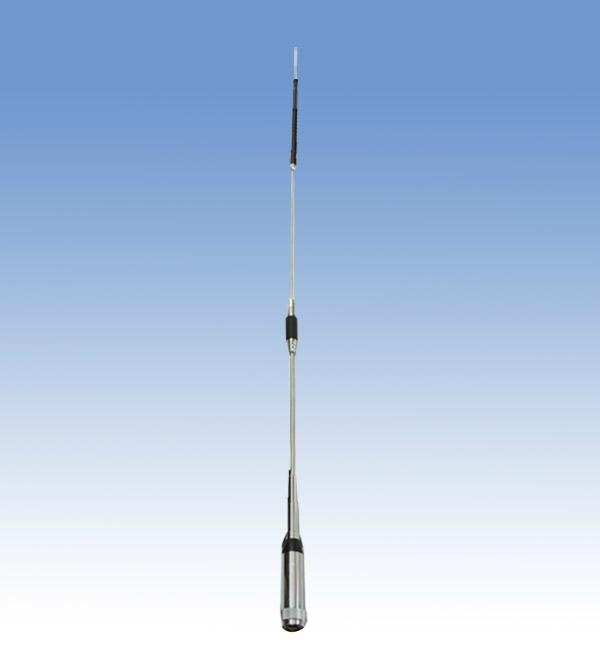

Quad Band Mobile Radio Antenna TC-8900

Quad Band Mobile Radio Antenna TC-8900 1

Quad Band Mobile Radio Antenna TC-8900 2

Model:	TC-8900
Brand:	HYS
Origin:	Made In China
Category:	Electronics & Electricity / Antenna
Label:	quad band antenna , 8900 radio antenna , amateur radio antenn
Price:	-
Min. Order:	-

Inquire Now Add to Basket

Member Information

QUANZHOU TRUEST COMMUNICATION CO. ,LIMITED

Biz MemberFu Jian - China

Live Chat:

Last Online:14 Jun, 2023

Product Description

Antenna Electrical Specifications
FrequencyRange	A.29MHZ (FM RX&TX) B.50MHZ (FM RX&TX) C.144MHZ (FM RX&TX) D. 430MHZ (FM RX&TX) E.118-124MHZ (FM RX)
Impedance	50 Ω
VSWR	≤1.5 (144MHZ/435MHZ)
Gain	3.0dBi/5.5dBi(144/435)
Polarization	Vertical
Maximum Power Input-watts	60W (FM)
Radiation	Omni
Lighting Protection	Direct Ground
Connector	SL-16 Female
Antenna Mechanical Specifications
Height/Dimension	1340±5 MM
Net Weight	500g
Radiating Element Material	Stainless Steel
Diameter Of Chassis Diameter	Ø25±0.2MM

Product Image

Img 1

Img 2

Img 3

Img 4
