| Model: | AT3051LT |
|---|---|
| Brand: | Auto |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | level transmitter , transmitter , smart transmitter |
| Price: |
US $216
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:15 Apr, 2020 |

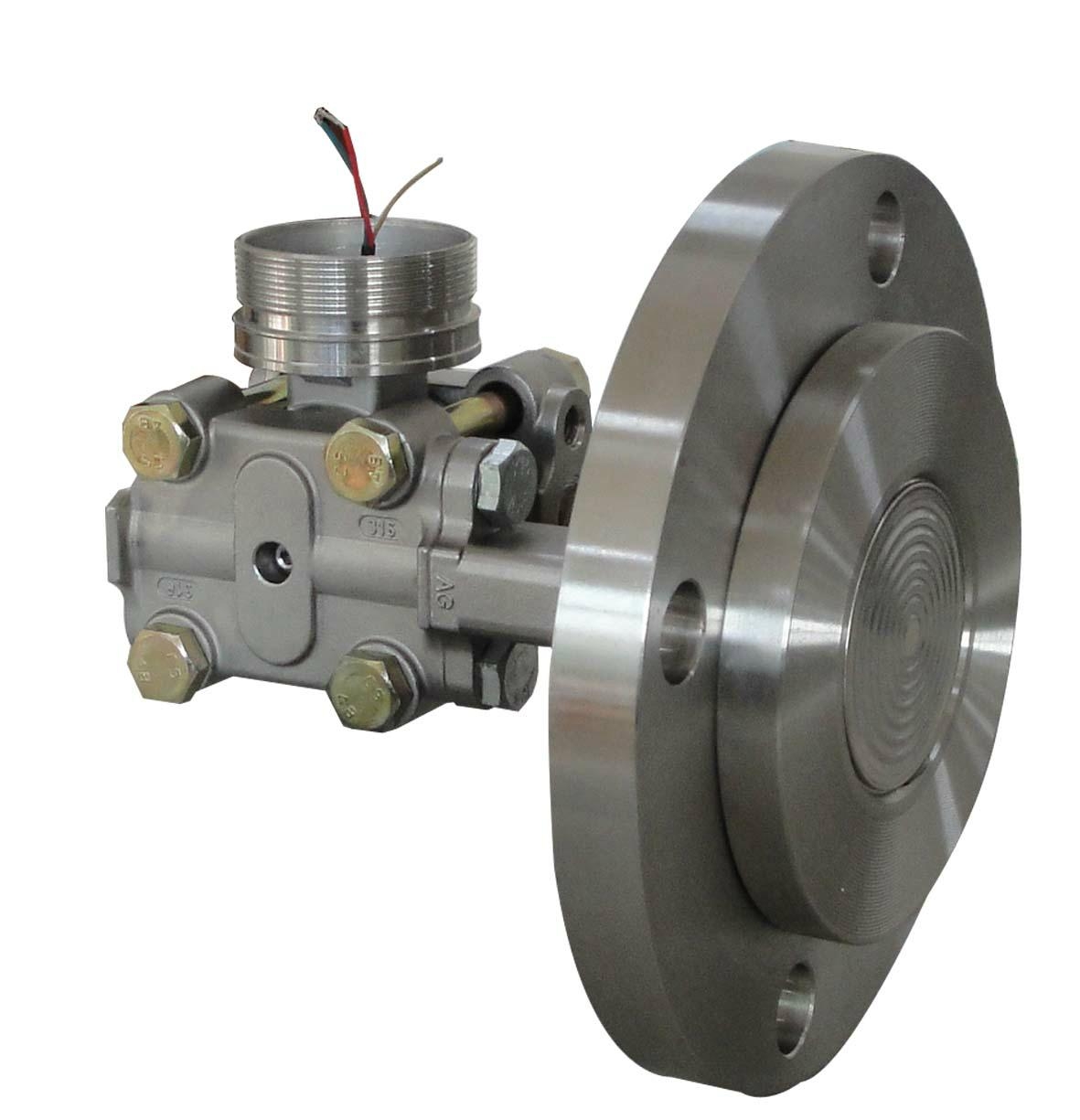

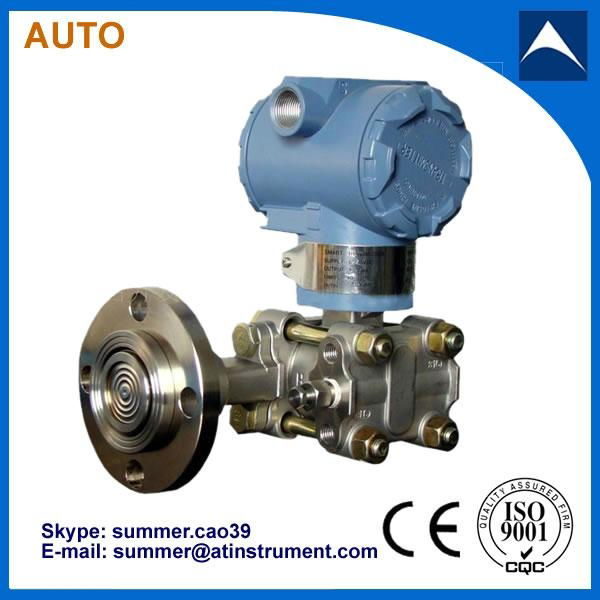

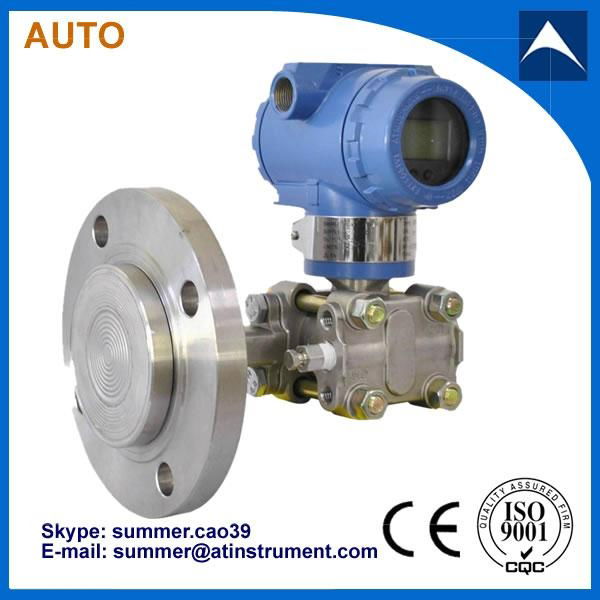

3051 LT Smart flange level transmitter
Application:
Process control. chemical industry
Technical Specifications:
|
Technical Specifications |
|||||||||
|
Pressure range |
Positive pressure |
Negative pressure |
Absolute pressure |
||||||
|
Min range |
Max range |
Min range |
Max range |
Min range |
Max range |
||||
|
200Pa |
10MPa |
-200Pa |
-10MPa |
20kPa |
6.8MPa |
||||
|
Accuracy |
0.075 %F.S., 0.2%F.S.,0.5%F.S. |
||||||||
|
Power supply |
13~45VDC, 24VDC |
||||||||
|
Output signals |
4~20mA,4~20mA/HART, customer |
||||||||
|
e temperature |
Compensation Temperature |
Media Temperature |
Environment Temperature |
Storage Temperature |
|||||
|
10~50°C, -10~80°C, customer |
-25~85°C |
-20~85°C |
-40~125°C |
||||||
|
Temperature drift |
0.02%F.S./°C |
||||||||
|
Electrical connection |
Terminals |
||||||||
|
Protection class |
IP65 |
||||||||
|
Mechanical connection |
M20*1.5(M),1/2NPT(F), 1/4NPT(F),customer |
||||||||
|
Anti-vibration |
20g,20~5000Hz |
||||||||
|
Anti-shock |
100g,11ms |
||||||||
|
Housing material |
Aluminum alloy |
||||||||
|
Operational life |
Over 1×108 Pressure cycling |
||||||||
Dimensions:(mm)
Product Description
3051LT level transmitter used to measure liquids containing solids and sediment level and density, and then transformed into 4-20mADC signal output. 3051LT can communicate with each other with a HART Communicator, through their set, monitor and so on.
Technical Parameter
Max ref accuracy:±0.075%calibration range
Stability:6months,±0.1%URL
Static pressure:13.79Mpa
Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
stability:6months,±0.1%URL
Current output:4 - 20 mA 2 wires Har t Protocol
Power supply:24VDC
Damping time constant：time constant is adjustable, in 0.1 second increments from a minimum to 16 seconds
Order sheet
|
Name |
Specification code |
Explanation |
||
|
3051LT |
|
Level transmitter |
||
|
|
4 |
635-3810 mmH2O |
||
|
5 |
3175-19090 mmH2O |
|||
|
6 |
11730-70380 mmH2O |
|||
|
Output Signal |
E |
4-20mA |
||
|
S |
4-20mA, HART Protocol Communication |
|||
|
Installation flange |
H5 |
2” (DN50) |
||
|
A8 |
3”(DN80) |
|||
|
B10 |
4”(DN100) |
|||
|
Wetted Parts Material |
|
Flange/Joint |
Exhaust/Drain Valve |
Diaphragm |
|
22 |
Stainless Steel |
Stainless Steel |
316L Stainless Steel |
|
|
23 |
Hastelloy C-276 |
|||
|
24 |
Tantalum |
|||
|
Display Header (optional) |
M2 |
Linear Pointer Header (0~100% scale) |
||
|
M3 |
Square Root Instruction Header（0~100% scale） |
|||
|
M4 |
LCD Header（ linear display） |
|||
|
Process Flange |
D1 |
The liquid discharge / exhaust at the side top |
||
|
D2 |
The liquid discharge / exhaust at the side bottom |
|||

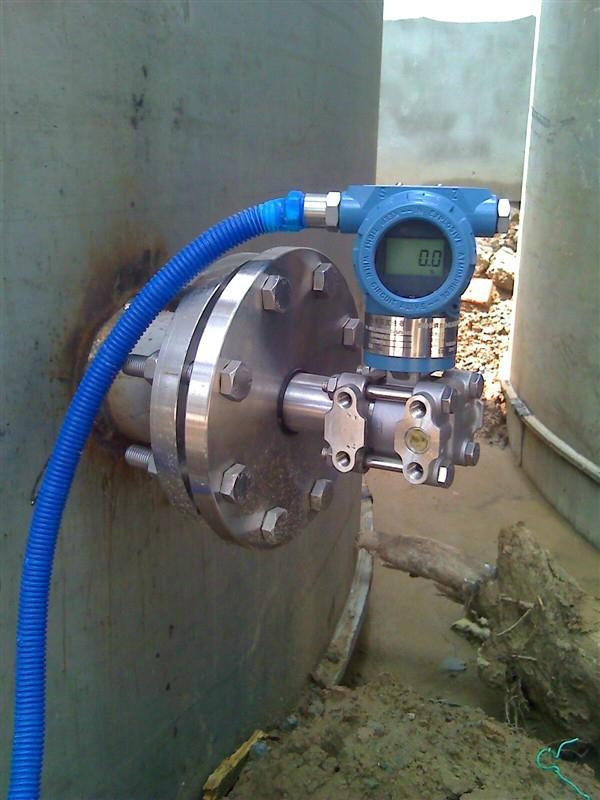

Installation
