Solar Reflecting Mirror Glass Washing and Drying Machine

Model:YQWR2500
Brand:Puyu Machinery
Origin:Made In China
Category:Industrial Supplies / Machinery / Cleaning Machine
Label:Washing Machine , Glass Wash Machine , Solar Glass Washing
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hangzhou PuYu Machinery Equipment Co., Ltd.

Free MemberZhe Jiang - China
Live Chat:Last Online:13 Mar, 2015

Product Description

Solar Reflecting Mirror Glass Washing and Drying Machine



Rangeof Application:

The Solar Reflecting Mirror Glass Washing And Drying Machine is mainly used to clean the surface of the reflecting mirror glass between the processing of glass grinding and coating, it is composed of Feed-in Part → High Pressure Spraying, Hair Brush And Pickling Part → Reaction Part → Disc Brush Part → Hair Brush Part →Drying Part →Feed-out Part. After cleaning, the glass surface satisfied the requirements of mirror making.



The Advantage of The Solar Reflecting Mirror Glass Washing And Drying Machine:
    1.The Solar Reflecting Mirror Glass Washing And Drying Machine adopts 304 stainless steel box and industry aluminum profile rack with long service life, which is artistic and not easy to warp or corrode.
    2. The Solar Reflecting Mirror Glass Washing And Drying Machine using the world's most advanced German solar photovoltaic glass washing machine technology with perfect waterproof properties. We promise: our solar washing machine has good water tightness!

    3.The Solar Reflecting Mirror Glass Washing And Drying Machine adopt gear transmission mechanism, using the upper nylon gear and the below 45# steel gear that makes the smooth and steadier transmission and low noise, as it only wear the nylon gear when it works, so you can simply replace the nylon gear only, which is very convenient.
    4. The Solar Reflecting Mirror Glass Washing And Drying Machine using grey pure nitrile rubber roller with high oil resistance, high wear resistance, high heat resistance and strong adhesion force.

    5. The Solar Reflecting Mirror Glass Washing And Drying Machine with perfect sound insulation noise reduction processing about air blower.

    6. The Solar Reflecting Mirror Glass Washing And Drying Machine with quick pipeline disassembly, easy to clean the water box.

    7. The Solar Reflecting Mirror Glass Washing And Drying Machine adopts PLC automatic control system with Human-Machine Interface, easy to operate.

    8. Each disc brush of the Solar Reflecting Mirror Glass Washing And Drying Machine adopts nylon gear transmission which has the advantage of excellent wear resistance and corrosion resistance.



The Technical Parameters of Solar Reflecting Mirror Glass Washing and Drying Machine:

Model

YQWR1300

YQWR1600

YQWR2000

YQWR2500

Max. Width of Glass

1300mm

1600mm

2000mm

2500mm

Min. Size of Glass

350mm

350mm

450mm

450mm

Table Height

800-900mm

800-900mm

800-900mm

800-900mm

Glass Thickness

3-8mm

3-8mm

3-19mm

3-19mm

Speed

4-12m/min

4-12m/min

4-12m/min

3-8m/min

Total Power

100kw

112kw

119kw

119kw

Floor Space

10030*4450*3520mm

10030*4750*3520mm

11830*5960*3520mm

11830*6460*3520mm

Weight

6500kg

7500kg

9500kg

11500kg

Note: We can design and produce various models according to customers' specific requirements.


Payment Terms:TT/LC

Product Image

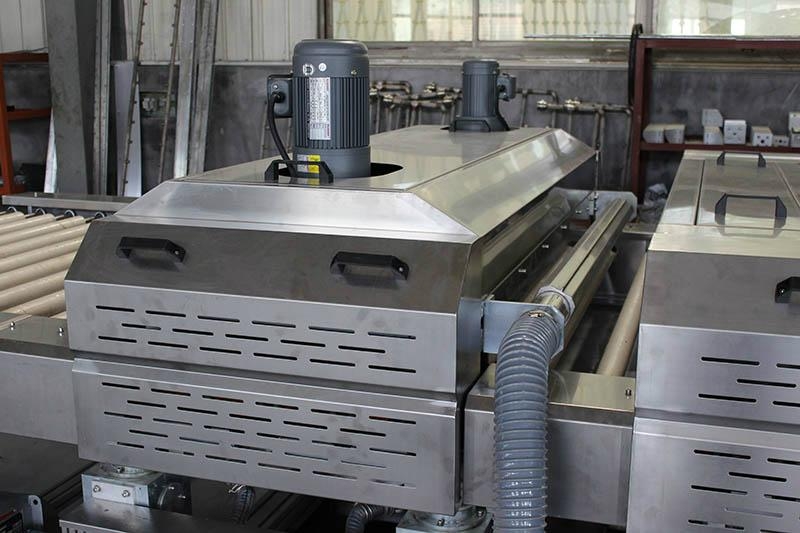

Solar Reflecting Mirror Glass Washing and Drying Machine 1
Img 1
Solar Reflecting Mirror Glass Washing and Drying Machine 2
Img 2
Solar Reflecting Mirror Glass Washing and Drying Machine 3
Img 3
Solar Reflecting Mirror Glass Washing and Drying Machine 4
Img 4
Solar Reflecting Mirror Glass Washing and Drying Machine 5
Img 5
