LCF-VDIRCP Series car rearview camera (using side of the car)

Model:LCF-VDIRCP
Brand:LCF
Origin:Made In China
Category:Security & Protection / Safety Products
Label:car rearview camera , Side of car camera , IP67 waterproof cam
Price: -
Min. Order:10 pc
Inquire Now Add to Basket

Company Information

Detail

Lianchao Future Technology Co.,Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:19 Jan, 2018

Product Description

Model No.:LCF-VDIRCP

1/3 Sony CCD 420TVL, IP67 Waterproof

1/3 Sony CCD 480TVL, IP67 Waterproof

1/3 Sony CCD 600TVL, IP67 Waterproof

2.8mm/3.6mm/6mm lens

Model No.

        LCF-VDIRCP420

LCF-VDIRCP480

LCF-VDIRCP600

Sensor

1/3"Color SONY CCD

1/3" Color SONY CCD

1/3"Color SONY CCD

TV System

PAL/NTSC

PAL/NTSC

PAL/NTSC

Picture Elements

PAL: 500Hx582V                      NTSC: 768H x 582V

PAL: 728Hx488V
NTSC: 762Hx504V

PAL: 976Hx582V
NTSC: 976Hx494V

Resolution

           420 TVL

480 TVL

600 TVL

Sensitivity

0 Lux at F1.2 ( Infrared LED On)

Scanning System

625TVL

2:1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

More than 50 dB, (AGC off)

Auto Gain Control (AGC)

Auto

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

Auto

Infrared LED

12 LEDs

IR LED Range

10 Meter

Video Output

1 Vp-p, 75Ωcomposite , BNC x1

Audio Output

For Option

Mirror Function

For Options

Gamma Ratio

0.45

Lens

f3.6mm Standard Lens,2.8mm/6mm For Options

Exterior Focus Adjustment

N/A

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

0-360°

Tilt Adjusting

0-40°

Power Supply

12V DC ±10%

Power Consumption

210mA

210mA

210mA

Size(LXWXH)

76.4 x 60.5 x 56mm

Net Weight

215g

Waterproof

IP67

Temperature

-10°C to +50°C

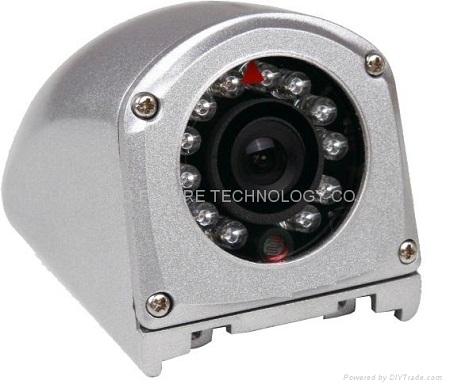

Product Image
