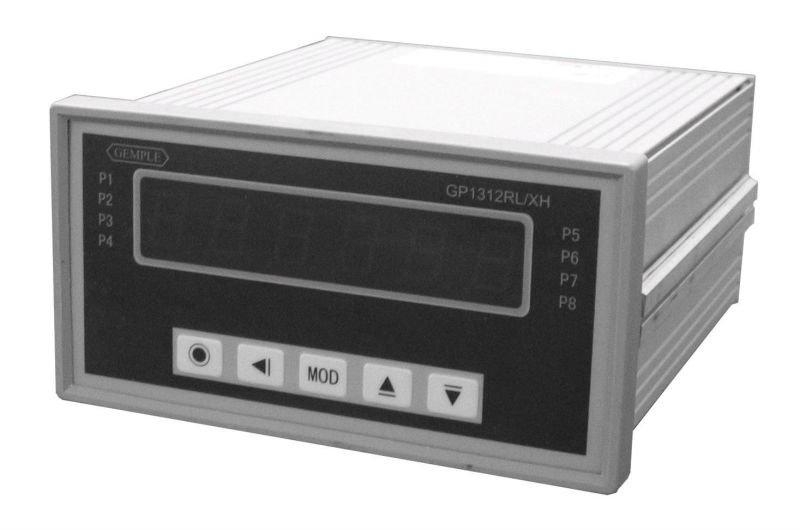

*single-turn absolute encoder
*8 ~ 16-bit parallel signal
*6-bit digital display
* 2 to eight preset position relayswitchoutput
*4 ~ 20mA or RS485output
* panelset to zeroor externalremote setzero
* Panelintelligent featuressettings
Characteristic parameters
|
Operating voltage |
220VAC |
|
Input signal |
Absolute encodersignal, theparallelsignal ,NPN/PNP/push-pull |
|
Coding |
the input code can be set Gray code, or pure binary code |
|
Measuring range |
Absolute encoder lap360 degrees |
|
Measurement accuracy |
Absolute encoder 8256pulses/circle-1665 536 pulses/circle |
|
Digital display |
6 digital display, the decimal point position can be set |
|
Ambient temperature |
-10 to50 Celsius |
|
Relative humidity |
<85% |
|
Output mode |
2 to 8presetswitchingoutputrelaynodeoutput, 220Vac3A, theoutputcycle of40ms
|
|
Zero set |
Can be set zero in any position or set the specified location |
|
ratio set |
Can be set to sourcedisplayor conversion360.000 degree display |
|
Non-linear set |
According to user requirements to completetheinternalvarietyofoperations (linearizationcorrectionandcomparison) |
|
Direction set |
Set rotary encoder rotation direction |
|
Power cut memory |
Selection of theabsolute encoder,mobile encoderevenafter the power cutdoes not affect thepositionafter power |
Dimensions
Dimensions 160mm (width × 80mm (height), depth of 170mm.
The hole size is 152 × 75mm
Terminals
 |
|
