Pure steam sampling condenser

Model:TY/LNQ20190519
Brand:MY DREAM
Origin:Made In China
Category:Industrial Supplies / Chemical Machinery
Label:Pure steam sampling
Price: ¥6000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

WENZHOU TIANYE VALVE CO.,LTD

Free MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:03 Sep, 2022

Product Description

Https://detail.1688.com/offer/1191420869.html? Spm=a2615.7691456.autotrace-offer General.1.400 e23e9xI9K04            Pure steam sampling condenser is designed as a fast and safe mobile condenser. It can be used for sampling any distribution system of clean steam, high purity steam or injection water. Cooling water is connected to the place where it is convenient to provide connection through quick clamp connection. The whole sampler can be disinfected and sterilized by sterilizing kettle.            Product Name: 316L pure steam sampling condenser, sanitary steam sampling condenser, shell and tube condenser, etc.            [Material] 316L stainless steel.            Brand: MY DREAM            [Specification] 8"can be customized to non-standard, piping inlet and outlet or steam piping can be customized according to shell design.            The picture shows the inner and outer mirror polishing of 316L stainless steel pipe 108*4 seamless, steam pipe coil 316L stainless steel pipe 12.7*2 soft seamless steel pipe, import and export 12.7mm, chuck 25.4mm or 50.5mm, stainless steel investment casting clamp, high temperature resistant imported silicone rubber gasket, with better performance.            Both import and export are standard chuck interfaces, which are convenient to install and fast to connect.            [Connection mode]: Fast-loading interface            [Interface size]: 25.4mm, 50.5mm            [Condensation Tube Diameter]: 12.7mm            [Surface treatment]: internal and external mirror polishing            [Product weight]: 7kg            [Applications] Medicine, electronics, water treatment, etc.            [Structural Principle]: Sampling cooler is suitable for water vapor test of steam power plant and heating equipment, and for safe sampling and cooling in the process of testing water vapor quality. Water vapor in boilers and thermal systems is mostly at high temperatures, so it is not easy to sample and detect. It should be cooled in sampling. Therefore, the sample of sampling point should be introduced into the sampling cooler for cooling. Generally, it is required to ensure that when the flow rate is 500-700 mL/min, the sample can be taken below 30-40 degrees to meet the DL/T of power industry. According to the standard 457-91, stainless steel tubes should be used in the sampling tube, and carbon or brass tubes should not be used in the sampling tube, so as to avoid the corrosion and pollution of the sampling medium to the metal in the tube during the sampling process. Collect clean steam for laboratory analysis.            Steam water sampling cooler is suitable for medium sampling such as high temperature liquid and vapor body. The sampling cooler adopts spiral tube surface cooling structure (commonly known as snake coil type). Sampling tubes are made of durable, corrosion-resistant and non-polluting stainless steel tubes, which can avoid metal corrosion pollution during sampling. The product has the advantages of compact structure, high heat transfer efficiency, convenient cleaning and long service life.


Payment Terms:Your shipment
Embed HTML Code:https://v.youku.com/v_show/id_XNDE5MDE0MTAyMA==.html?spm=a2h3j.8428770.3416059.1

Product Image

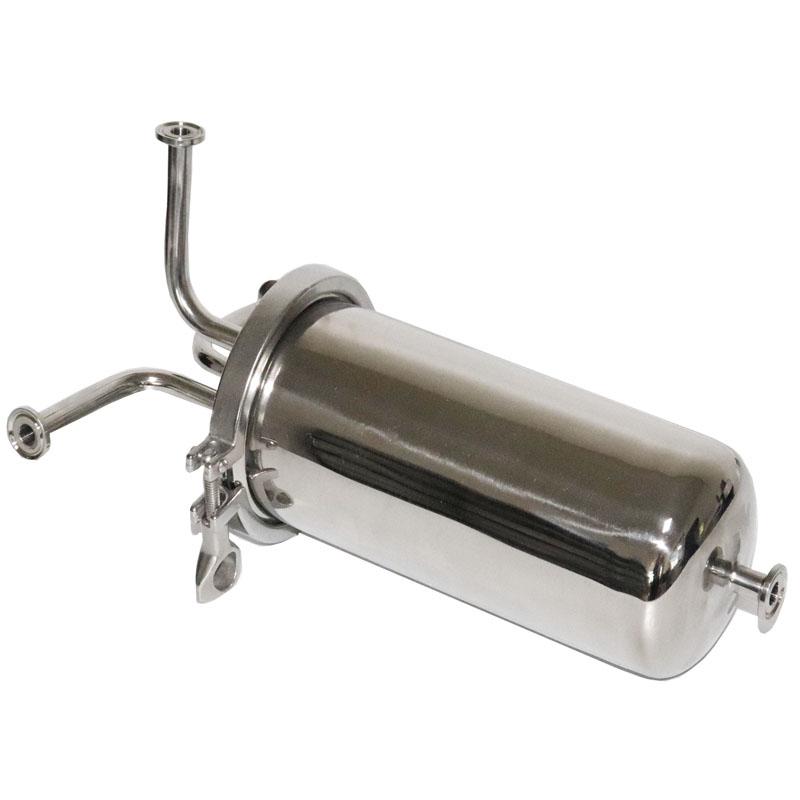

Pure steam sampling condenser
Img 1
Pure steam sampling condenser 2
Img 2
Pure steam sampling condenser 3
Img 3
Pure steam sampling condenser 4
Img 4
Pure steam sampling condenser 5
Img 5
