Automatical transformer oil tester, outputing voltage 60kV,80kV and 100kV

Model:BDV-IIJ
Brand:TOP
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:oil tester , oil test equipment , oil testing machine
Price: US $2000 / Set
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

Chongqing Top Oil Purifier Co., Ltd.

Free MemberChong Qin - China
Live Chat:Last Online:04 Jun, 2015

Product Description

Specifications:

1.high accuracy and anti-interference
2.meet IEC 156 standard
3.varible voltage60KV,80KV

Application:

Automatic Breakdown Voltage Tester of Testing Insulation Oil is produced as per the newest international standards such as ASTM D1816, IEC156, ASTM D899, etc. which adopts industrial single plate integrated circuit, new-style I/O ports,with unique inspection and anti-jamming technology to greatly improve its reliability and functionality.

Features :
1) Fully automatic, control by microcomputer, utilization of new I/O terminal.
2) Numbers of times of testing and idling time of stirring are set via digital setting.
3) Test results displayed and printed out automatically.
4) Strong capability of anti-interference.
5) High accuracy of testing and high capacity of anti-jamming.
6) Easy to operate, small size, light weight which operated in the open air very conveniently and convenient for maintenance
7) Can store 99 groups oil testing data which is convenient to reading and print. The testing data can keep 100 years under the condition of power off.

8) System time can go on running under power off.(the system time just for reference can not be the standard of timing)the system time just for reference can not be the standard of timing)

1.Can upgrade software through RS232

2.High capacity of anti-jamming and high precision of testing.

3.Small volume, light which operated in the open air very conveniently.



Technical Parameters:

Power supply

AC220V±10%,50Hz

Output voltage

0~80KV(60KV,80KV)

Capacity

1.2KVA(1.6KVA,2.0KVA)

Speed of pressure rise

about 2KV/S

Voltage test precision

±3%

Breakdown sensitivity

<2KV

Wave difference

≤3%

Time of breakdown

≤10ms

Working - temperature

0~40

- humidity

The biggest comparatively humidity85%

Reserve circumstance- temperature

-20~60

- humidity

The biggest comparatively humidity75%

- Working altitude

<1500m (if over 1500m can be designed specially)

Dimension

480mm*460mm*460mm





Our oil tester/ analyzer:

Series IIJ-II Insulating oil breakdown strength tester(oil BDV tester)

Series HTJS-H Insulating oil dielectric tester (dielectric loss tester for insulating oil)

Series HTJS-V Tan-Delta Tester (anti-jamming dielectric loss tester for HV electrical equipment) Series TP-3A Water content tester/ moisture sensor

Series TPV-8 Viscosity analyzer

Series TPC-2100 Flash point analyzer (close cup)

Series TPO-2100 Flash point analyzer (open cup)

Series CL-3 Interfacial tension analyzer



Kinds of industrial oil purifier product list we can offer:

1: Insulating oil purifier



1-1: Single stage vacuum insualtion oil purifier

Series ZY: TOP vacuum insulation oil purifier

Series ZY-A: TOP PLC type automatic vacuum insulation oil purifier

Series ZYB: TOP vacuum insulation oil regeneration purifier

Series ZY-W: TOP weatherproof enclosed type vacuum insulation oil purifier

Series ZY-M: TOP Mobile trailer type vacuum insualtion oil purifier



1-2: Double stage vacuum transformer oil purifier

Series ZYD: TOP Double-stage vacuum transformer oil purifier

Series ZYD-A: TOP PLC type double-stage vacuum transformer oil purifier

Series ZYD-I: TOP double-stage vacuum insulation oil regeneration purifier

Series ZYD-W: TOP Enclosed type double stage vacuum transformer oil purifier

Series ZYD-M: TOP Mobile trailer type online transformer oil purification plant



2: Turbine oil purifier

Series TY: TOP vacuum turbine oil purifier

Series TY-R: TOP vacuum turbine oil regeneration purifier

Series TY-A: TOP PLC type automatic vacuum turbine oil purifier

Series TY-W: TOP weather proof enclosed type vacuum turbine oil purifier

Series TY-M: TOP mobile trailer type vacuum turbine oil purifier



3: Lubricating oil purifier

Series TYA: TOP vacuum lubricating oil purifier

Series TYC: TOP vacuum lubricating oil regeneration purifier

Series TYA-A TOP PLC type automatic vacuum lubricant oil purifier

Series TYA-I: TOP vacuum phosphate ester fire-resistant oil purifier

Series TYA-W: TOP weatherproof enclosed type vacuum lubricant oil purifier

Series TYA-M: TOP mobile trailer type vacuum lubricant oil purifier



4: Special application oil purifier

Diesel oil, gasoline oil and fuel oil purifier Series TYB

Transformer oil regeneration device Series BZ

Muti-Functional oil purifying machine Series ZYB

PL Plate pressure high precise oil purifier

JL Portable oil purifying and oil filling machine

TYF Fully stainless steel type vacuum oil purifier

Series EOR Engine oil recycling distillation system





Other Search Key Words:

Vacuum Oil Purifier, Industrial lubricant Oil Filtration, Hydraulic Oil Cleaning, Gear-box Oil Recycling, Compressor Oil Filtering Plant, Coolant Oil Treatment Machine, Diesel Oil Purification,Oil Regeneration, Oil Purifying Plant , Transformer Oil Filtration System, Insulating Oil Treatment Machine, Dielectric Oil Reconditioning Machine, Oil Regeneration, Oil Restoration, Oil Reprocessing,Transformer Oil Purification System, Oil Flushing Equipment, Vacuum Oil Dehydration and Degasification Unit



if you are iterested in our products ,please contact us and we will reply you as soon as possible


Product Image

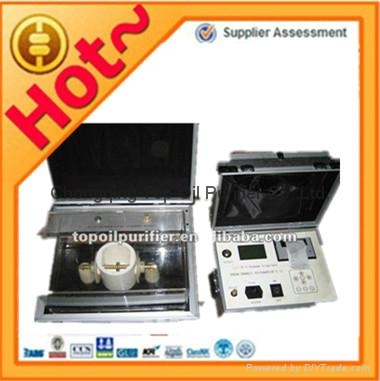

Automatical transformer oil tester, outputing voltage 60kV,80kV and 100kV 1
