Linear Translation Stage Guide
A linear translation stage is used to precisely position an object along a single axis. Linear stages include a moving platform and stationary base joined by a bearing system. Position is controlled with a precision linear actuator like an adjustment screw, micrometer head, or motorized actuator.
GCM-120 Dovetail Translation Stages
Precise and smooth linear translation with no backlash is achievable by
dovetail guides and a spring-loaded micrometer or lead screw mechanism.
The springs pre-load the moving plate, eliminating any backlash. In the
tables below x stands for one-dimensional stage and x-y stands for a
combination of two dimensions. A denotes micrometer drive;B denotes
Part NO. |
Dimension |
Direction |
Travel |
GCM-120101AM |
25X25mm |
X |
±3.25mm |
GCM-120201AM |
40x40mm |
X |
±6.5mm |
GCM-120202AM |
40x40mm |
X-Y |
±6.5mm |
GCM-120201BM |
40x40mm |
X |
±6.5mm |
GCM-120202BM |
40x40mm |
X-Y |
±6.5mm |
GCM-120301AM |
65X65mm |
X |
±12.5mm |
GCM-120302AM |
65X65mm |
X-Y |
±12.5mm |
GCM-120301BM |
65X65mm |
X |
±12.5mm |
GCM-120302BM |
65X65mm |
X-Y |
±12.5mm |
GCM-124/125 Precision Translation Stages
Ball and rod bearing combined with a micrometer (or precision lead screw)
drive provide smooth and creep free linear translation with an accuracy of
0.001mm.
Part NO. |
Dimension |
Direction |
Travel |
GCM-125101AM |
40x40mm |
,X |
±6.5mm |
GCM-125101BM |
40x40mm |
X |
±6.5mm |
GCM-125102AM |
40x40mm |
X-Y |
±6.5mm |
GCM-125102BM |
40x40mm |
X-Y |
±6.5mm |
GCM-125201AM |
52X52mm |
X |
6.5mm |
GCM-125201BM |
52X52mm |
X |
6.5mm |
GCM-125202AM |
52X52mm |
X-Y |
±6.5mm |
GCM-125202BM |
52X52mm |
X-Y |
±6.5mm |
GCM-125301AM |
65X65mm |
X |
12.5mm |
GCM-125301BM |
65X65mm |
X |
12.5mm |
GCM-125302AM |
65X65mm |
X-Y |
±12.5mm |
GCM-125302BM |
65X65mm |
X-Y |
±12.5mm |
GCM-125401AM |
75X75mm |
X |
12.5mm |
GCM-125401BM |
75X75mm |
X |
12.5mm |
GCM-125501AM |
100X125mm |
X |
22.5mm |
GCM-125501BM |
100X125mm |
X-Y |
22.5mm |
GCM-127 High Precision Translation Stages
This structure is pre-loaded and characterized by linear-touch contact
between the rollers and the grooves. Cylindrical rollers are set in two
V-grooves, offering more accurate play-free linear translation. It withstand
higher load from all directions. Resolution of 0.001mm is available.
Combined with differential micrometers (GCM-4111) much higher resolution
can be accomplished. In the table x means a 1-dimensional translation
stage; x-y means a 2-dimensional translation stage assembly; A indicates
the micrometer mounted at the end (center drive), while B indicates the
micrometer at the side (side drive).
Part NO. |
Dimension |
Direction |
Travel |
GCM-127301AM |
50x50mm |
X |
±6.5mm |
GCM-127301BM |
50x50mm |
X |
±6.5mm |
GCM-127302AM |
50x50mm |
X-Y |
±6.5mm |
GCM-127302BM |
50x50mm |
X-Y |
±6.5mm |
GCM-127501AM |
75x75mm |
X |
±12.5mm |
GCM-127501BM |
75x75mm |
X-Y |
±12.5mm |
GCM-127502AM |
75x75mm |
X |
±12.5mm |
GCM-127502BM |
75x75mm |
X-Y |
±12.5mm |

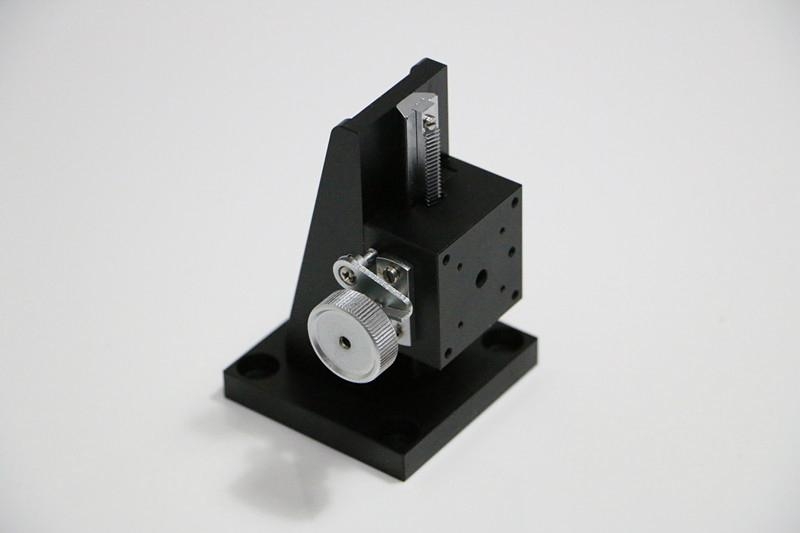

GCM-15 Rack and Pinion Translation Stages
These stages provide the perfect solution for reliable long and fast travel
by rack & pinion drive. One, two and three-dimensioned stages are
available. A ruled scale and veriner permit a readout accuracy of 0.1mm.
In the tables, "x" denotes 1-dimensioned stage in x direction, "z" denotes
1-dimensioned stage in z direction, "x-y" denotes 2-dimensioned stage ,
"x-z" denotes 2-dimensioned stage, "x-y-z" denotes 3-dimensioned stage
Part NO. |
Direction |
Travel |
GCM-150101M |
X |
±35 |
GCM-150102M |
Z |
±25 |
GCM-150103M |
X-Z |
±25 |
GCM-150104M |
X-Y-Z |
±25 |
GCM-150201M |
X |
±25 |
GCM-150202M |
X-Y |
±25 |
GCM-150301M |
X |
±77 |
