double pole lighted rocker switch

Model:PS-S-42
Brand:PRO-SW
Origin:Made In China
Category:Electronics & Electricity / Switch / Rocker Switch
Label:lighted , Illuminated Light , rocker switch
Price: US $0.26 / pc
Min. Order:10000 pc
Inquire Now Add to Basket

Member Information

Detail

Wenzhou Trust Mould Factory

Free MemberZhe Jiang - China
Live Chat:
点击这里给我发消息Last Online:04 Sep, 2014

Product Description

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: PRO-SW
  • Model Number: PS-S-42
  • Max. Current: 20A
  • Max. Voltage: 250VAC
  • Mechanical Life: >100,000 cycles
  • Rating: 16A 250VAC / 20A 125VAC
  • Rated Load: 2/8A 250VAC
  • Contact Resistance: ≤ 50mΩ
  • Dielectric intensity: ≥1500VAC/MIN
  • Withstand Voltage: 1500VAC/min
  • Temperature: -25~85.c
  • Insulation Resistance: ≥100mΩ
  • Electrical life: ≥10, 000 cycles
  • Approval: CE, TUV, ROHS



Lighted rocker switch



Wenzhou Trust Mould Factory is a professional manufacture of rocker switchWe can offer OEM / ODM sevices for rocker switches. We make rocker switch mould and the moulded parts ourse es to ensure the switch quality.



If you're interested in our lighted rocker switch, pls feel free to contact me for inquiry.  If you want other rocker switch types, pls check with me directly.



Here is the details for the outlet power strip lighted rocker switch





1.Specification of Rocker Switch



 Rating

 16A/250V AC, 20A/125V AC

 Rated Load

 2/8A 250V AC

 Contact Resistance

 ≤50MΩ

 Dielectric Intensity

 ≥1500V AC/min

 Withstand Voltage

 1500V AC/min

 Temperature

 -25~85°C

 Insulation Resistance

 ≥100MΩ

 Life

 ≥10,000 cycles

 Pins

 4

 Function

 ON-OFF

 Illumniated

 220V Neon Lamp

 Base

 NYLON 66








2. Features



Easy installation by simply drilling a 3/4" hole, Key hole slot to prevent turning.
Handles up to 16 Amps



3. Advantage





1) We have CE,TUV,RoHS,KC,CB,CQC for rocker switch.



2) Switch electrical lifetime above 10,000 cycles.



3) R & D team for Automation, mould & new product.



4) Automation systems.



5) Mould developing systerms.



6) New item developing according to your samples or drawings.



4. Material of rocker switch parts



Base Plastic --- Nylon 66
Button Plastic --- PC
Terminal surface treatment --- Tin plating
Contact --- Agcdo/Cu

Spring --- Tungsten steel
Waterproof Cap --- PVC (It has waterproof cap if required)
Mount --- Snap in / PCB


Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal / Alipay

Product Image

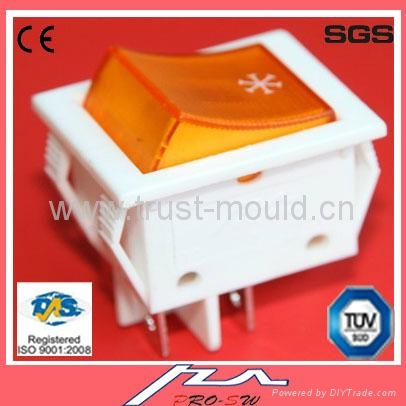

double pole lighted rocker switch 1
Img 1
double pole lighted rocker switch 2
Img 2
double pole lighted rocker switch 3
Img 3
