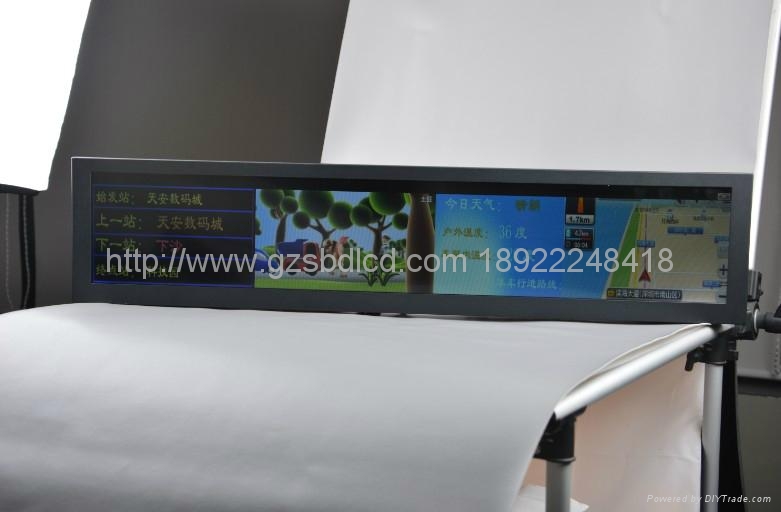

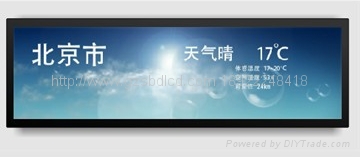

Bar Screen Size: 15, other sizes: 28, 41, etc.
Size: 15 inches
Aspect Ratio: 16:4
Brightness: 500cd/m2
Visibility: 85 L / 85 R / 85 T / 75 B
Brightness: 1000:1

Application:
The main applications : public buses, trains , subways , taxis, tour buses and other modes of transport to move

Tailor-made vehicle : Wide power supply design , the car use
PAL / NTSC dual-mode automatic recognition
Support infrared remote control, you can set the machine to adjust the playback volume size , you can remote shutdown
Screen protection function that protects the screen to avoid scratches, damage, etc.
Real-time updates via 3G

A hardware configuration

Operating system : Android 2.3


Chip Type : ARM Cortex A9


Frequency : Up to 1GHz


RAM512MB DDR2


Built-in 4GB NAND Flash ROM


I/O4xUSB 2.0 Terminal ( supports USB splitter ) Ethernet optical interface SD card slot


Network Built-in WIFI wireless network module : wireless protocol : 802.11b/g/n Wired: Ethernet 10/100Base-T

Support 3G Play


Language English , Simplified Chinese , Traditional Chinese , Japanese, and so on.


Output Specification ratio : 16:9


Solution : 1920 * 1080P ( Full HD )


Media Format Video Format : 1080P HD video decoding


Supported video formats : MPEG 1, MPEG 2, PMEG 4, H.264, H.263,


VC-1, RV30/40


Supported audio track format : PCM, LPCM, MP3, AAC, MPEG Audio, WM


Supported subtitle formats : SRT, SSA, ASS, SUB


Supported audio formats : WMA, MP3, WAV, COG, AAC, M4A


Supported image formats : JPG, GIF, BMP, PNG


Characteristics FTI ( initial setting ) supports touch screen , mouse, keyboard , remote control and air mouse and other audio and video , pictures and other multimedia player comes with a file manager Ank installer Email, Gmail and other email formats ( supports POP, IMAP, Exchange) support for MSN , SKYPE, QQ and other instant messaging software SNS community network software support : Twitter, Facebook FLASH video player supports : YouTube, Tudou, youku and etc.

Two . System Description

Support for video , Flash (SWF) files , web pages (HTML), subtitles, play the picture ; support 1920 * 1080 HD video playback

The main function of the hardware
- USB 2.0 Host
- Video output supports a maximum resolution of 1920 * 1080P
- Fast Ethernet ports
- HDMI output interface can
- Audio output power 2 * (3-10) W
- Support for remote operation
- Power supply :110-240V AC; 12V DC
The main function of the software
- Regular automatic update of multimedia files stored locally on the server from the network

• split-screen partition function, support multi- mode switch
- Update software from a network server terminal
- Content can be loop, can also be played playlist
- Support MPEG1/2/4, AVI, WMV, H.264, JPG, MP3 and other file formats
- Support for real-time text, video spots
- Text file support in English mixed display
- Support English OSD
Support timer switch function
The basic function of the server
- Video files and playlists and managed file transfer
- Machine packet management , machine control ( regular boot , shutdown )
- Subtitles downstream and management
- Subtitle and video files instantly spots
- Player status query , playback information uploads
Advertising management functions
- Uploading files, display files, change file
- Video playlist
- Scrolling message list
- Subtitle sent
- Play Control
- Download Control
Business management functions
- File accepted
- Document Review
- A list of playback time per cycle inquiry
System management functions
- Terminal Equipment Registration
- Terminal equipment state detection
- Terminal equipment to play the content detection
- Software Updates
- Log Query
Terminal Features

Support background image feature
- Support for video , Flash, image , scrolling marquee , clock , weather, and other web formats ;
- Split screen and full screen automatically switches

- Support vertical screen display
- When split-screen image content and video content can be played simultaneously
- Caption content and video content can be associated with play
- Play video and pictures can be mixed
- Sleep mode when you shut down completely


System Features
- Terminal optional flexible form . One machine can be used , that users actually need to select 15-65 inch LCD terminal according to one machine ; You can also select a network player box , with existing televisions and other display terminal
- Control terminal can be realized across the network to achieve a complete control on the Internet
- Terminal combined with the use of passive and active way connected to the server , greatly improving system efficiency
- Terminal has a good safety performance, playing arrangements play encrypted content control .
- Expansion and strong, server -side control unlimited number of terminals , may increase the number of console based on customer needs
- Support batch row piece , realized after row of sheet automatic management functions
- Software interface is simple and practical.


Applications
- Trains, cars, airplanes, ships and other means of transport within the announcement system ;


Other features :

 Support for multiple zoning, size and location of the region and drag any place ;

Support multiple pictures within the picture area to switch playback ;

Support the same play list before switching to play many different styles template ;

Support multi-level user rights management , distribution operations permissions ;

Support group management terminal ;

Support background set the timer switch , restart, online upgrade ;

Play plans to set flexible, year, month , day, hour , minute, seconds set ;

 Support background image feature ;

Three Operating system

The multimedia player terminal uses Android 2.2 operating system, stable, reliable and secure.
