PCB 4G LTE Antenna: Multi band antenna, U.FL/IPEX, adhesive mount(WK-4G002)

Model:WK-4G002
Brand:Walk
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:4G LTE PCB Antenna , 4G internal antenna , 4G LTE Antenna
Price: US $2 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Walk Electronics Co.,LTD

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:03 Jun, 2020

Product Description

3G/4G/LTE Antenna Specifications:

Part Number: WK-4G002

4G/LTE antenna Specification

Frequency Range

800/900/1800/1900/2100/2600MHz

V.S.W.R

3.2:1

Band Width

±90/280 MHz

Gain

3.0dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

50

Impendence

50 ohm

Max wind speed

200km/h

Mechanical Specifications

Size

104×19×1mm

Weight

<100g

Cable

200mm 1.13mm(D) cable, 1.37mm(D), RG178 or others

Connector

U.FL/IPEX, W.FL, SMA, SMB, FME, FAKRA or others

Mounting

Adhesive(3M tape)

Housing

N/A

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

MTBF=1×10-6/pc.hr

40℃±5℃, 2000pcs  For 480h


Payment Terms:TT in advance; Western Union
Lead Time:5-7 days

Product Image

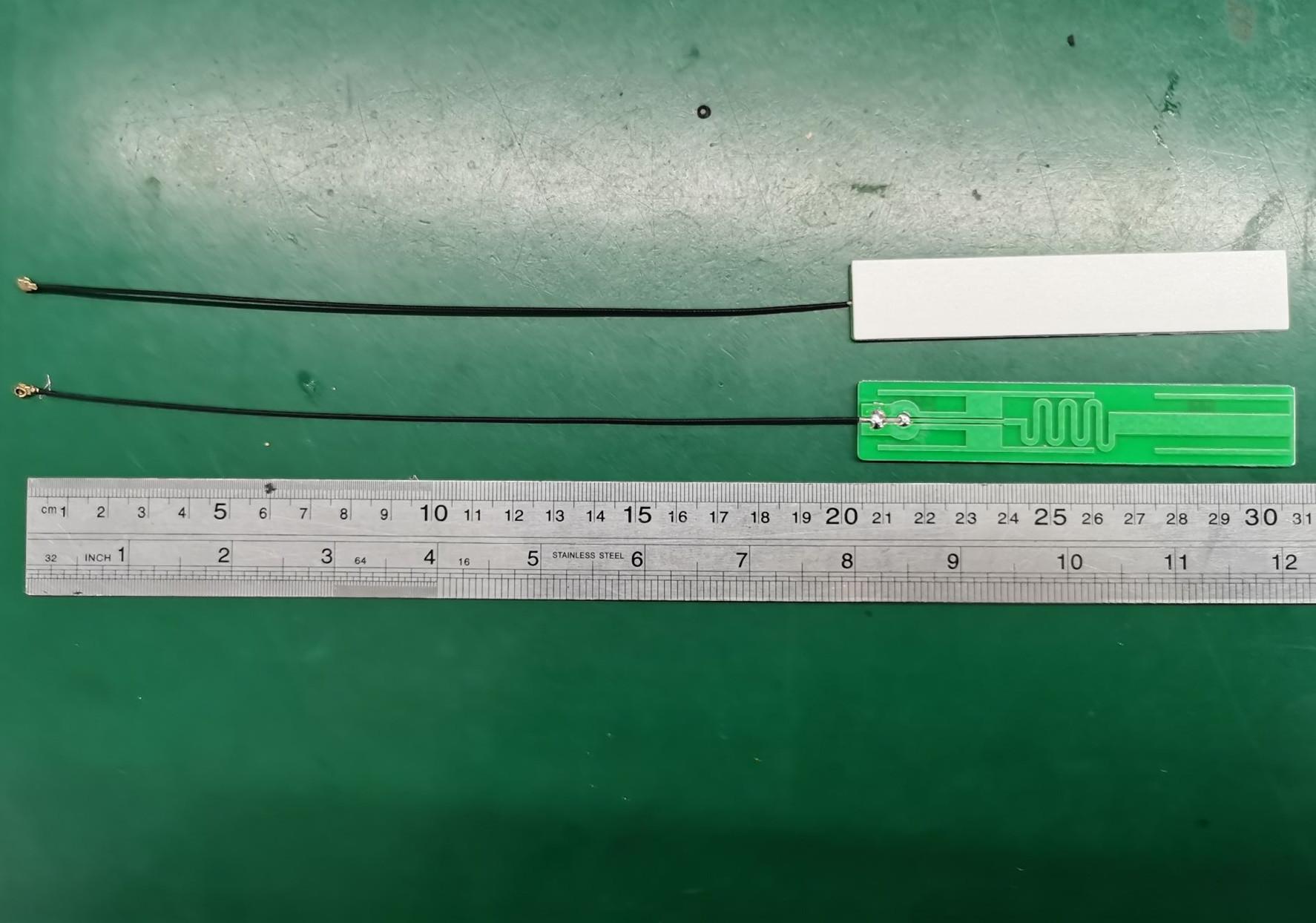

PCB 4G LTE Antenna: Multi band antenna, U.FL/IPEX, adhesive mount(WK-4G002) 1
Img 1
PCB 4G LTE Antenna: Multi band antenna, U.FL/IPEX, adhesive mount(WK-4G002) 2
Img 2
