Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester

Model:ADM01
Brand:GRAIGAR
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Other Electronic Instrument
Label:ADM01 , DIGITAL MULTIMETER , Capacitance Tester
Price: US $20 / pc
Min. Order:5 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:23 Nov, 2022

Product Description

Overview:

Overview:

This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function. This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.

This operating instruction covers information on safety and caution.   Please read relevant information carefully and observe all the warnings and note strictly.

The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.

Features:

2000 digits display

Auto range

Data hold

Backlight

Diode test

Continuity test

Maximum Value hold

case for protection

Temperature measurement(Only ADM02 )

Frequency measurement:0-20kHz ±(1.0%+2) (Only ADM01)

Auto power off

Battery low indication

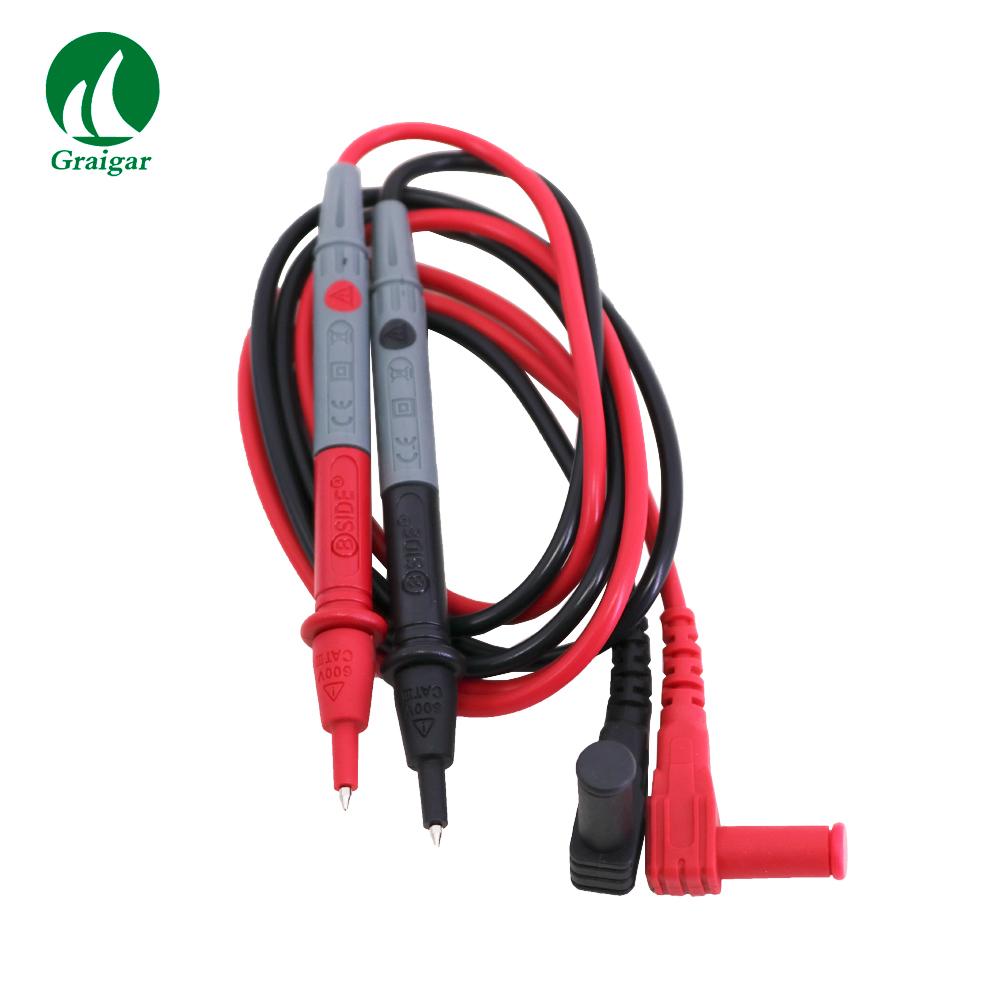

High quality test leads

Specifications:

DC Voltage  200mV/2V/20V/200V ±(0.5%+2) 600V±(0.8%+2)

AC Voltage  2V/20V/200V/600V ±(1.0%+3)

DC Current  200μA/2mA/20mA/200mA ±(1.0%+3) 10A±(3.0%+3)

AC Current  200μA/2mA/20mA/200mA ±(1.2%+3) 10A±(3.0%+5)

Resistance  200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+2)20MΩ±(1.0%+2)


Product Image

Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 1
Img 1
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 2
Img 2
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 3
Img 3
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 4
Img 4
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 5
Img 5
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 6
Img 6
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 7
Img 7
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 8
Img 8
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 9
Img 9
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 10
Img 10
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 11
Img 11
Mini BSIDE ADM01 AutoRange Digital Multimeter with Frequency Tester 12
Img 12
