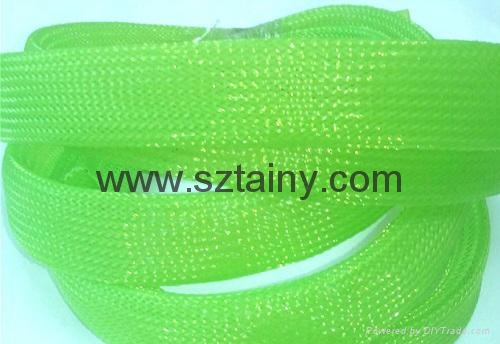

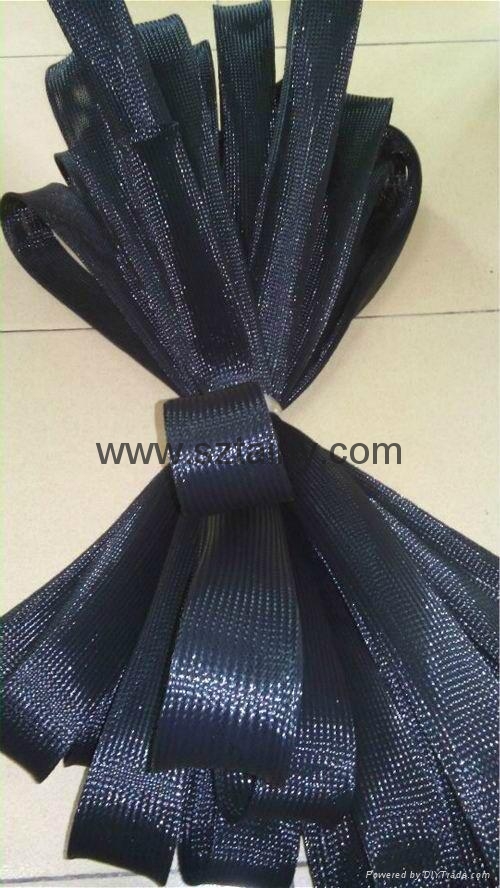

PET expandable braid cable
Specifications
Economical & easy to install light weight, and flexible
Easy to be Cut & abrasion resistant
Halogen free
Technical data:
1. Size: 1-1/2 inch(38mm)
2. Operating range: -103F to 257F (-75C to 125C) temperature range
3. Melt Point:446F (230C)
4. Expands up to 150%
5. Available up to 4" in diameter
6. Colors:black, grey, white, red, green, blue, yellow, purple, pink, orange etc.
7.Certificate: SGS, UL, RoHS approved
8.Halogen free
Advantages:
1. Economical & easy to install light weight, and flexible
2.Resists gasoline, chemicals & cleaning solvents
3.High tensile strength
4. Easy to be Cut & abrasion resistant
Description and Application:
Our PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.
Specification:
Part Number |
SIZE |
Material |
Expandable Range |
Temperature Range |
|||
mm |
inch |
mm |
inch |
||||
PET03 |
3MM |
1/8" |
Polyester(PET) |
2.4--6.4 |
3/32"--1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET06 |
6MM |
1/4" |
Polyester(PET) |
3.2--11.1 |
1/8"--7/16" |
-103°F-- 257°F |
-75°C-- 125°C |
PET08 |
8MM |
5/16" |
Polyester(PET) |
6.4--12.7 |
1/4"--1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET10 |
10MM |
3/8" |
Polyester(PET) |
4.8--15.9 |
3/16"--5/8" |
-103°F-- 257°F |
-75°C-- 125°C |
PET12 |
12MM |
1/2" |
Polyester(PET) |
6.4--19.1 |
1/4"--3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET16 |
16MM |
5/8" |
Polyester(PET) |
9.5--25.4 |
3/8"--1" |
-103°F-- 257°F |
-75°C-- 125°C |
PET19 |
19MM |
3/4" |
Polyester(PET) |
12.7--31.8 |
1/2"--1-1/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET25 |
25MM |
1" |
Polyester(PET) |
15.9--38.1 |
5/8"--1-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET32 |
32MM |
1 -1/4" |
Polyester(PET) |
19.1--44.5 |
3/4"--1-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET38 |
38MM |
1 -1/2" |
Polyester(PET) |
25.4--63.5 |
1"--2-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET45 |
45MM |
1 -3/4" |
Polyester(PET) |
31.8--69.9 |
1-1/4"--2-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
PET51 |
51MM |
2" |
Polyester(PET) |
38.1--88.9 |
1-1/2"--3-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET64 |
64MM |
2 -1/2" |
Polyester(PET) |
44.5--114.3 |
1-3/4"--4-1/2" |
-103°F-- 257°F |
-75°C-- 125°C |
PET76 |
76MM |
3" |
Polyester(PET) |
63.5--120.7 |
2-1/2"--4-3/4" |
-103°F-- 257°F |
-75°C-- 125°C |
