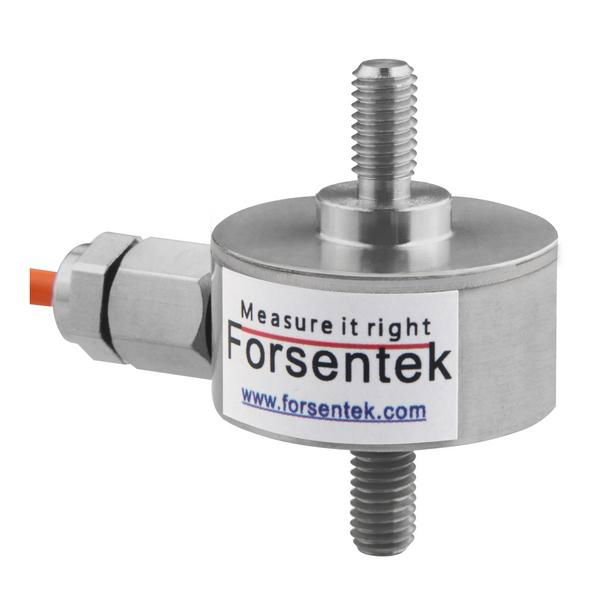

Tension load cell 5kg 10kg 20kg 30kg 50kg 100kg

Model:	FL25
Brand:	Forsentek
Origin:	Made In China
Category:	Electronics & Electricity / Other Electrical & Electronic
Label:	tension load cell , tension force sensor , force transducer
Price:	-
Min. Order:	2 pc

Inquire Now Add to Basket

Member Information

Forsentek Co., Limited

Free MemberGuang Dong - China

Live Chat:

Last Online:12 May, 2023

Product Description

Features:

Stainless steel
Mounting bolts on both ends,easy to install
Tension and compression force measurement
Custom design available

Dimensions

拉力传感器500N 50kg

Specifications:
Capacity:3kg 5kg 10kg 20kg 30kg 50kg 100kg
Rated output:1.6-2.0mV/V
Excitation:5-15V
Zero balance:2% R.O.
Nonlinearity:0.3% R.O.
Hysteresis:0.3% R.O.
Non-repeatability:0.1% R.O.
Creep(30min):0.1% R.O.
Safe overload:150% F.S.
Ultimate overload:200% F.S.
Operating temperature:-20...+80C
Protection class:IP64
Cable:3*1000mm

Tension load cell

tension load cell

Payment Terms:	T/T,Western Union,Paypal
