UV ink automatic screen printing machine for paper

Model:TM-Z1
Brand:Tamprinter
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:auto Screen Printer , paper screen print , auto Shell Printer
Price: US $10000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN TAMPRINTER PRINTING MACHINERY CO., LTD.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:15 Jan, 2023

Product Description

1. Points that users of this product are concerned about

1.1,video

TMP-70100 Oblique Arm Flat Screen Printer+TM-UV750-L UV drying machine with robot arm =tm-z1 paper printing Video:
http://www.tamprinter.com/sdp/1963483/4/cp-7340499/0/Sheet_Screen_Print_Case.html

Serbian customer working HD Video can see uv effect:
https://youtu.be/REWl8zH-2Ik

 Screen printing and then grab the paper and drag to the right, working short Video:
 https://youtu.be/_LHgMCYg-ks

Self-drying ink screen printing, then drag the paper to the left to the production line, short Video of work:
https://youtu.be/lsC3sVF322E

Machine action demonstration + salesperson explanation Video:
https://v.youku.com/v_show/id_XNDY1MzM4OTk4OA==.html?spm=a2hbt.13141534.app.5~5!2~5!2~5~5~5!2~5~5!2~5!2~5!2~5~5!3~A

Various combinations of paper printing Video:
http://youtu.be/3bpxVNTvWF0
http://v.youku.com/v_show/id_XNjg1ODc3NDI0.html

Auto work video
With normal uv tunnel run to left
https://www.youtube.com/watch?v=REWl8zH-2Ik
With normal uv tunnel run to right
https://www.youtube.com/watch?v=_LHgMCYg-ks
https://www.youtube.com/watch?v=3bpxVNTvWF0
with led uv tunnel
https://youtu.be/6NGKTmtbf-w
with conveyor line run to left
https://www.youtube.com/watch?v=lsC3sVF322E

1.2,parameter

Type

TMP-70100

                   HS CODE                 8443192290

Worktable size(mm)

800*1100

Max print area(mm)

700*1000

Max plate size(mm)

1000*1300

Min plate size(mm)

550*650

Thickness of substrate (mm)

0-20

Printing speed(pcs/h)

500-1200

Working air pressure(Mpa)

0.3-0.5

Gas consumption(0.6Mpa)(L/pcs)

13/pcs

power(kw)

2.3

Work table minimum relative height (mm)

820

Overall Dimension(l×w×h)(CM)

160*125*130

Plywood 177*138*145=3.3CBM

weight (kg)

485

Rated voltage(V/Hz)

220V50Hz

Model Parameter

TM-UV750-L

Conveyorbelt width(mm)

730

Effective range (mm)

750

Product max height (mm)

40

Conveyor speed (m)

2~20

Power(P/V/Hz)

3/380/50

UV lamp(KW/2pcs)

5.6

Conveyor power(W)

90

Total power(KW)

12.1

Dimension(L*W*H)

4050*1200*1350

Plywood 4.2X1.2X1.66m= 8.5CBM

Weight(kg)

300

Robot arm

Type

robot arm 1500

Working air pressure(Mpa)

0.3-0.5

Gas consumption(0.6Mpa)(L/pcs)

0.5

power(kw)

0.75

Rated voltage(V/Hz)

AC220v/50Hz

Take the feed rate (pcs/h)

1000

Dimension(L*W*H)mm

L1500* W 700* H 200

weight(kg)

40

all above plants /2 plywood /930kg/ 12.6m³

1.3,Customs Declaration Details

NOS.1 Product Code: 8443192290
Description: Other flat screens
Reporting elements:
1 Name: screen printing units
2 Purposes: printed patterns on flat products, text
3  Principle: When printing squeegee squeeze through, so that the ink is transferred through the mesh part of the graphic to the substrate to form the same with the original graphic
4 feeding mode: Manual
5 pieces Size:    700 * 1000mm
6 brands:            TAMPRINTER
7  Model:.           TMP-70100

NOS.2 Product Code: 8419399030
Product Description: Industrial furnaces and ovens with other resistance
Reporting elements:
1  Name: UV light curing machine
2  Uses: dried product
3  heating principle: heating and drying the product by UV lamp
4  Brand:  TAMPRINTER
5  Model:. TM-UV750-L
6  whether the humidity function: no

NOS.3 Product Code: 8428399000
Product Description: Mechanical suction mouth rewinding machine
Reporting elements:
1  Name: Robot
2  Purposes: printed material received
3  Brands: TAMPRINTER
4  Models: None

1.4,Features:

1 . Internal regulator circuit

2. 12N Big torque

3. With acceleration and deceleration control procedures, and durable machine running smoothly

4. South Korea imported linear bearings using SF, action fast and stable and low noise

5. Adjustable clamp the material position with switch control box, easy to operate

6. All optical signal isolation, interference, stability

7. Precision photoelectric switches, the accuracy of 2mm

1.5,The main components of mechanical nozzle configuration

Stepper motor --------------- BSHB31115-3

Stepper drives --------------- BUCOM-BK3722M

Master chip ----------------- ATMEL-ATmega-8

Bearing --------------------- Korea SF SBR20LUU

Timing belts -------------------Alexander 2943L20

Relays -------------------    OMRON LY2N

Air switch-----------------   ZHENGTAIDZ47-60

Key switch-----------------  JINHONGK16-311GL

Close to the switch -----------Autonics Pr18-5dp

Photoelectric switch ----------OMRON EE-SX-671R

Pneumatic clamps   -----------------   TIANXINGJHD1615

Solenoid valve ----------------SYMC STG2521-08

2. Why is this product important?

The paper printing industry usually has silk screen printing and offset printing
Q1: Why choose silk screen?
Answer 1: The ink of silk screen printing is several times or even tens of picometres thicker than that of offset printing, so if you look closely, you will find that the silk screen printing will be a little raised, and you can feel the thickness of the silk screen printing by touching it with your hand. This characteristic of silk screen printing is not available in offset printing, and offset printing is basically very flat.
Therefore, if there is a requirement for the three-dimensional effect of the product pattern, or the artistic effect is exquisite, and the equipment investment budget does not want to be too large, silk screen printing will be selected.
Q2: Why choose this uv screen printing?
Answer 2: Because the fastest drying is uv ink.
Saves a lot of stacking space compared to using self-drying inks
Compared with the use of ink that requires infrared drying, the equipment investment is much less, the equipment occupies a small area, and the power consumption is less.
Question 3: Why is it equipped with a diagonal arm screen printing machine? Why is it equipped with a blanking manipulator?
Answer 3: The inclined arm screen printing machine is the cheapest style of the automatic screen printing machine. Paper printing usually does not require too high precision, so the suitable one is the best. Equipped with a blanking manipulator to save labor, and automation is not easy to make mistakes.

3. Why you are worth buying

Market advantage
South America and Europe most channel sales do well,
Aluminium labels printing ,Aluminium ceiling auto screen print, stainless labels printing, polycarbonate labels screen printing, brass signs screen printing, PVC signs embossing,3M self-adhesive stickers printing market. . . Etc.



Technical advantages

Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam,Photoshop,AI,Coreldraw; ODM & OEM.
Whether you're well prepared, running out of time or on a tight budget we can offer a solution that fits your needs.

Factory advantages

Tamprinter printing machinery group company have import and export rights and general taxpayer qualifications,Independent brand.Production, sales and service integration.

hot tags:  OEM auto screen printer.

4. Product picture group


Product Image

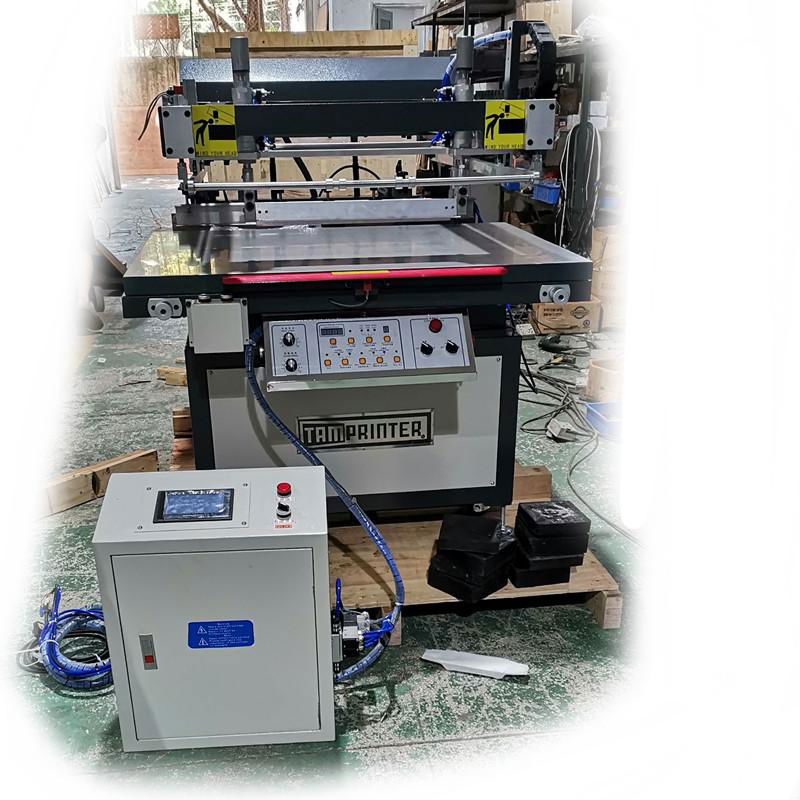

serbia auto paper screen printer shipping  photo
Img 1
UV ink automatic screen printing machine for paper 2
Img 2
UV ink automatic screen printing machine for paper 3
Img 3
UV ink automatic screen printing machine for paper 4
Img 4
UV ink automatic screen printing machine for paper 5
Img 5
UV ink automatic screen printing machine for paper 6
Img 6
UV ink automatic screen printing machine for paper 7
Img 7
UV ink automatic screen printing machine for paper 8
Img 8
UV ink automatic screen printing machine for paper 9
Img 9
UV ink automatic screen printing machine for paper 10
Img 10
UV ink automatic screen printing machine for paper 11
Img 11
UV ink automatic screen printing machine for paper 12
Img 12
UV ink automatic screen printing machine for paper 13
Img 13
UV ink automatic screen printing machine for paper 14
Img 14
