| Model: | UHZ |
|---|---|
| Brand: | AUTO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Other Electronic Instrument |
| Label: | Liquid Level Gauge , Level Gauge , Magnetic Float Gauge |
| Price: |
US $248.6
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:15 Apr, 2020 |
Magnetic Float Liquid Level Gauge (indicator) With High Quality
Description:

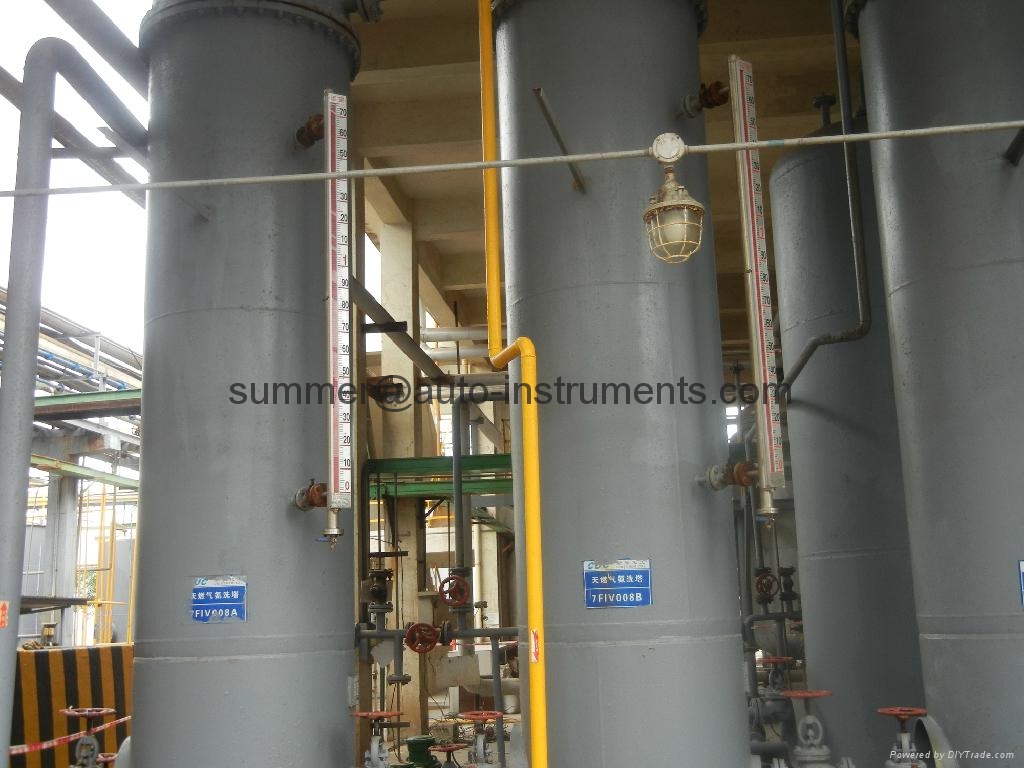

magnetic flap liquid level gauge is widely used in petroleum, chemical industry, oil field,
pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.
Technical parameters:
|
center-center distance: |
150~6000mm |
|
|
medium density: |
0.5-2.0g/cm3 |
|
|
nominal pressure: |
0.1-32.0Mpa |
|
|
material: |
304,316L,1Cr18Ni9Ti,0Cr18Ni9, 00Cr17Ni14Mo2,321, titanium alloy or customize |
|
|
Operating temperature: |
-190~ +425 °C |
|
|
process connection: |
Flange diameter DN20-DN50 |
|
|
Accuray: |
≤±10mm |
|
|
Indicate ruler: |
See page 19 |
|
|
|
A:Al &ABS flap cylinder |
|
|
|
B:Al flap plate |
|
|
|
C:PVC ABS flap cylinder |
|
|
|
D:PP&ABS flap cylinder |
|
|
|
E:AL &LED |
|
|
|
F:PP&LED |
|
|
protection class: |
IP65 |
|
|
Optional items: |
||
|
Magnetic alarm switch: |
|
|
|
|
switching state: SPST; SPDT |
|
|
|
max capacity: 20w, 60W, 120W |
|
|
|
max Voltage: 230V, 250V |
|
|
|
max current: 0.5A,1A, 2A |
|
|
|
life time: ≤1x109 |
|
|
|
protection class: IP65 |
|
|
|
explosion-proof: ExdII CT6Gb |
|
|
Transmitter: |
|
|
|
|
output signal: 4~20mADC |
|
|
|
output load:500Ω |
|
|
|
power supply:16~30VDC |
|
|
|
protection class: IP65 |
|
|
|
explosion-proof: ExiaII CT6Ga ExdII CT6Gb |
|
Product details:
Prpcess:
Package:
Our company:
Certificate:
Customers:
| Payment Terms: | T/T，Paypal |
|---|---|
