| Model: | RSM2600 |
|---|---|
| Brand: | ZETAMAK |
| Origin: | Made In Turkey |
| Category: | Services / Others |
| Label: | RIM REPAIR |
| Price: |
€2600
/ pc
|
| Min. Order: | 1 pc |
| Last Online:02 Feb, 2014 |

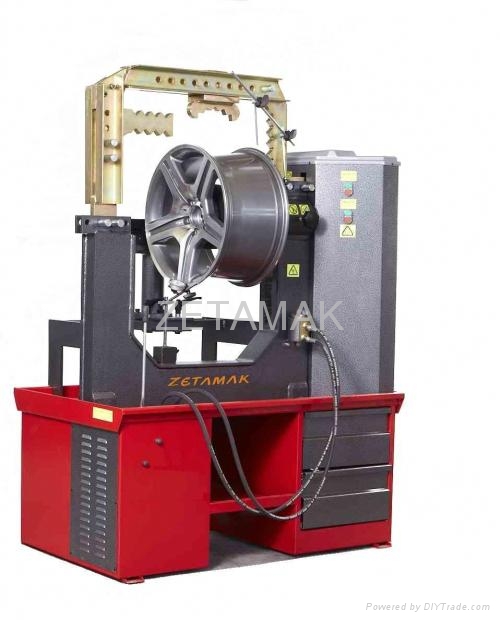

~~This unique machine is used to correct and straighten all kinds of defected steel and alloy rims
ranging from 10” to 22”. CE certified by KEMA Quality B.V. / The Netherlands
DIMENSIONS
Height 1310 mm
Length 1110 mm
Width 620 mm
Gross Weight 300 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,55 kw, 1400 rpm, 0,75Hp, 7.3 Ampere, 3 phase - single phase, 220V - 380 V
Hydraulic Motor 0,55 kw 900 rpm, 0,75Hp, 8.7 Ampere, 3 Phase - single phase, 220V - 380 V
Sound Level 35 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our RSM1800 / RSM2200 machines.
STANDARD ACCESSORIES LIST
1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 6 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 1 pcs upper support
8. 1 pcs lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
OPTIONAL ACCESSORIES LIST
1. S1, AC MOTOR DRIVE (Speed Control Unit)
2. MMP150, MAGNETIC METAL POINTER
