Product Description

YR930-4A four-channel UHF RFID reader

YR930-4A four-channel UHF RFID reader, is a conform to the EPC C1G2 (ISO18000-6 c) Double agreement standard of industrial-grade reader, with a wide working temperature range, reading performance excellence, super network stability etc., can be widely used in manufacturing and supply chain management, digital storage, commercial retail, asset management, and other fields.



Product features:
1the built-in Impinj R2000 chip, fully tap potential R2000 chip;
2
use the advanced anti-jamming and prevent  collision DRM algorithm, support tag processing more than 500 per second;
3
identify distance up to 35 metres, speeds of up to 120 km/hour
4
high sensitivity;
5
high reliability design, the integration of high strength aluminum fuselage, r ed industrial platform;
6
low-power design, significantly reduce energy consumption;
7
after repeated optimization, internal software, provide the fastest running efficiency and the most exploited connector;
8
enhanced multiple protection circuit, provide comprehensive protection.

Physical parameters:
Size: 280*180*46mm
Weight: 1 kg

material: aluminum alloy


Environmental parameters:
operating temperature: - 20 ~ + 55
Storage temperature: - 20 ~ + 85
operating humidity: < 95% (+ 25 )


property parameters:
RFID chips: Impinj R2000
operating Frequency(MHZ):

the United States, 902-928
European 865.6 867.6
China's 920-925
The air interface protocol: EPC Global Class 1 Gen2 / ISO18000-6 c
Read distance: 0-35 meters
TNC rf connector: four route connector
Channel segregation degree: > 30 db
Output power: 30 DBM
Receiving sensitivity: < - 85 DBM
Communication interface: Ethernet: 10/100 base-t Ethernet (RJ45)
Serial: RS - 232 Console (DB9)
Label rate: > 500 / SEC
Label RSSI: support
Antenna connection protection: support
Work style: single (intensive)
Maximum power consumption: < 7 w (RF output 30 DBM)
heat-dissipating method: air cooling

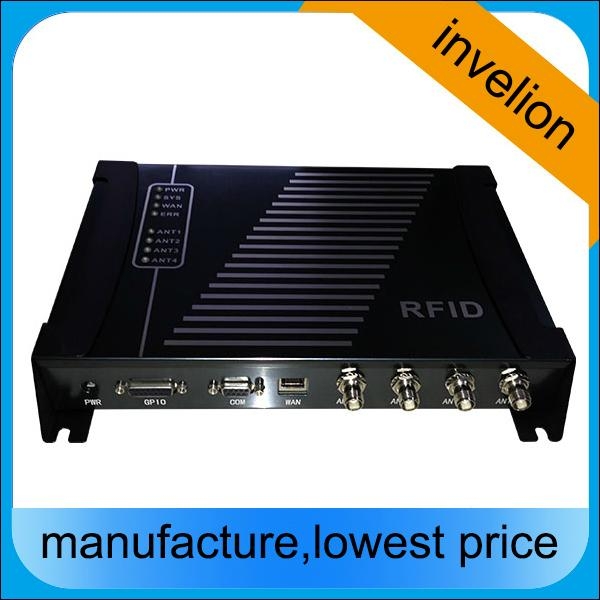

Product Image

four-channel UHF RFID reader 1
Img 1
